ABS Modulator-Control Unit Removal and Installation: Removal

Turn the ignition switch OFF.
Pull up the lock (A) of the ABS control unit 31P connector (B), then disconnect the connector.

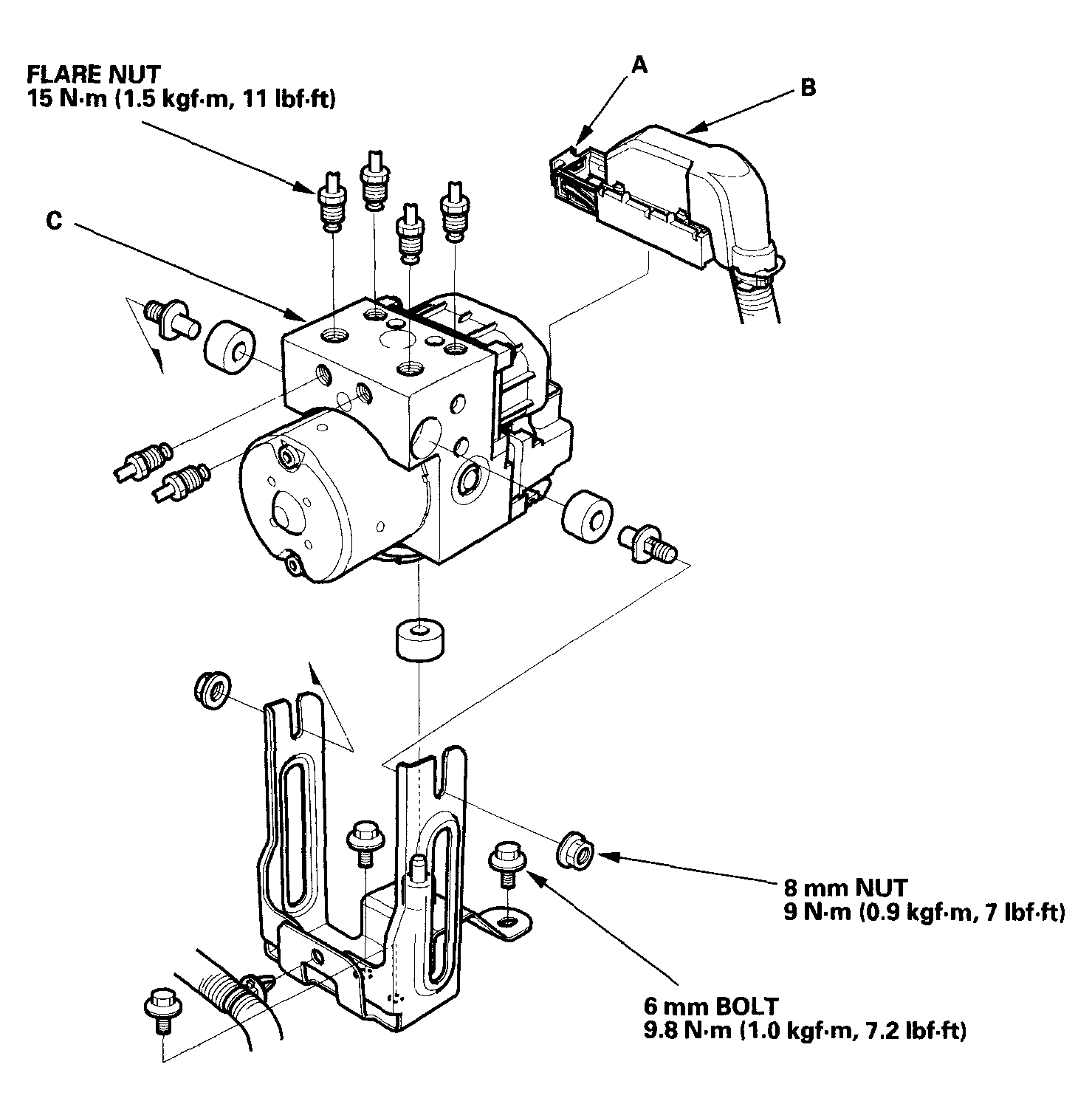

Fig 1: Pulling Up Lock (A) Of ABS Control Unit 31P Connector (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the six brake lines from the ABS modulator-control unit (C).
Remove the two 8 mm nuts.
Remove the ABS modulator-control unit.
