Horn Test/Replacement
- Remove the front bumper (see
FRONT BUMPER REMOVAL/INSTALLATION
).

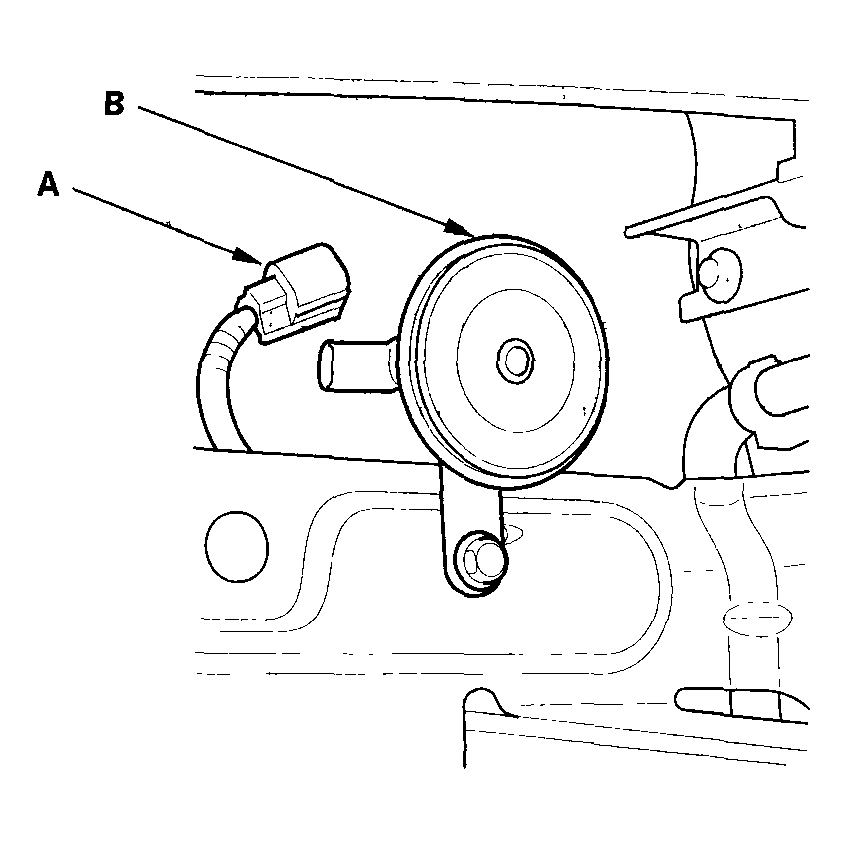

- Disconnect the 1P connector (A) from each horn (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the mounting bolt and horn.

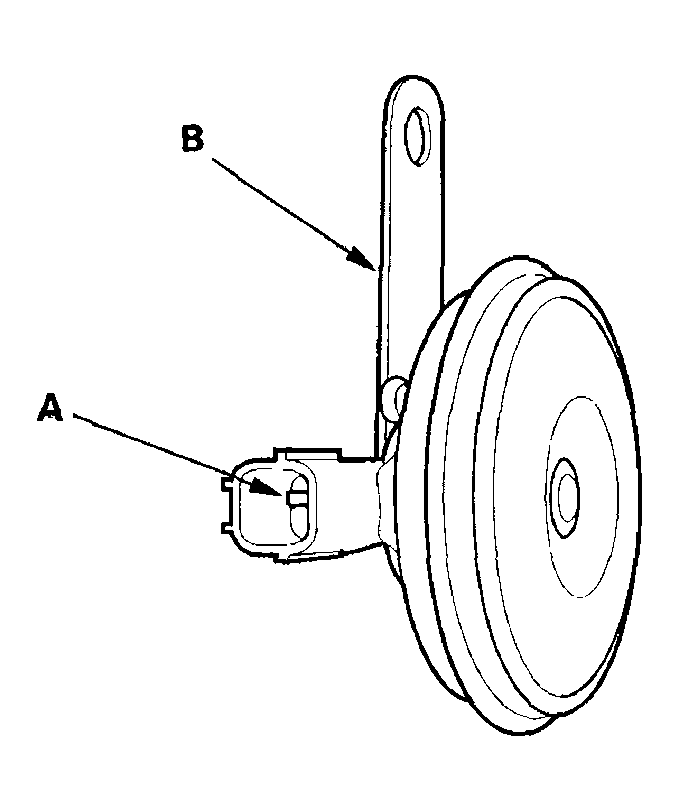

- Test each horn by connecting battery power to the terminal (A) and grounding the bracket (B). The horn should sound.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If it fails to sound, replace it.
