Exploded View

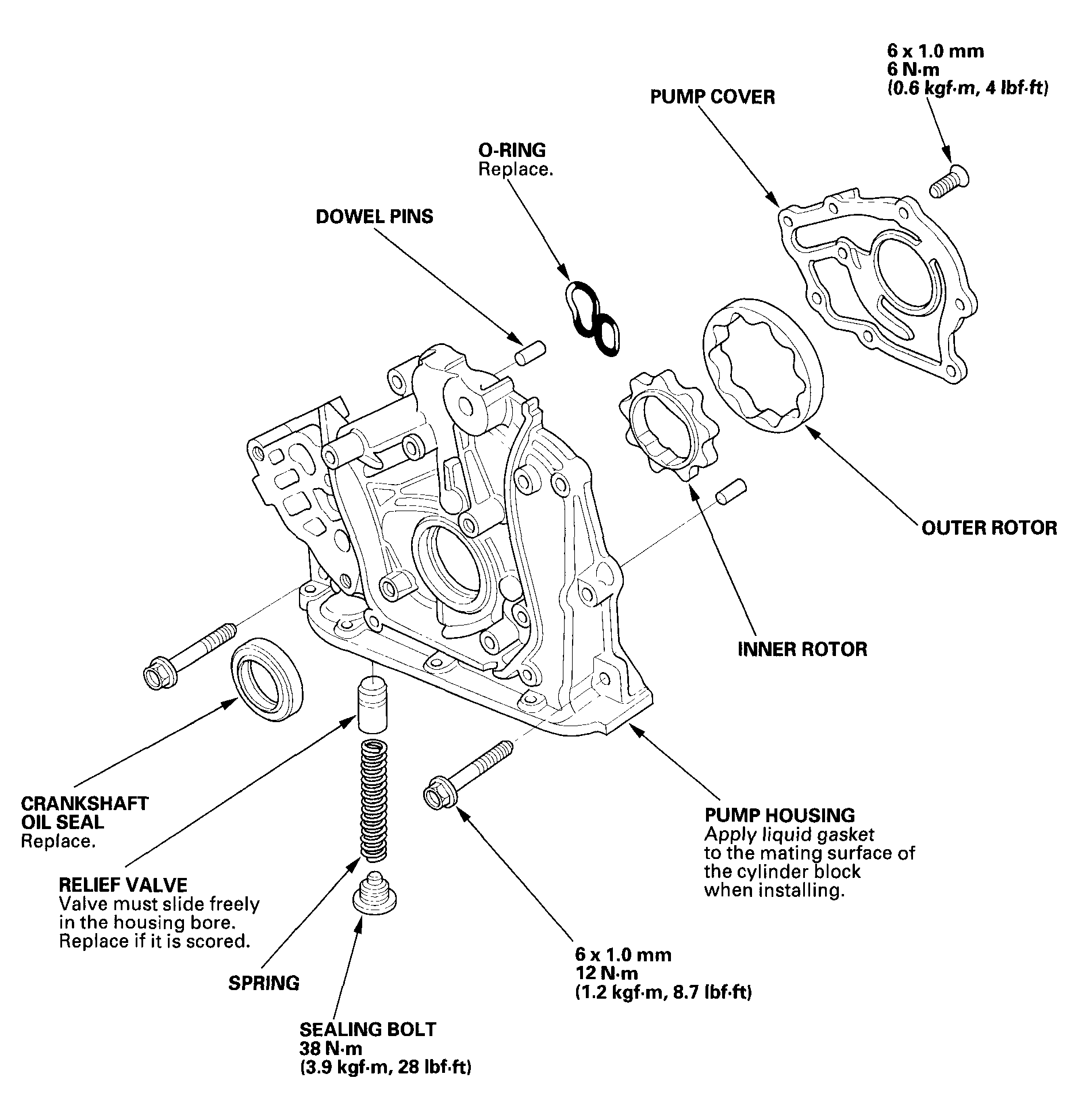

Fig 1: Exploded View Of Oil Pump
G04545782Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Oil seal driver, 64 mm 070AD-RCAA100
