EVAP Canister Purge Valve Replacement

Remove the intake manifold cover (see step 1 on IGNITION COIL REMOVAL/INSTALLATION )
Disconnect the hoses (A) and the EVAP canister purge valve 2P connector (B).

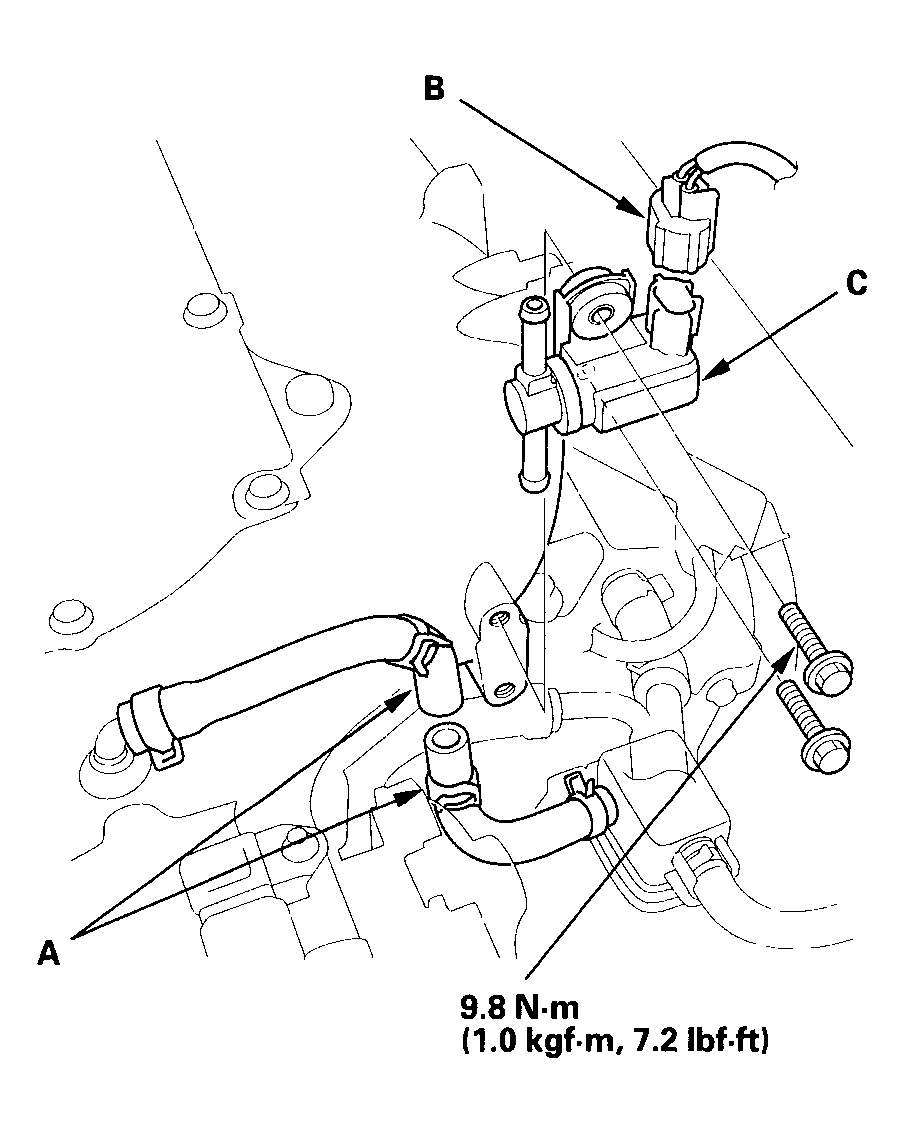

Fig 1: Disconnecting Hoses And EVAP Canister Purge Valve 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister purge valve (C).
Install the valve in the reverse order of removal.
