EVAP Canister Vent Shut Valve Replacement
- Remove the EVAP canister (see EVAP CANISTER REPLACEMENT
).

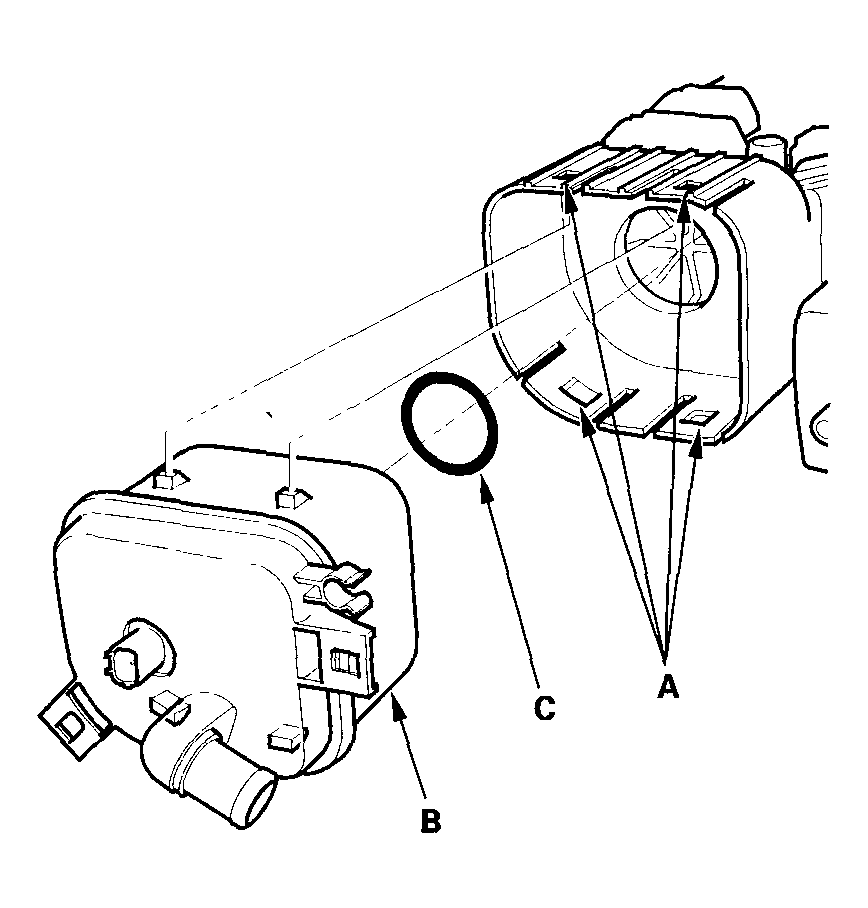

- Open the stopper (A) and then remove the EVAP canister vent shut valve (B).
NOTE:
Be careful not to damage the lock tabs.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the valve in the reverse order of removal with a new O-ring (C).
NOTE:
Do not coat the O-ring with oil.
