Fuel Line Inspection

Check the fuel system lines, and hoses for damage, leaks, and deterioration. Replace any damaged parts.

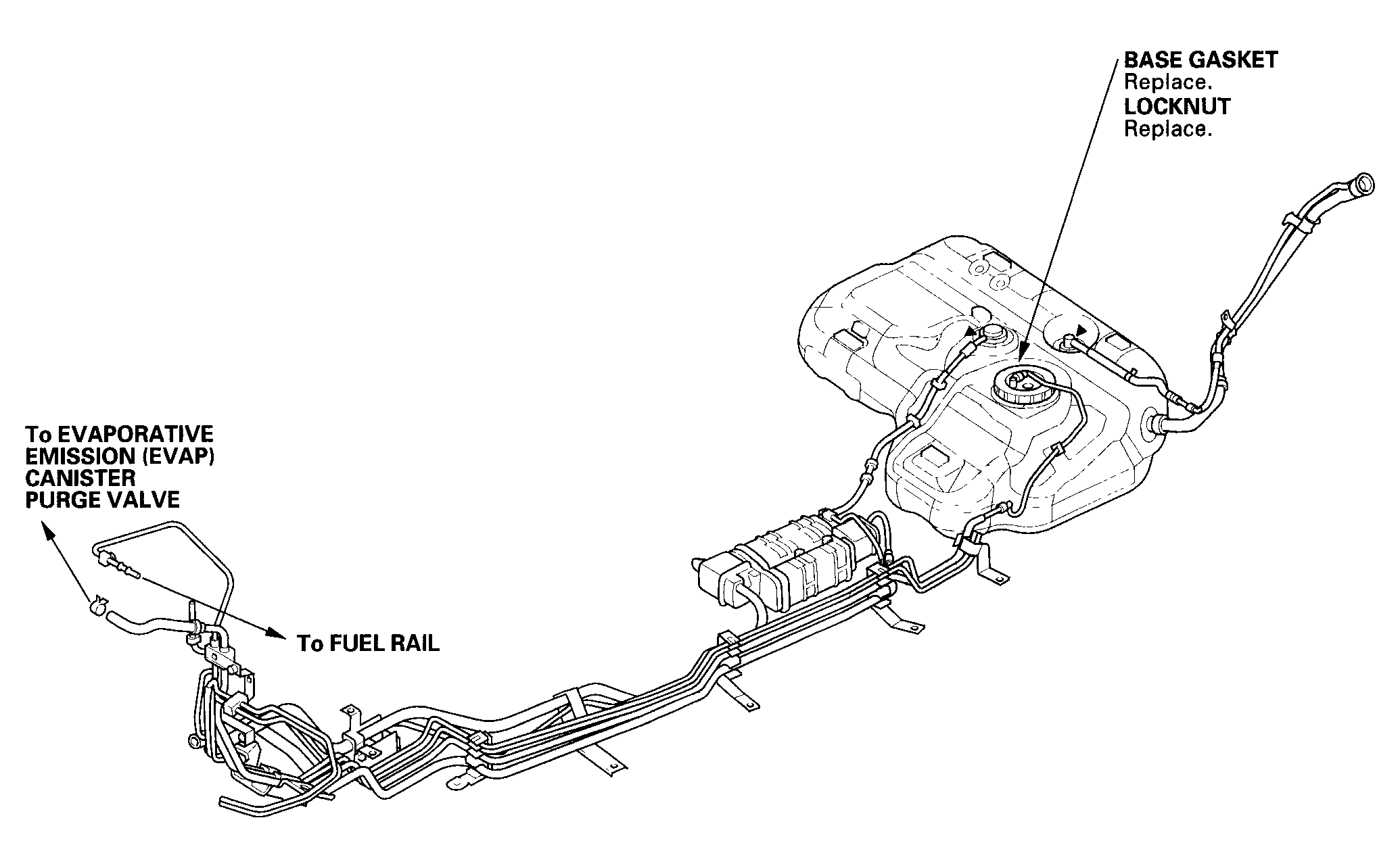

Fig 1: Checking Fuel System Lines, And Hoses

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps and retighten if necessary.

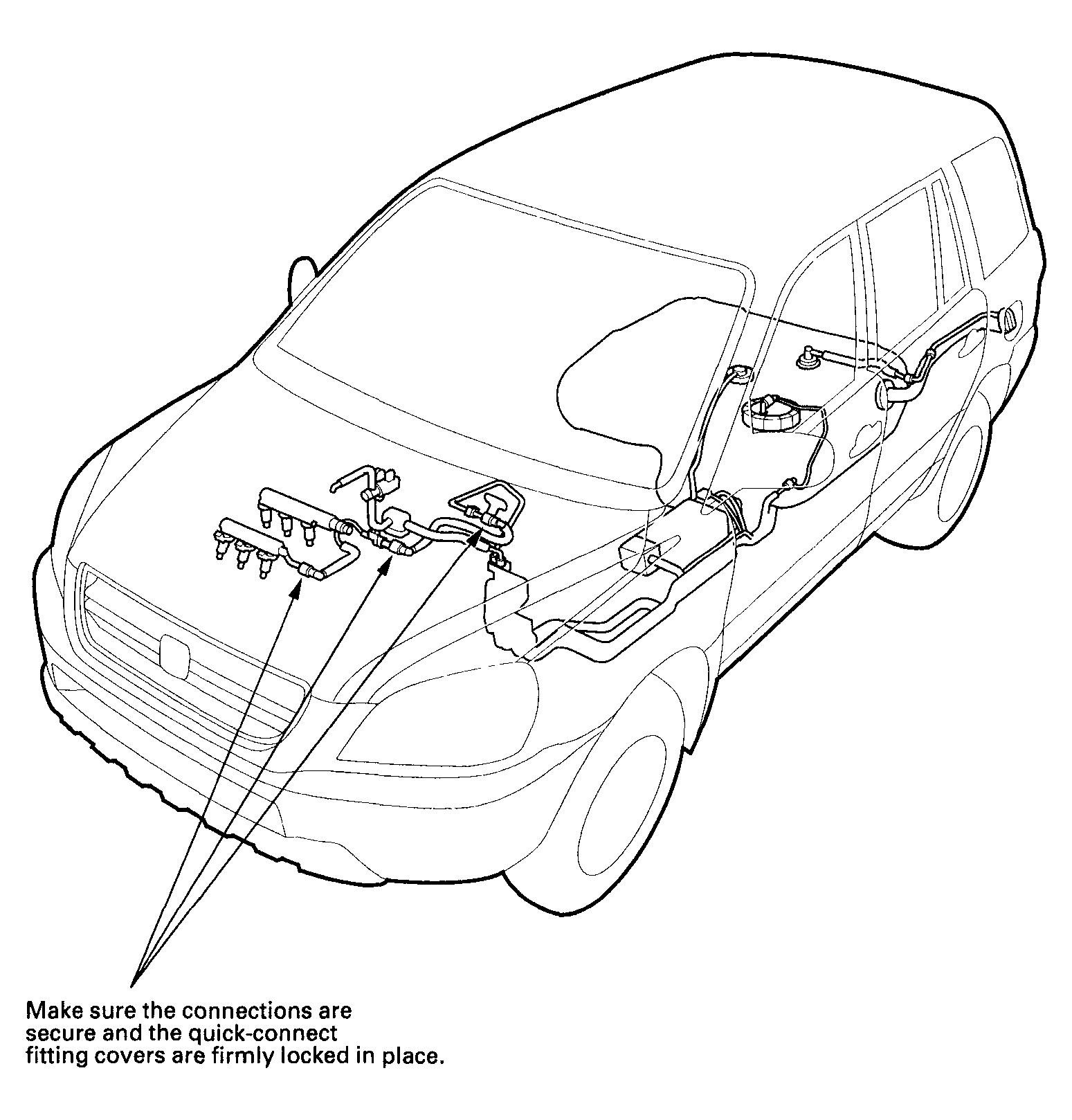

Fig 2: Checking Clamps

Courtesy of AMERICAN HONDA MOTOR CO., INC.
