Fuel Pump/Fuel Gauge Sending Unit Replacement
- Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL/INSTALLATION ).

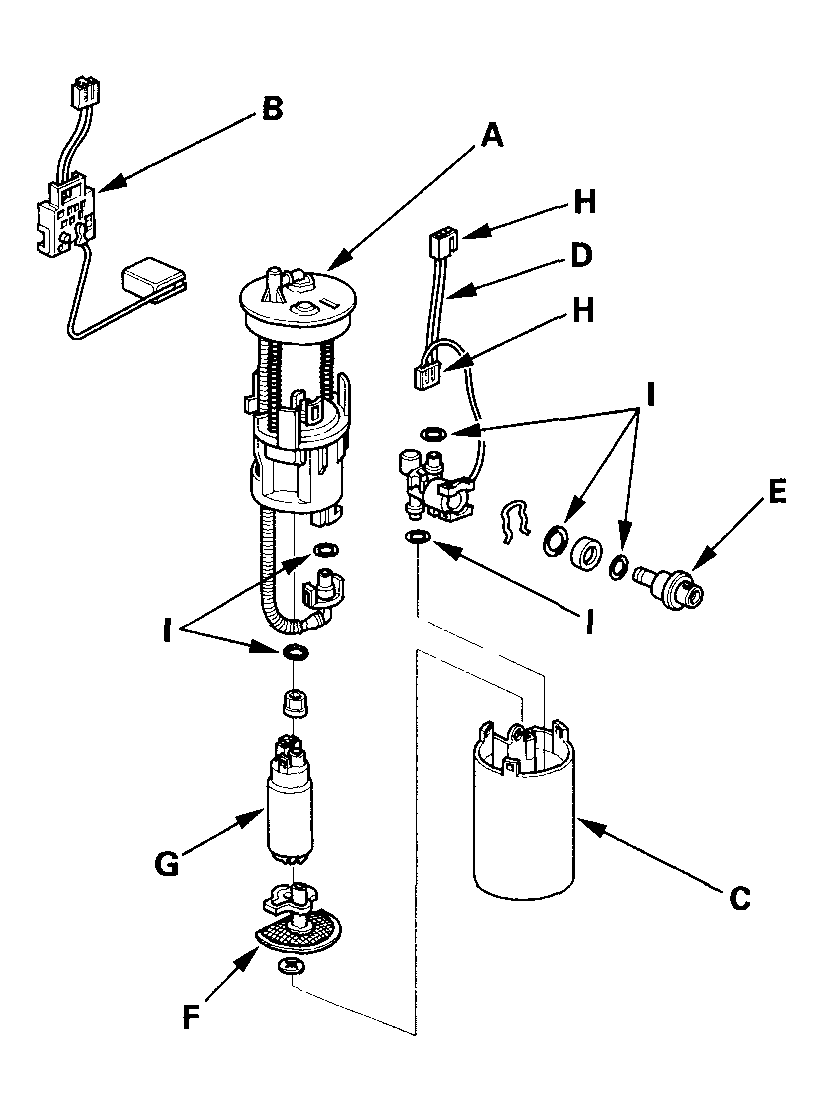

- Remove the fuel filter (A), the fuel level sensor (fuel gauge sending unit) (B), the case (C), the wire harness (D), and the fuel pressure regulator (E).
- When connecting the fuel pump assembly, make sure the connection is secure and the suction filter (F) is firmly connected to the fuel pump (G).
- Check these items before installing the fuel tank unit:
- When connecting the wire harness, make sure the connection is secure and the connectors (H) is firmly locked into place.
- When installing the fuel gauge sending unit, make sure the connection is secure and the connector is firmly locked into place. Be careful not to bend or twist it excessively.
- Install the part in the reverse order of removal with new O-rings (I). When installing the fuel tank unit, align the marks on the unit and the fuel tank (see FUEL TANK UNIT REMOVAL/INSTALLATION
).NOTE: Coat the O-ring with clean engine oil.
