Climate Control Unit Removal and Installation

Remove the center panel (see DRIVER'S SWITCH PANEL REMOVAL/INSTALLATION ).

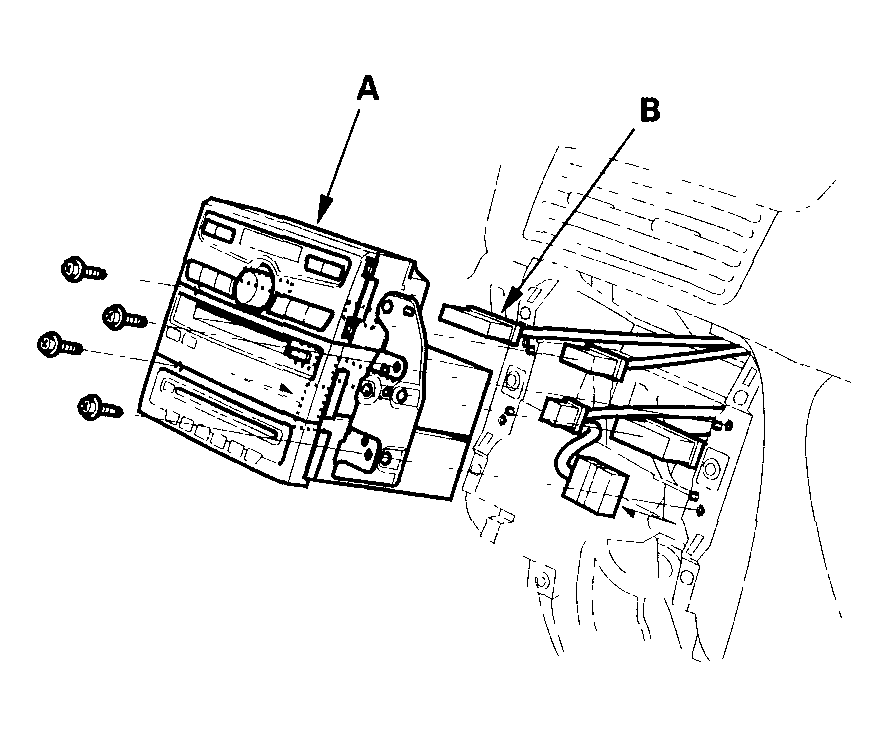

Remove the screws, and remove the climate control unit (A) with the brackets from the dashboard, then disconnect the connectors (B).

Fig 1: Removing Climate Control Unit With Brackets From Dashboard And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

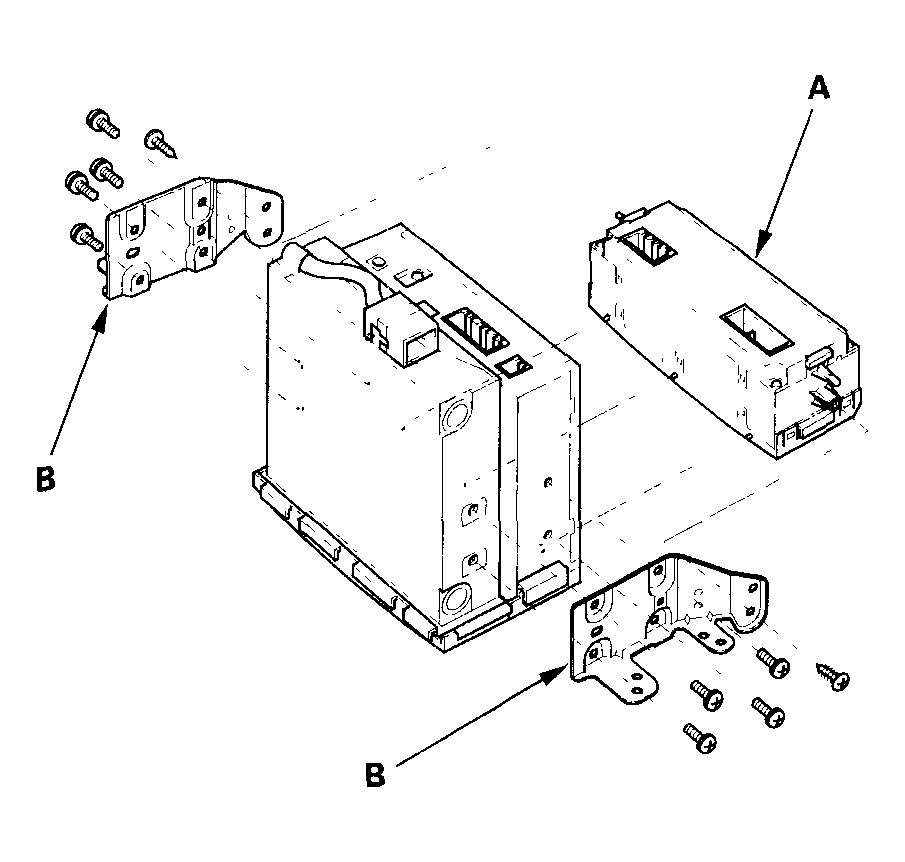

Remove the screws and the climate control unit (A) from the brackets (B).

Fig 2: Removing Screws And Climate Control Unit From Brackets
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the control unit in the reverse order of removal. After installation, operate the control unit controls to see whether it works properly.
Run the self-diagnostic function to confirm that there are no problems in the system (see GENERAL TROUBLESHOOTING INFORMATION ).
