Fuel Tank Unit Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel Tank Unit Connector End View

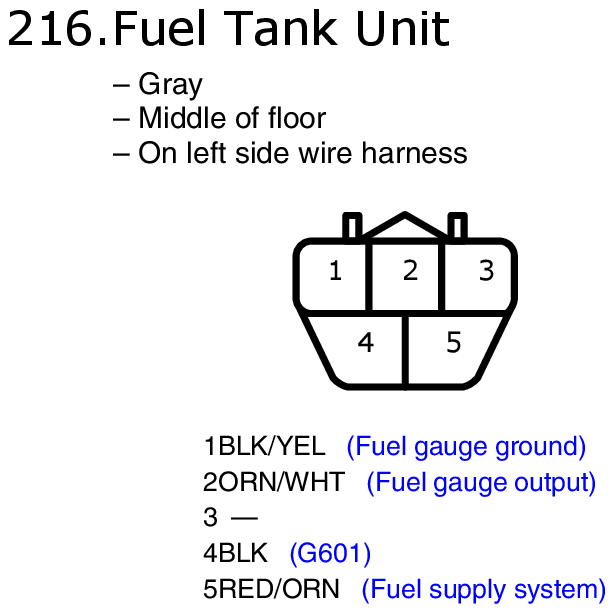

Fig 1: Fuel Tank Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
