Rearview Camera Control Unit (EX-L: Navigation (Honda Accessory)) Connector End View

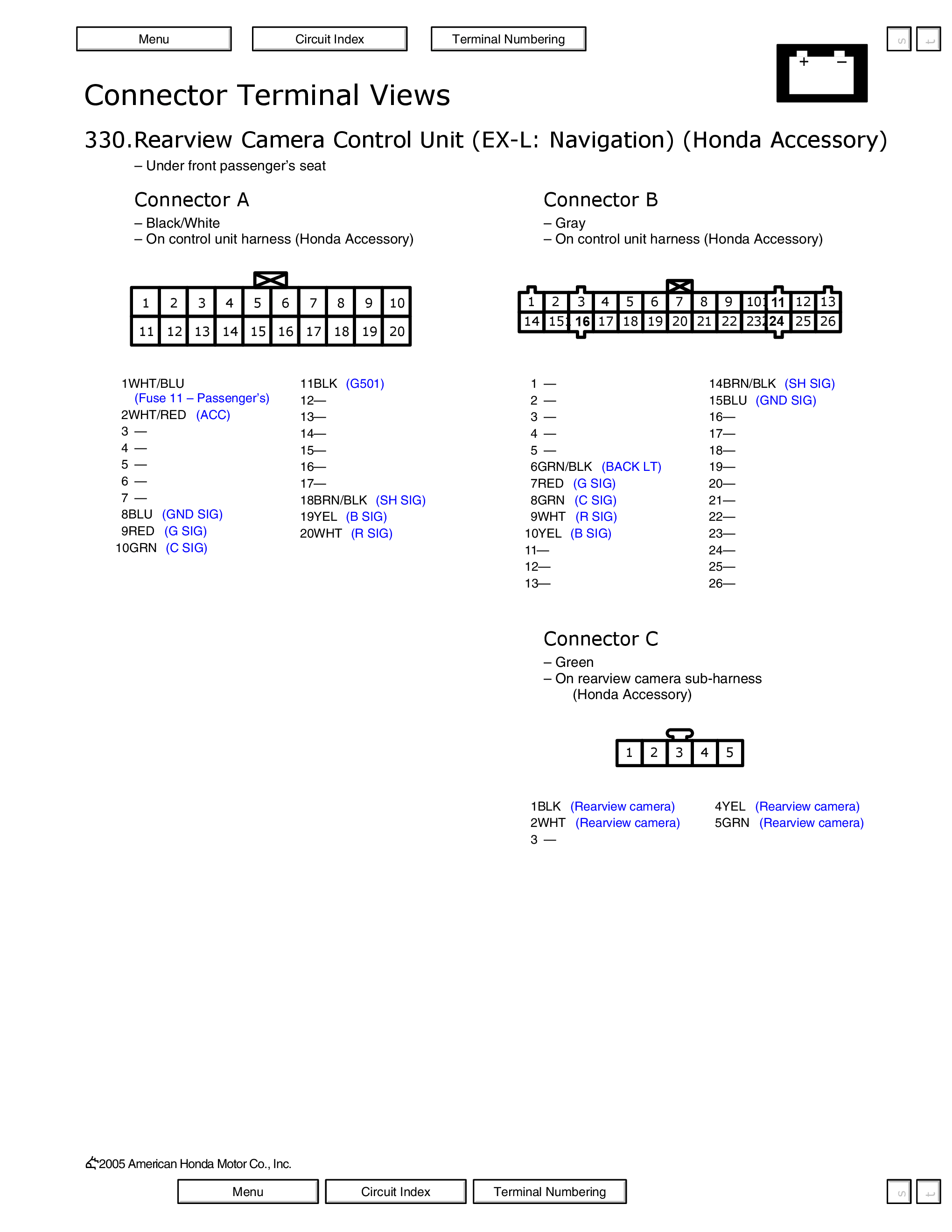

Fig 1: Rearview Camera Control Unit (EX-L: Navigation (Honda Accessory)) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
