TCS Features

The TCS provides low-speed traction. When a drive wheel loses traction on a slippery road surface and starts to spin, the VSA modulator-control unit applies brake pressure to slow the spinning wheel. At that time, the VSA control unit sends a traction control signal to the PCM to reduce engine power.

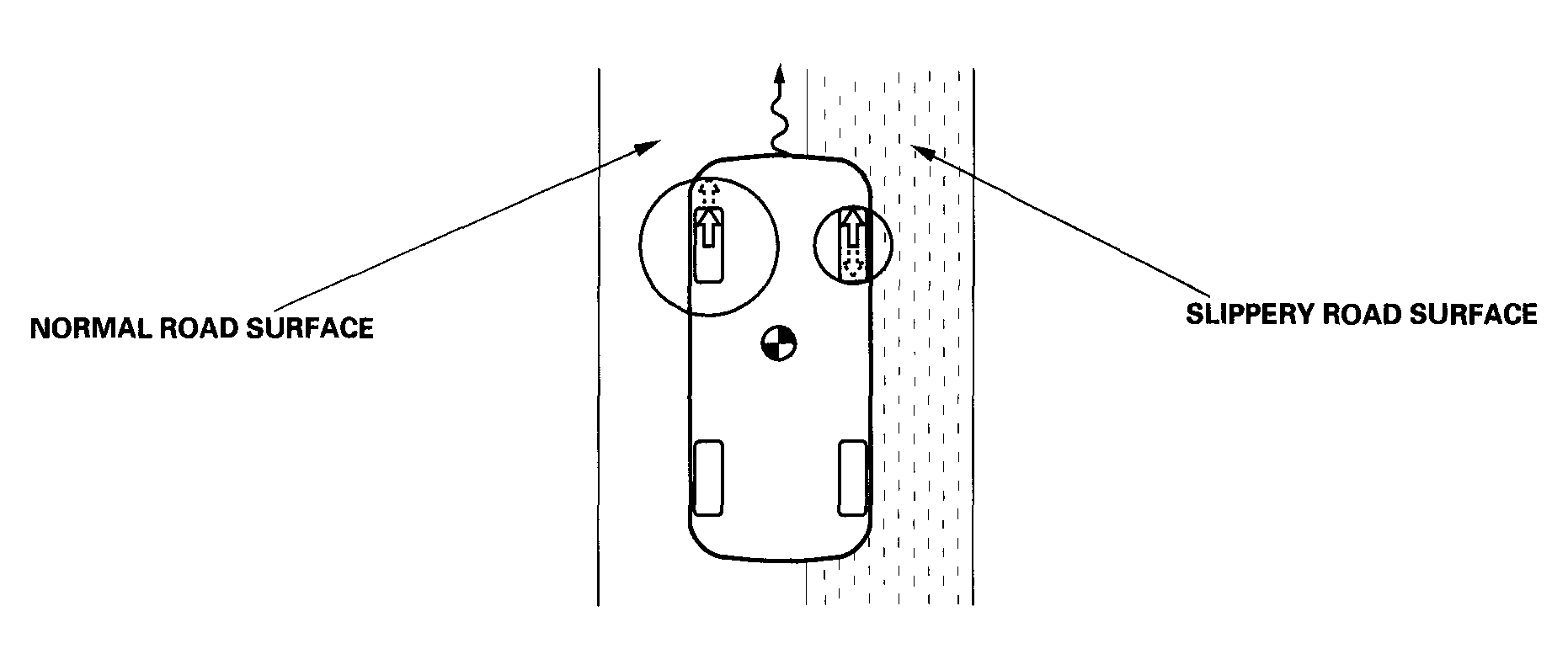

Fig 1: Identifying Slippery Road Surface
G04547467Courtesy of AMERICAN HONDA MOTOR CO., INC.
