Yaw Rate-Lateral Acceleration Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use an impact wrench.
  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Disconnect the connector (A).

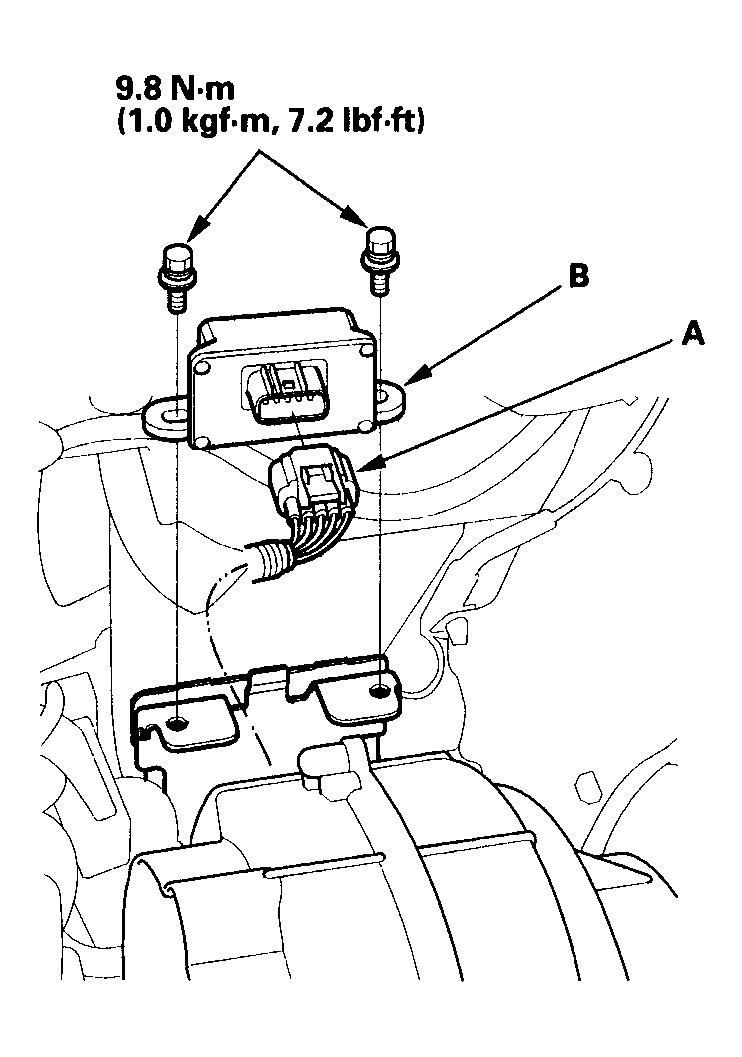

    Fig 1: Disconnecting Connector (A)
    G04547531Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the yaw rate-lateral acceleration sensor (B).
  4. Install the sensor in the reverse order of removal.
