Impact Sensor

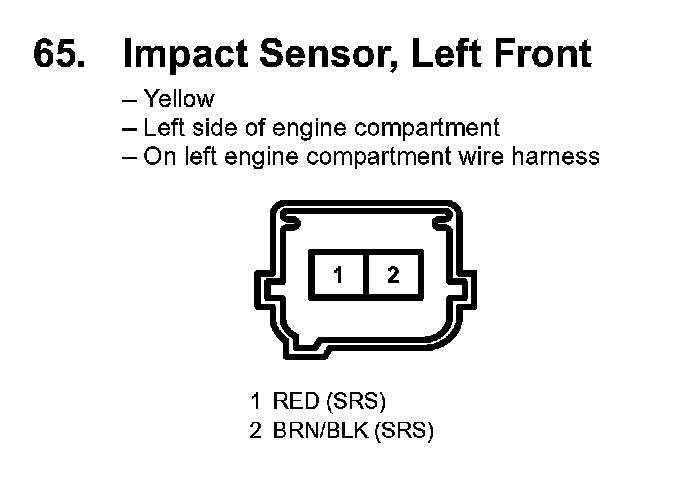

65. Impact Sensor, Left Front:

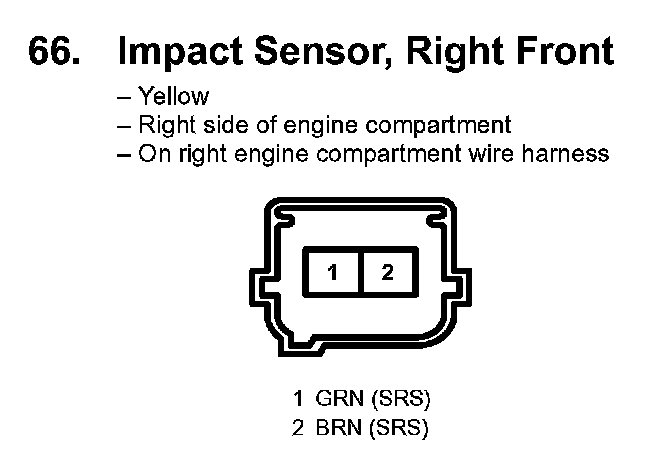

66. Impact Sensor, Right Front:

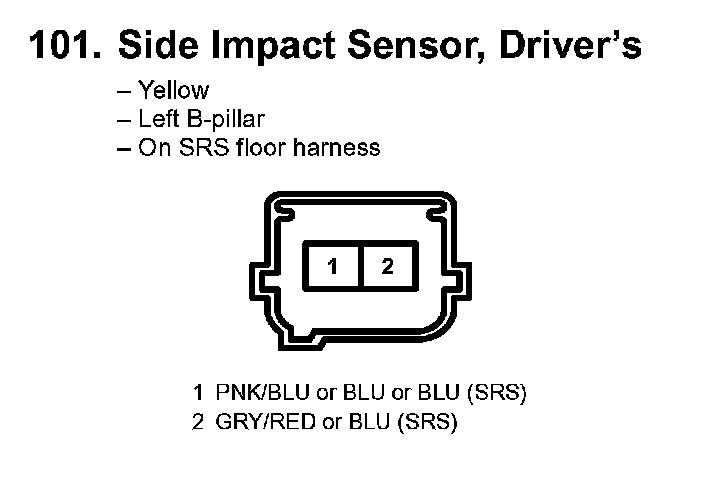

101. Side Impact Sensor, Driver's:

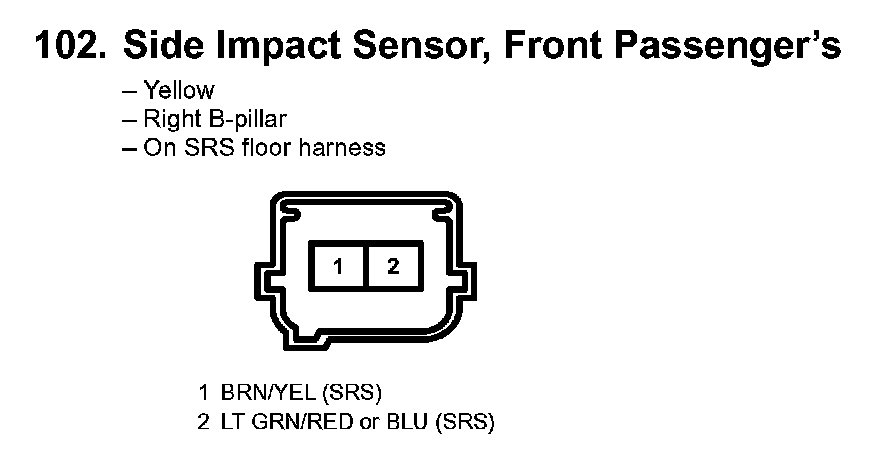

102. Side Impact Sensor, Front Passenger's:
