Multiple Junction Connector

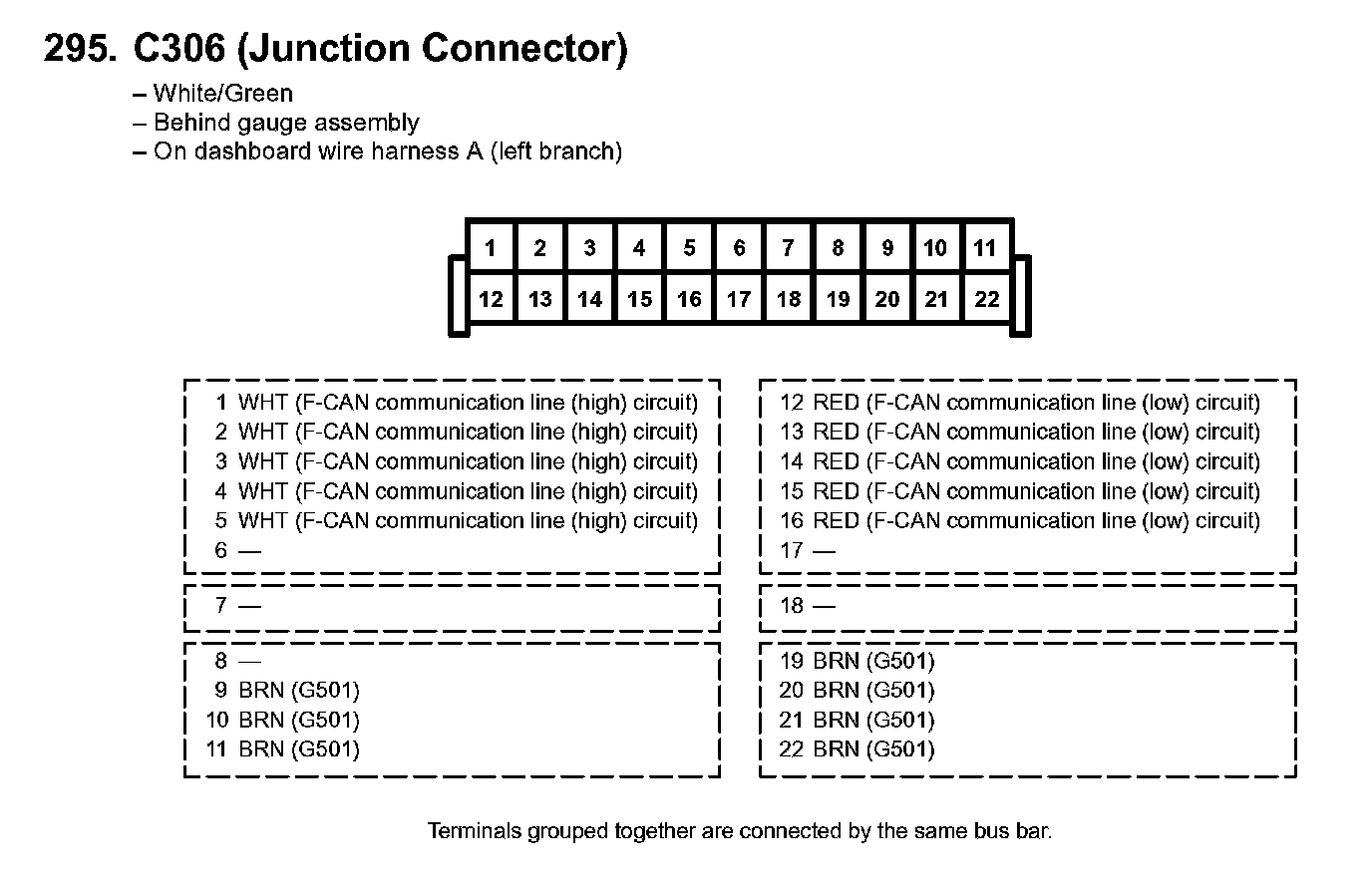

295. C306 (Junction Connector):

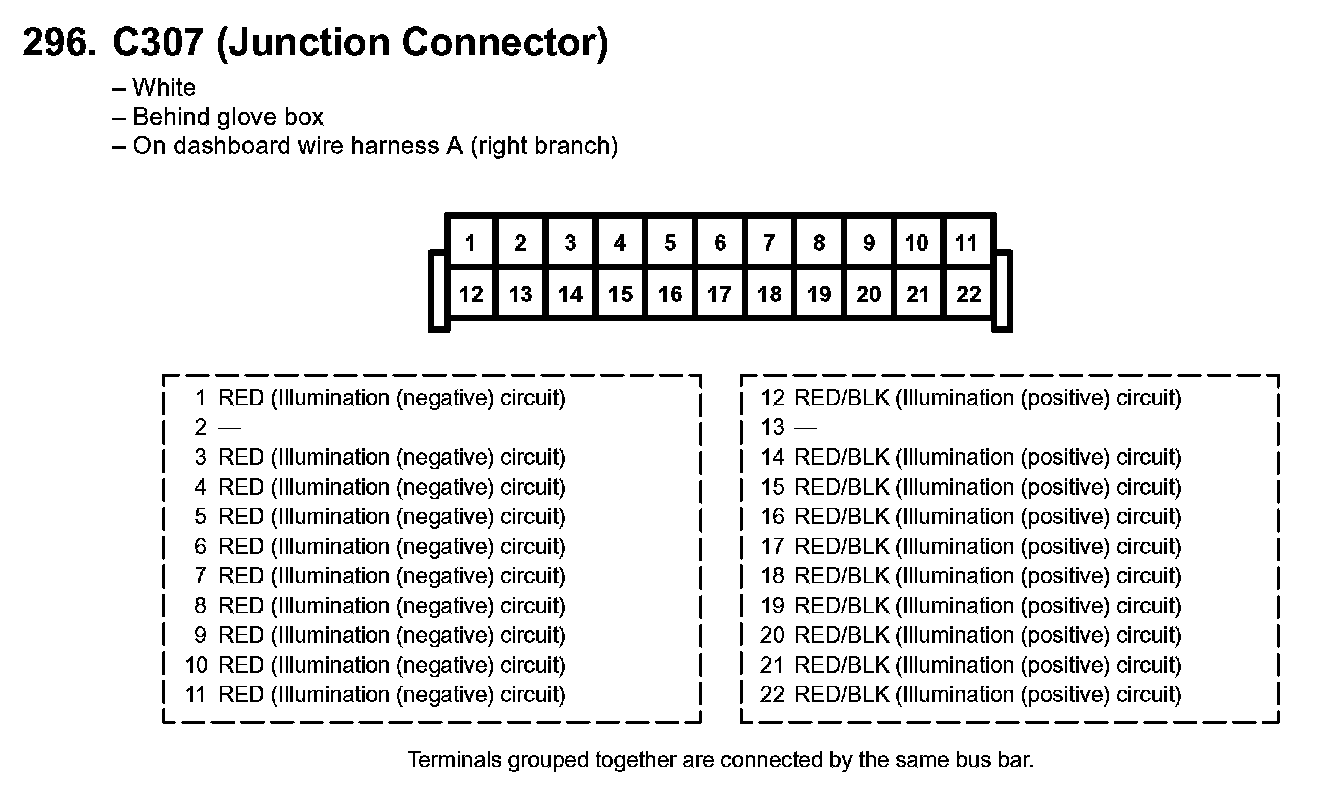

296. C307 (Junction Connector):

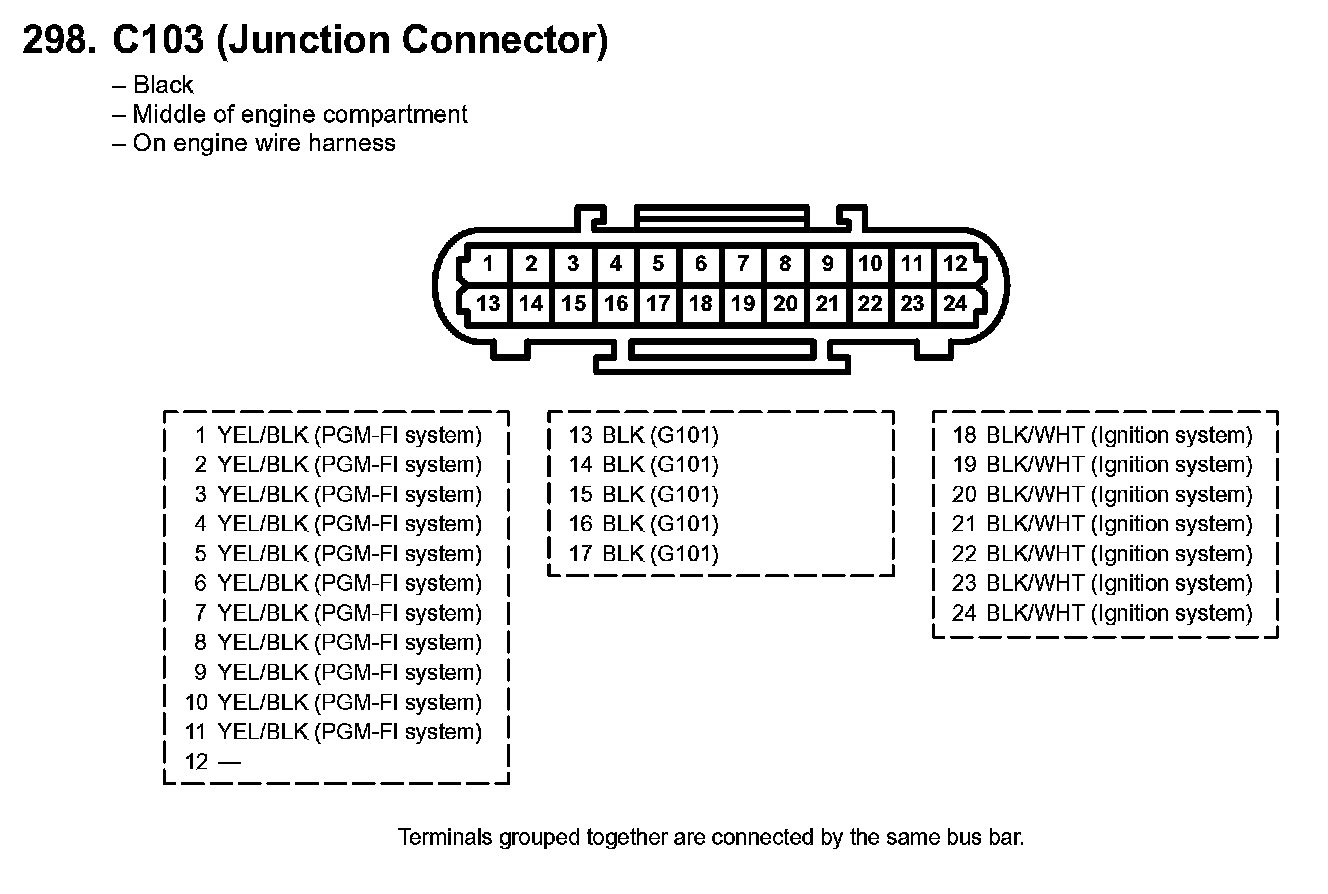

298. C103 (Junction Connector):

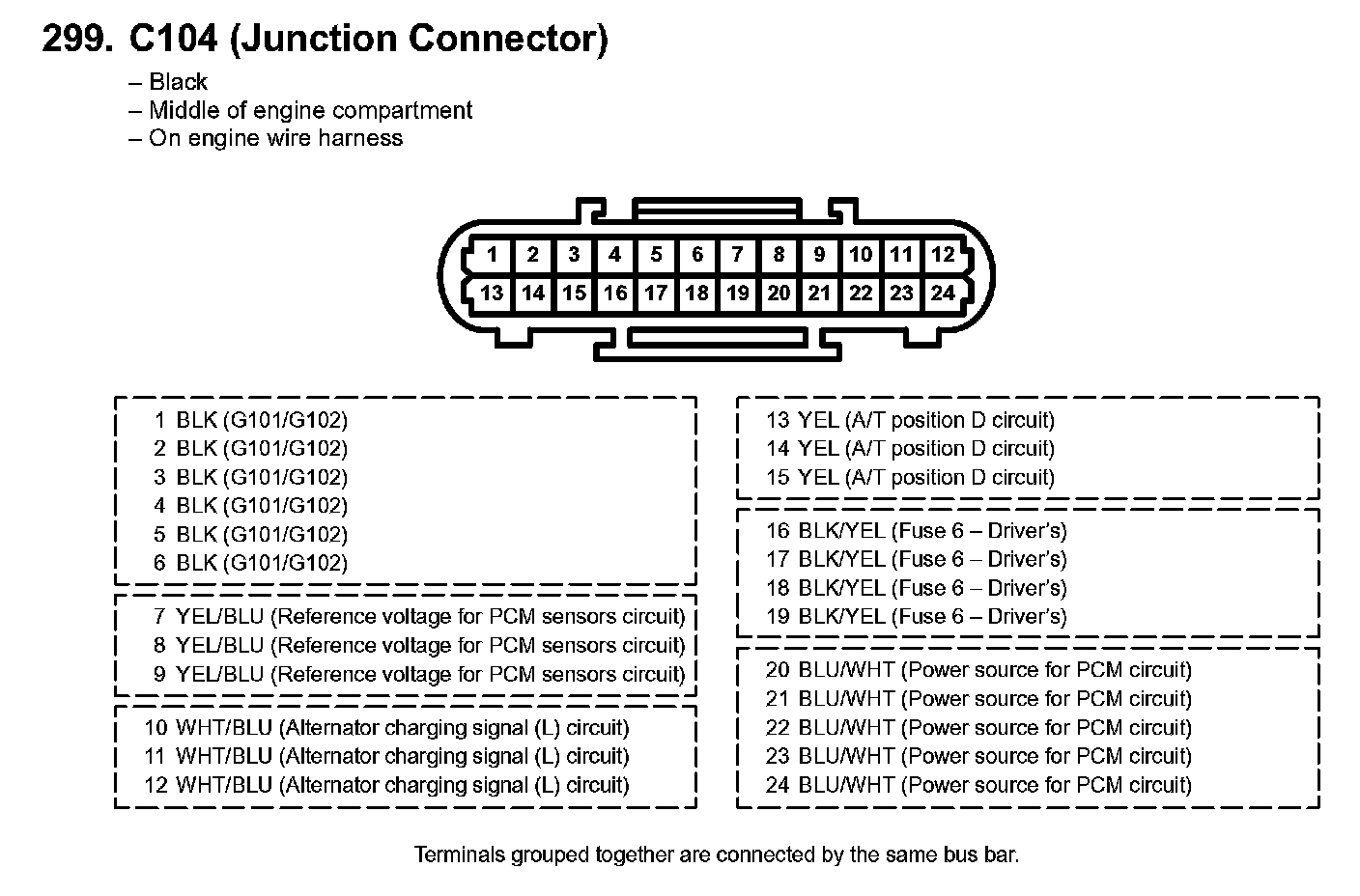

299. C104 (Junction Connector):

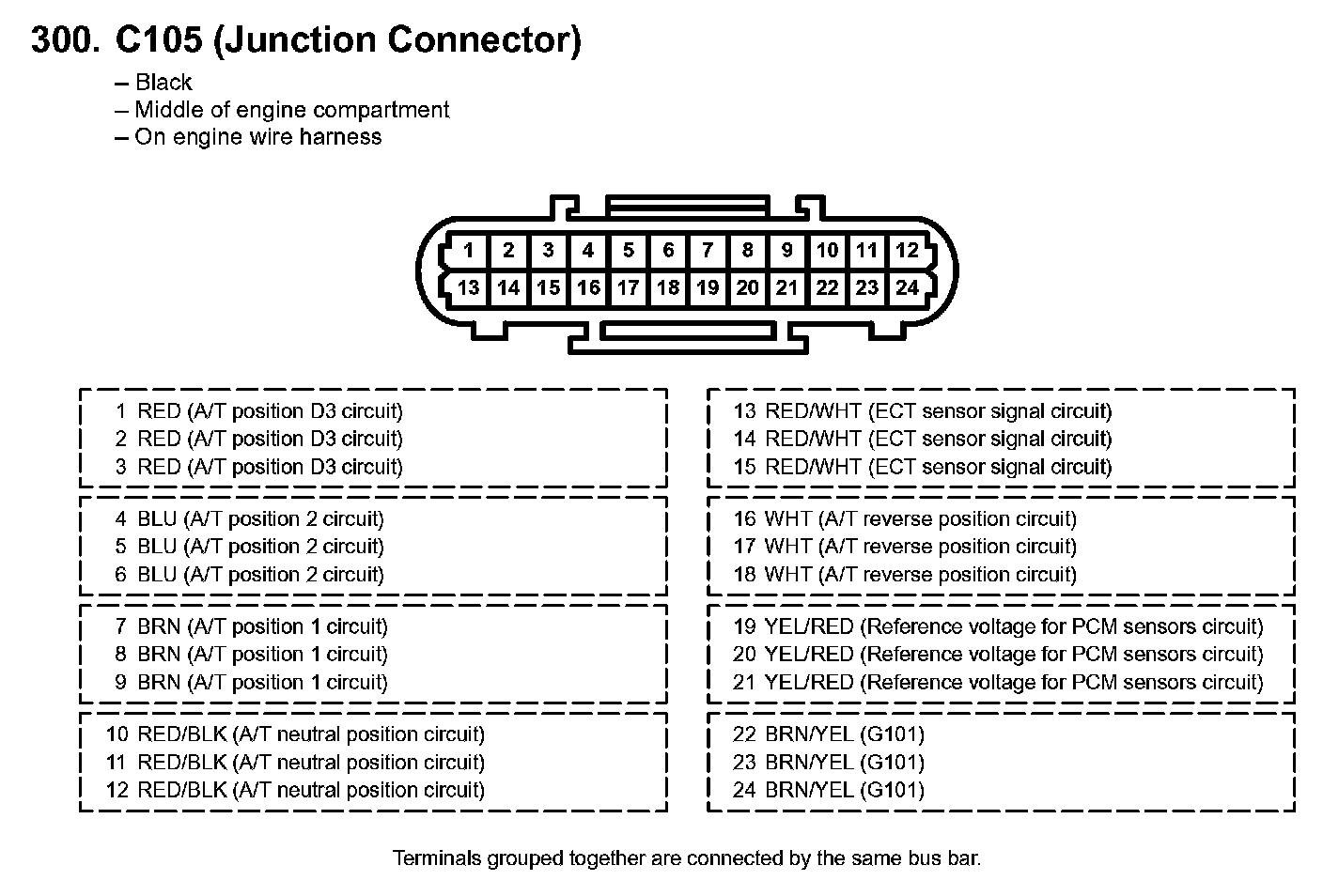

300. C105 (Junction Connector):
