Inputs and Outputs For Connectors

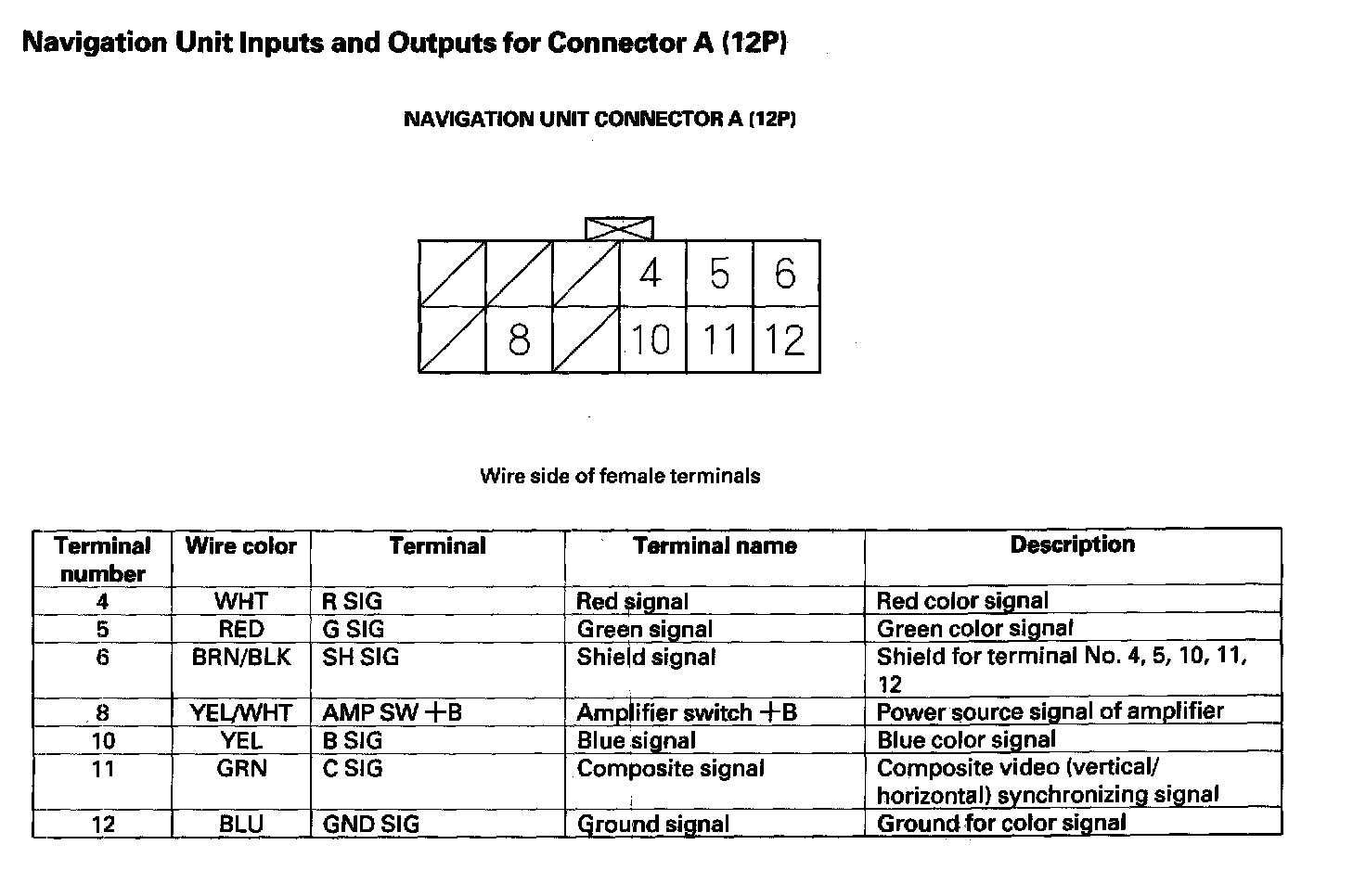

Navigation Unit Inputs And Outputs For Connector A (12P) Part 1:



Navigation Unit Inputs And Outputs For Connector A (12P) Part 2:

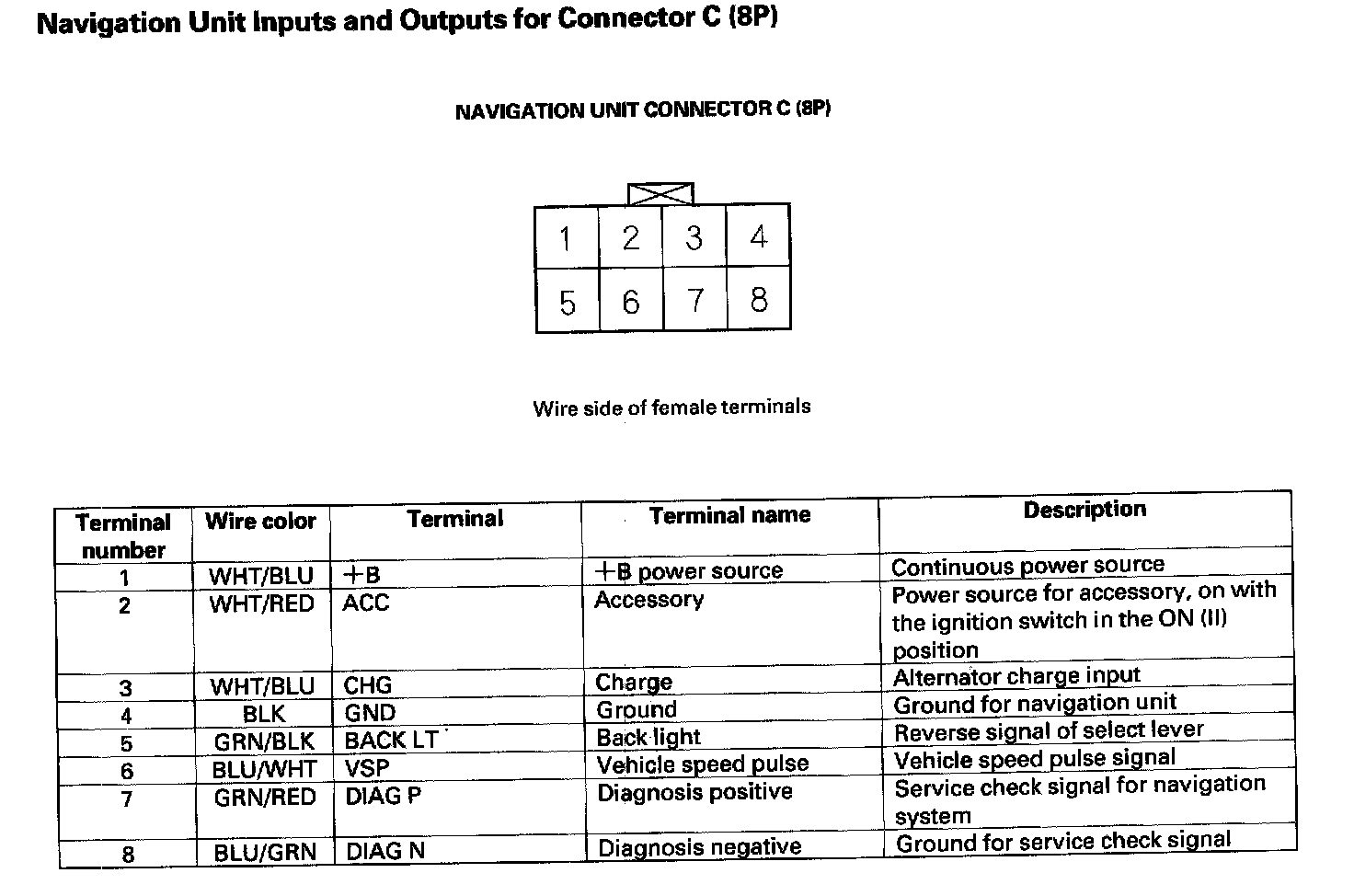

Navigation Unit Inputs And Outputs For Connector C (8P):



Navigation Unit Inputs And Outputs For Connector B (20P):
