Power Window Switch

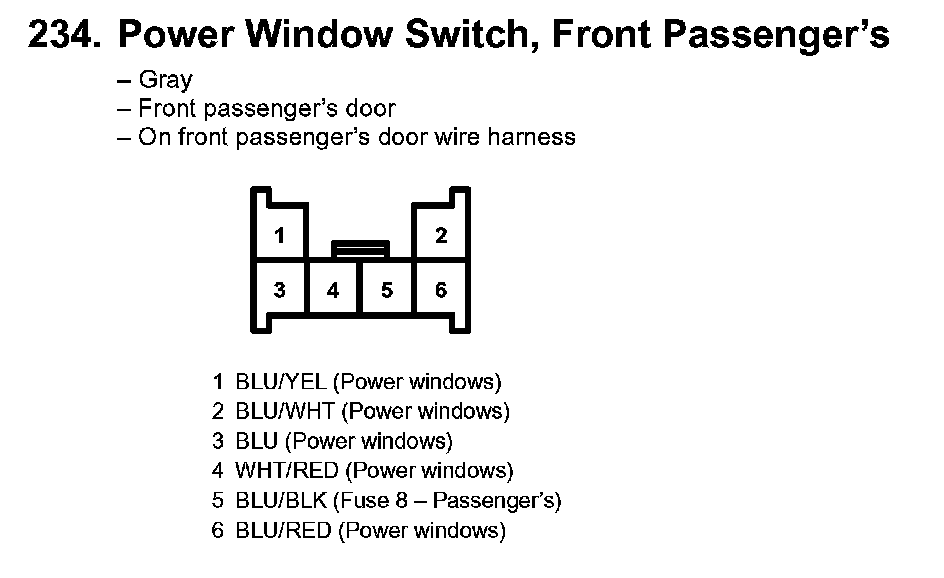

234. Power Window Switch, Front Passenger's:

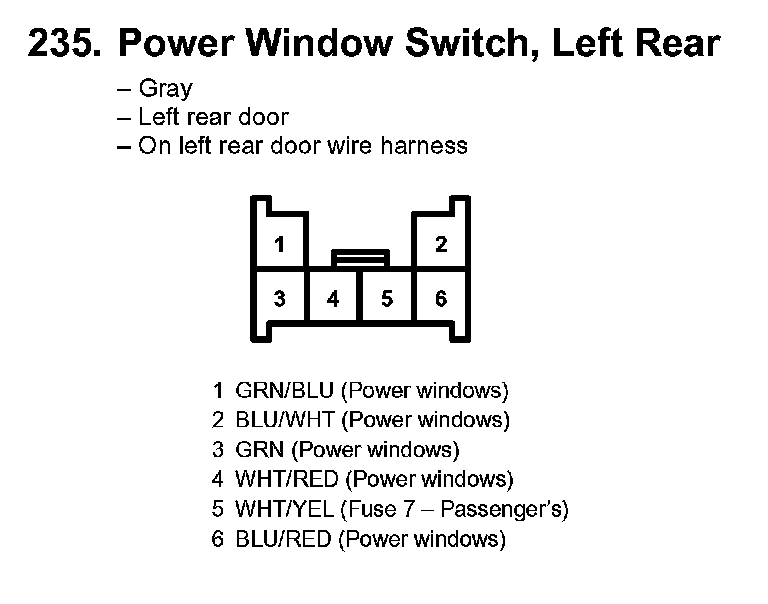

235. Power Window Switch, Left Rear:

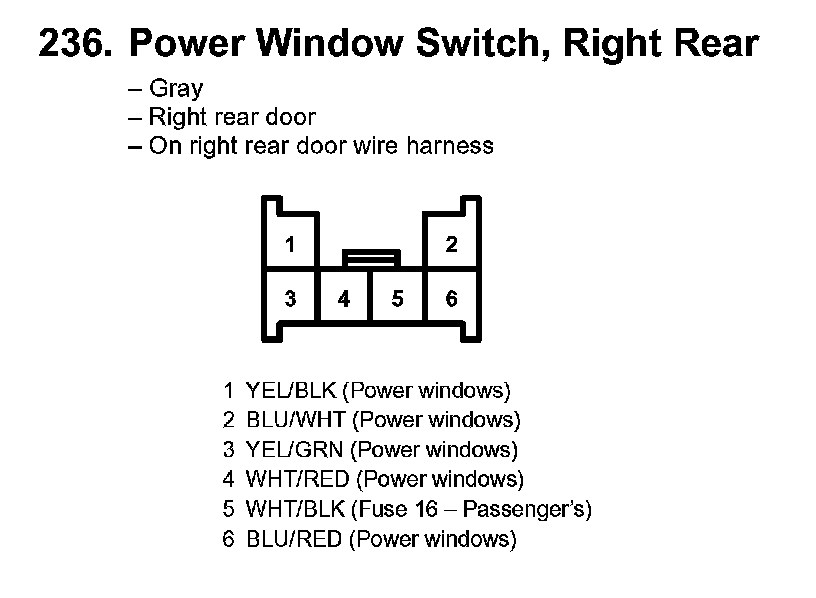

236. Power Window Switch, Right Rear:
