Seat Temperature Switch

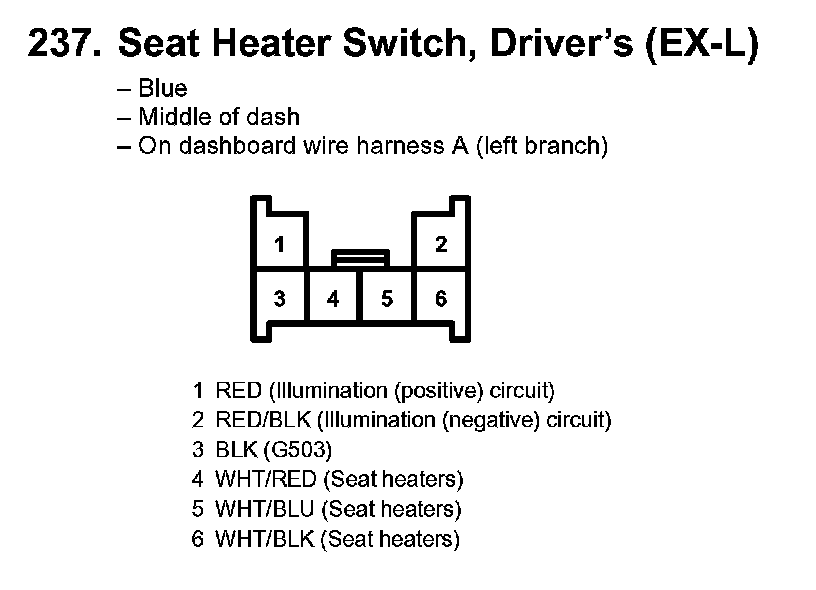

237. Seat Heater Switch, Driver's (EX-L):

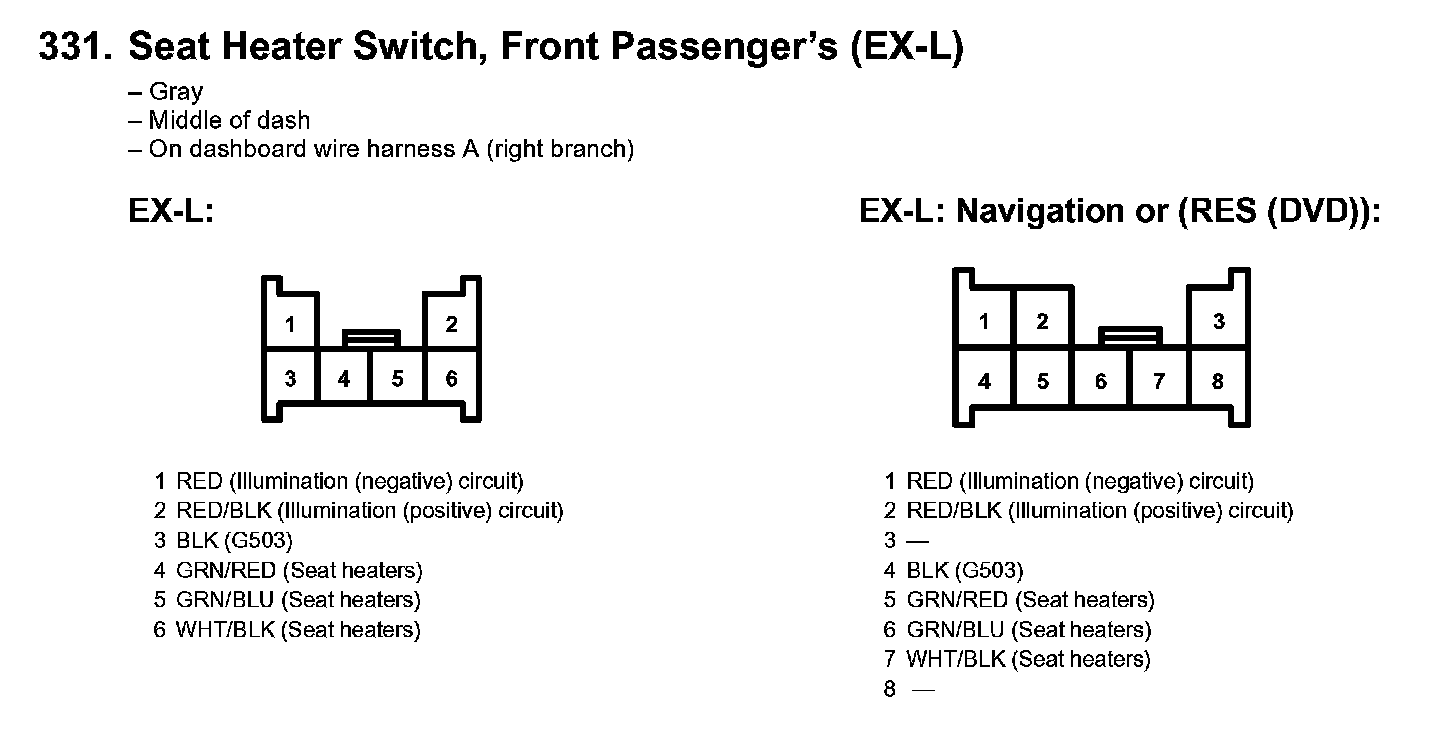

331. Seat Heater Switch, Front Passenger's (EX-L):
