Refrigerant Pressure Sensor / Switch: Locations

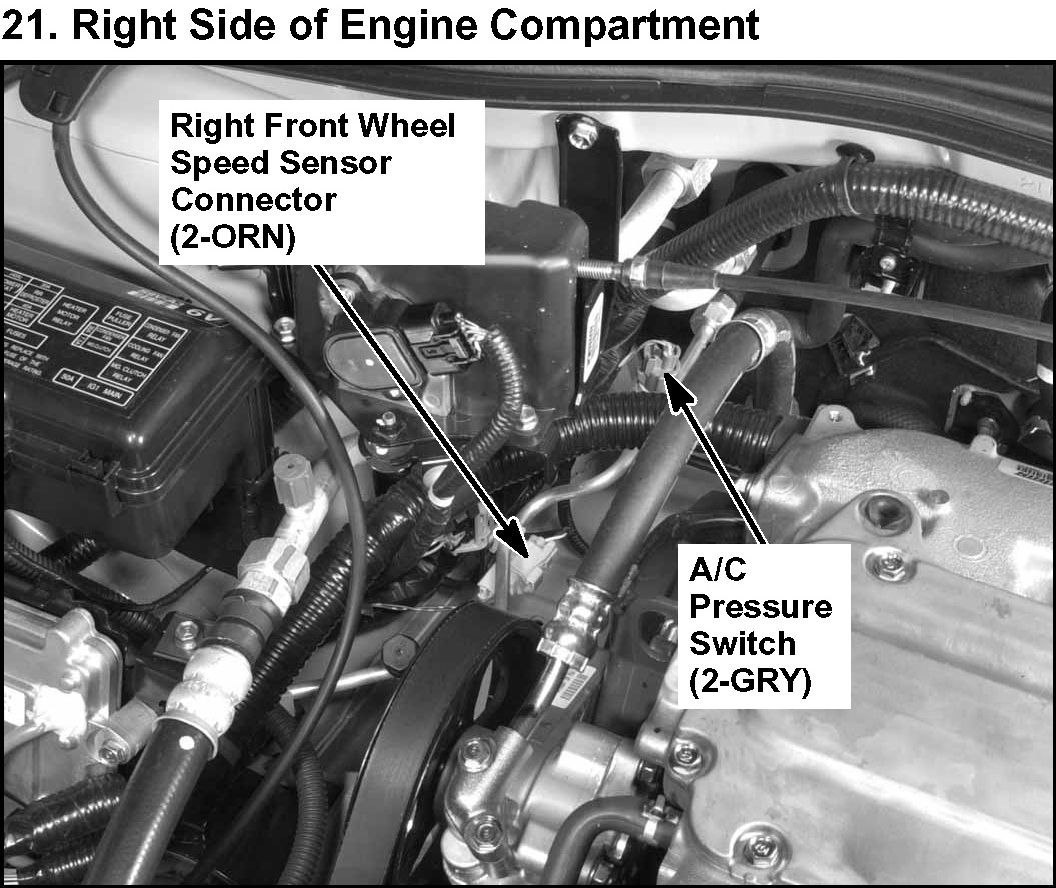

21. Right Side Of Engine Compartment:



Heating/Air Conditioning - Component Location Index:



Climate Control - Component Location Index:
