Connector Views

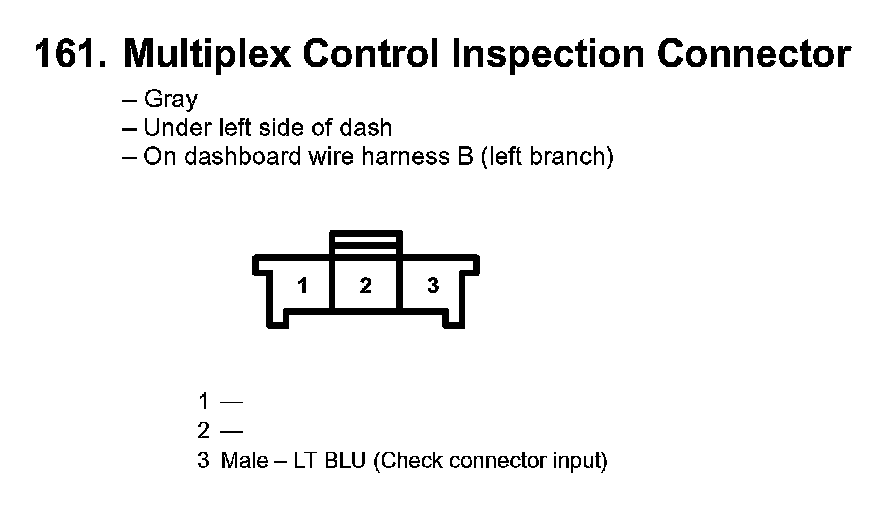

161. Multiplex Control Inspection Connector:

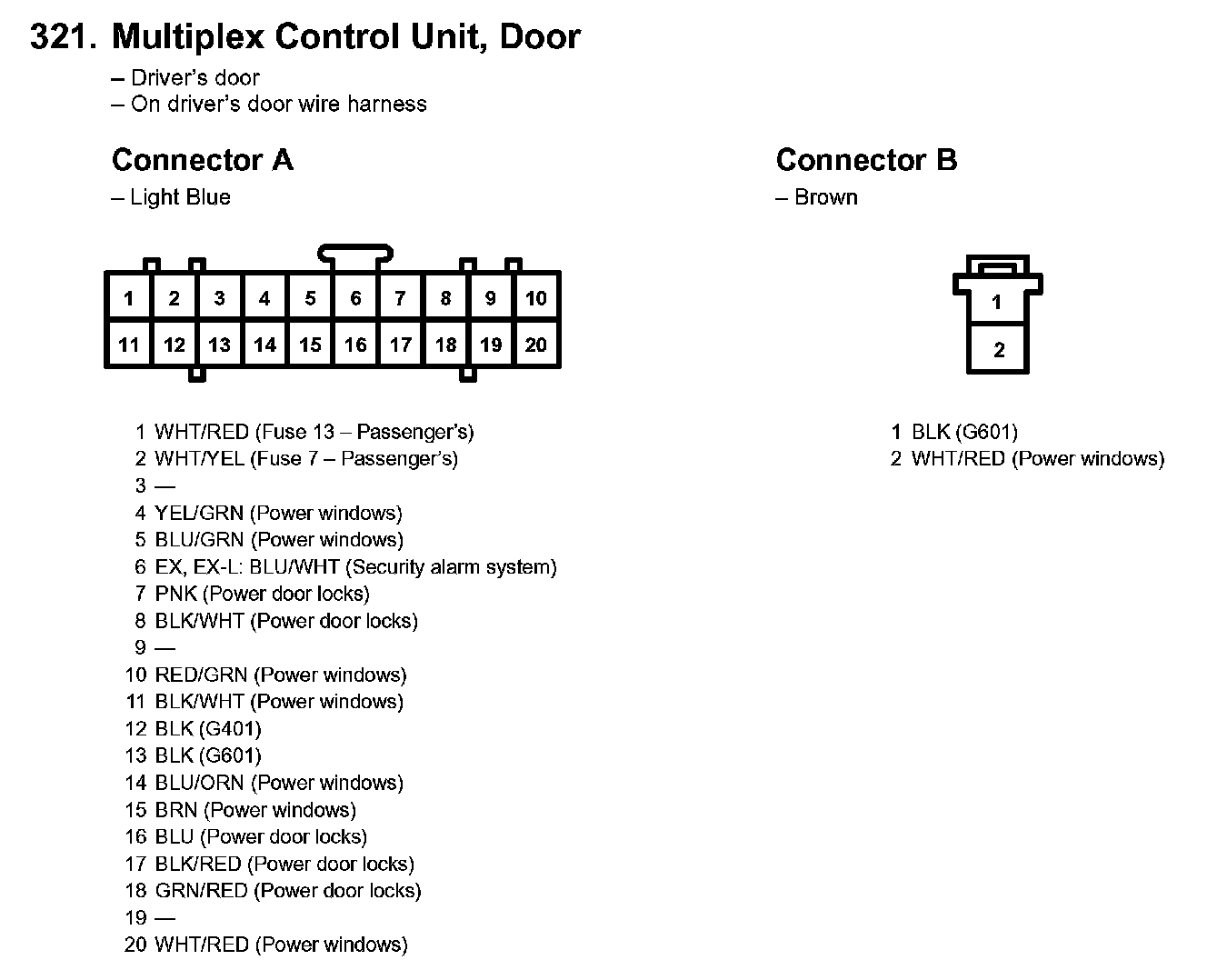

321. Multiplex Control Unit, Door:

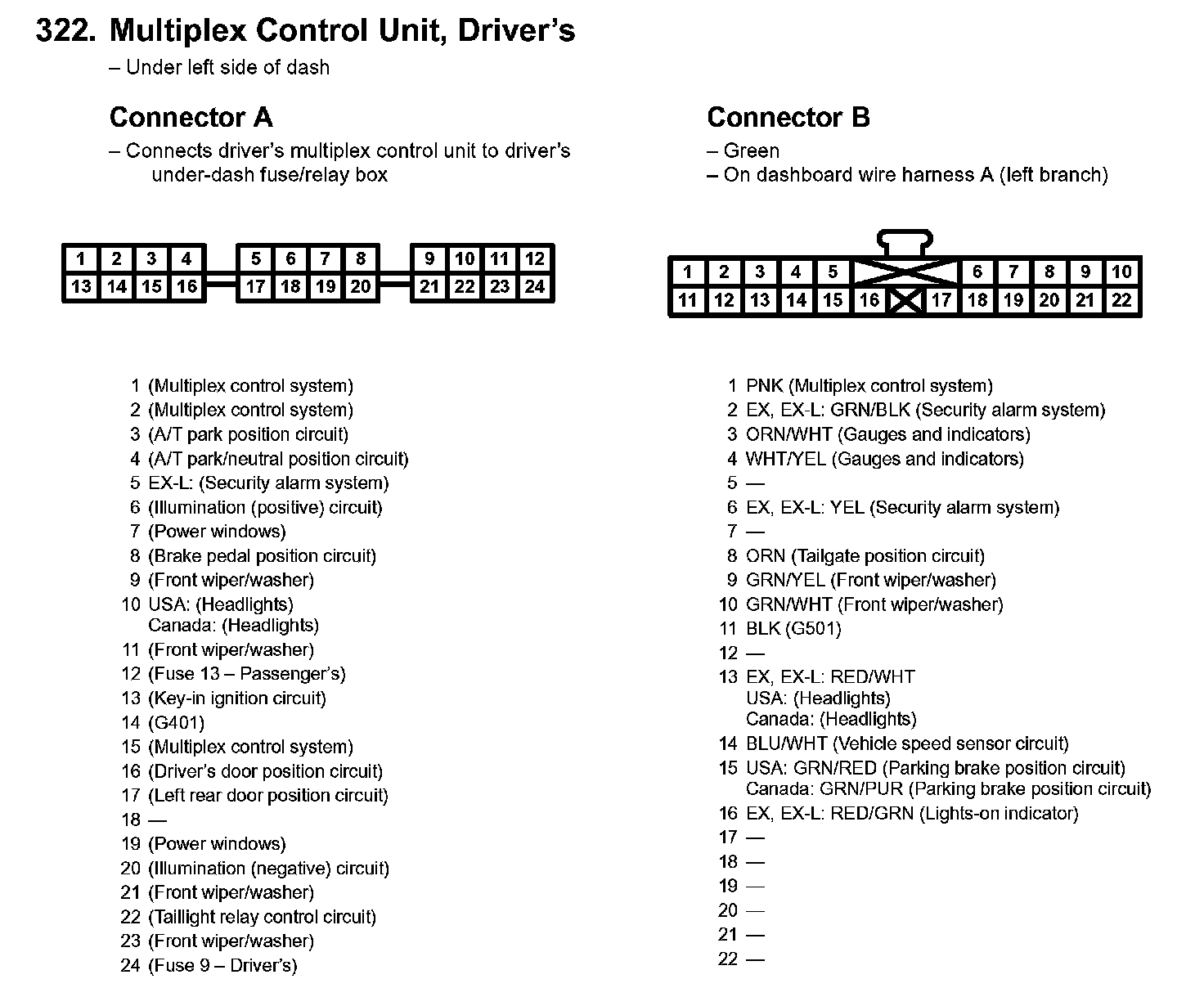

322. Multiplex Control Unit, Driver's:

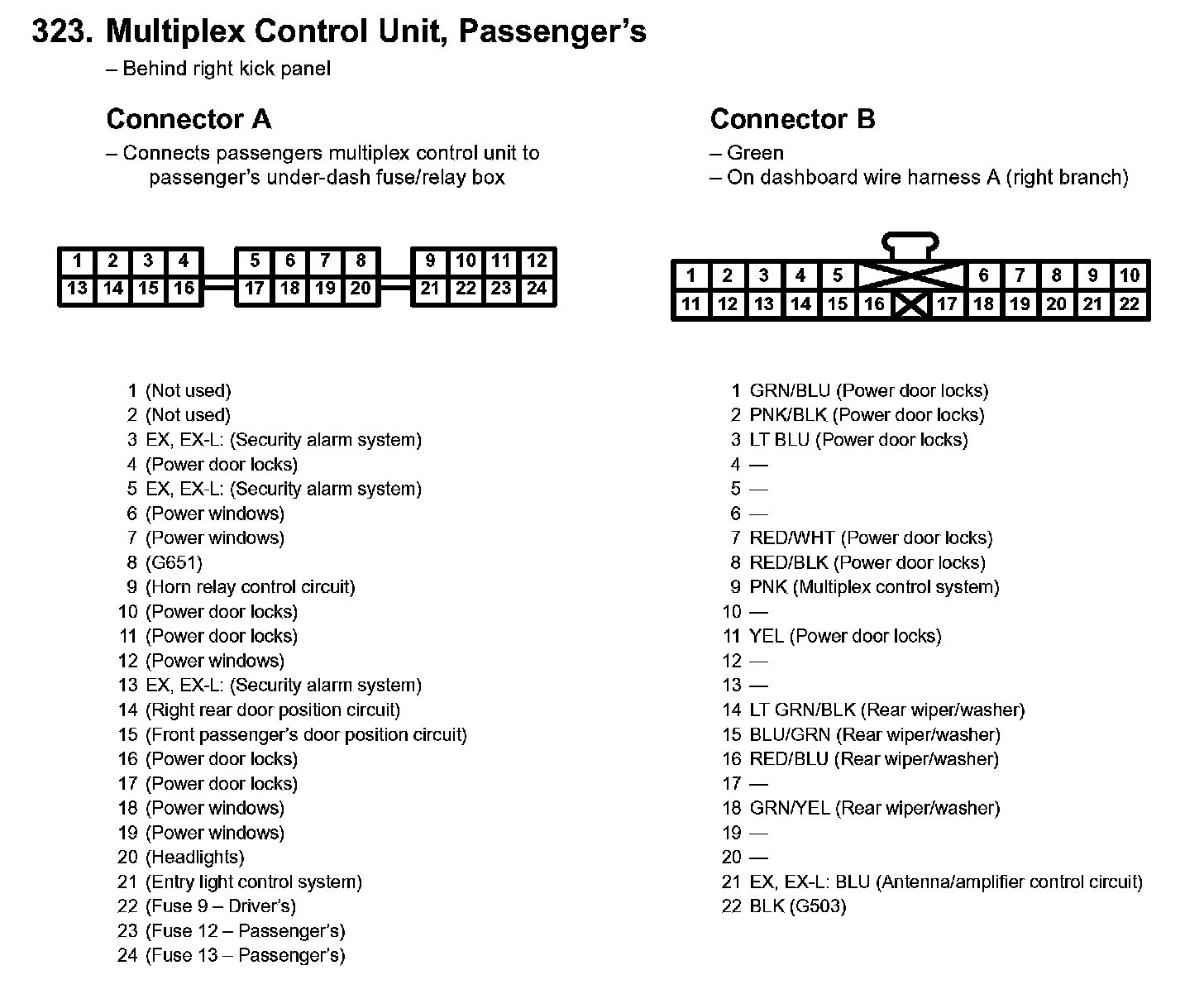

323. Multiplex Control Unit, Passenger's:
