Variable Valve Timing Solenoid: Service and Repair

VTEC Solenoid Valve Replacement

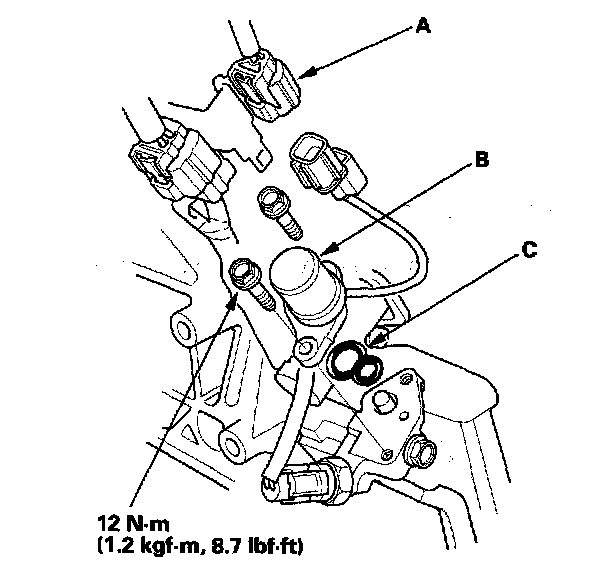

1. Disconnect the VTEC solenoid valve 1P connector (A).
2. Remove the VTEC solenoid valve (B).
3. Install the parts in the reverse order of removal with a new O-ring (C).
