Transmission Range Switch Test

Transmission Range Switch Test

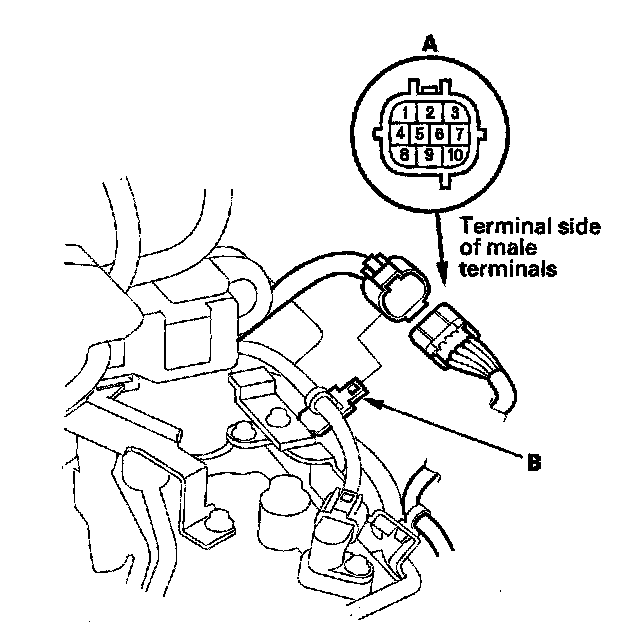

1. Remove the transmission range switch connector (A) from its connector bracket (8), then disconnect the connector.

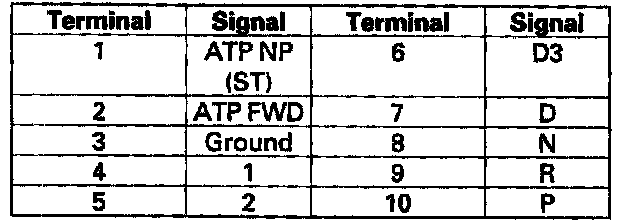

Connector Terminal Specifications

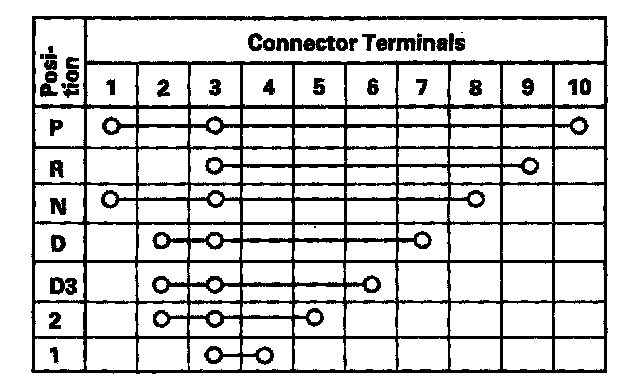

2. Check for continuity between terminals at the connector. There should be continuity between the terminals in the following table for each switch position.
3. If there is no continuity between any terminals, check the transmission range switch installation. If the installation is OK, replace the switch.
