Air Bag Control Module: Locations

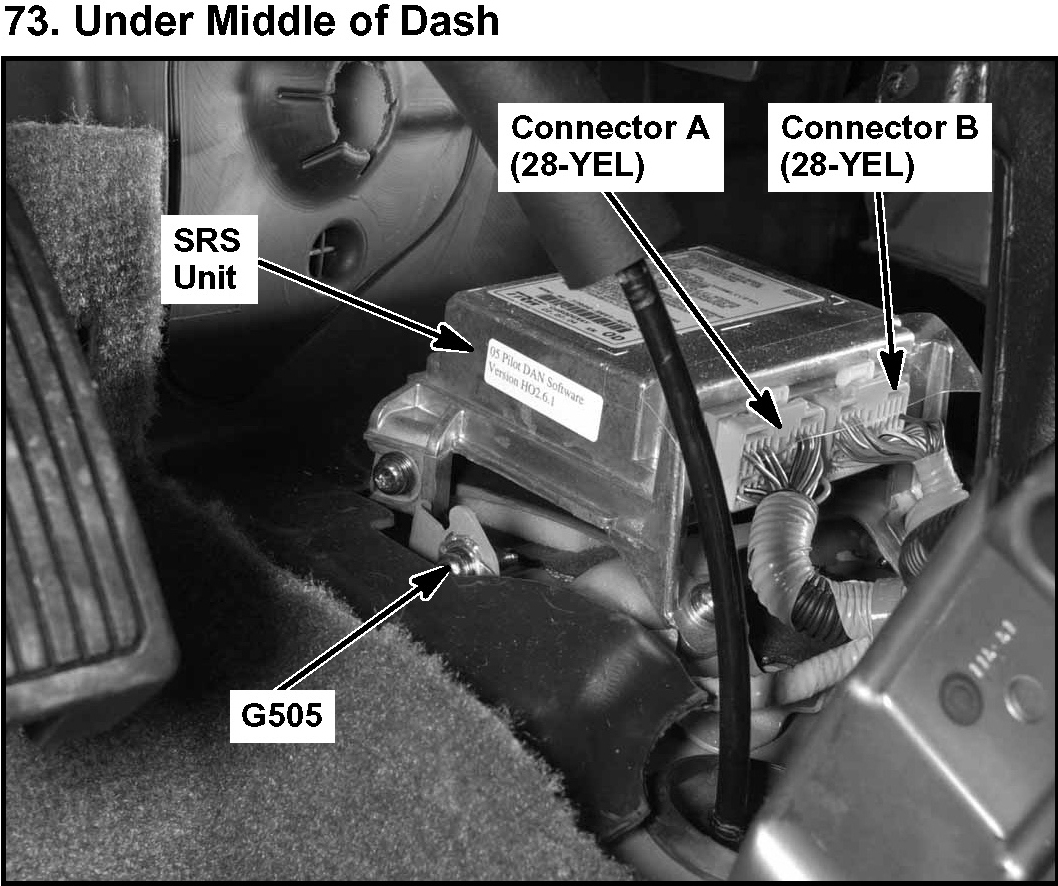

73. Under Middle Of Dash:

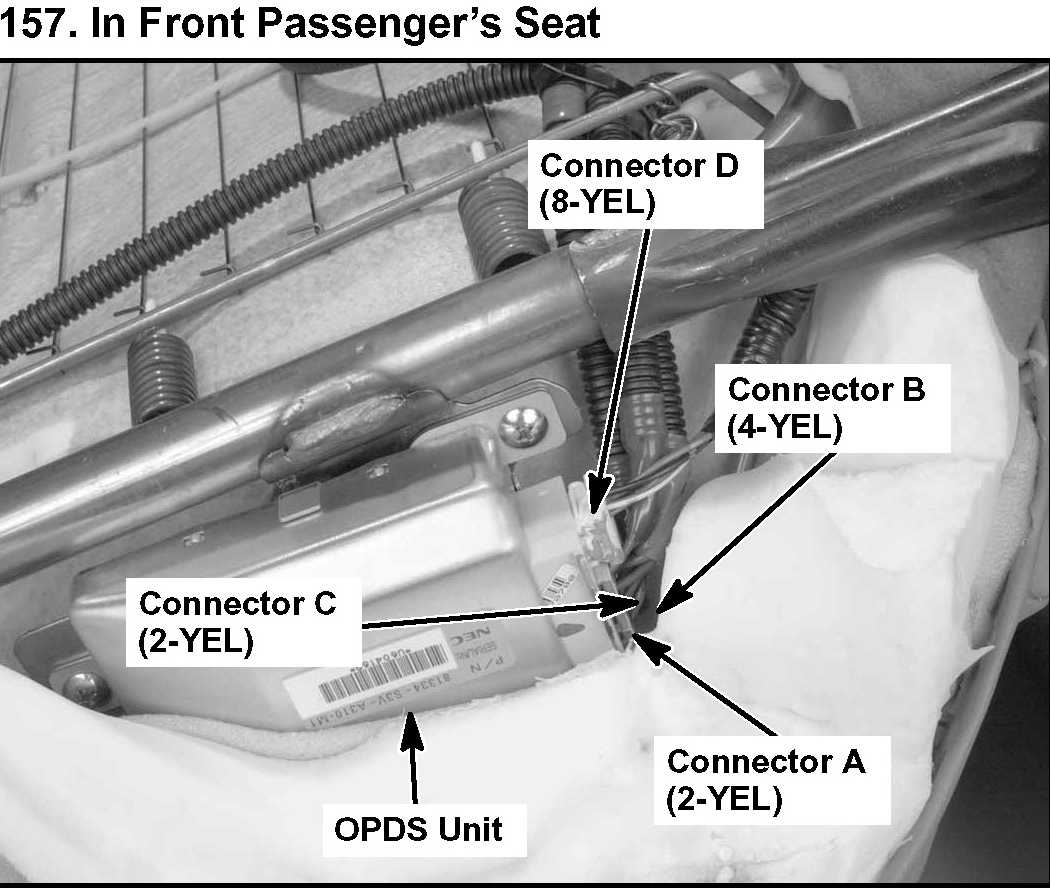

157. In Front Passenger's Seat:



Relay And Control Unit Locations - Dashboard:



Relay And Control Unit Locations - Door And Seat:

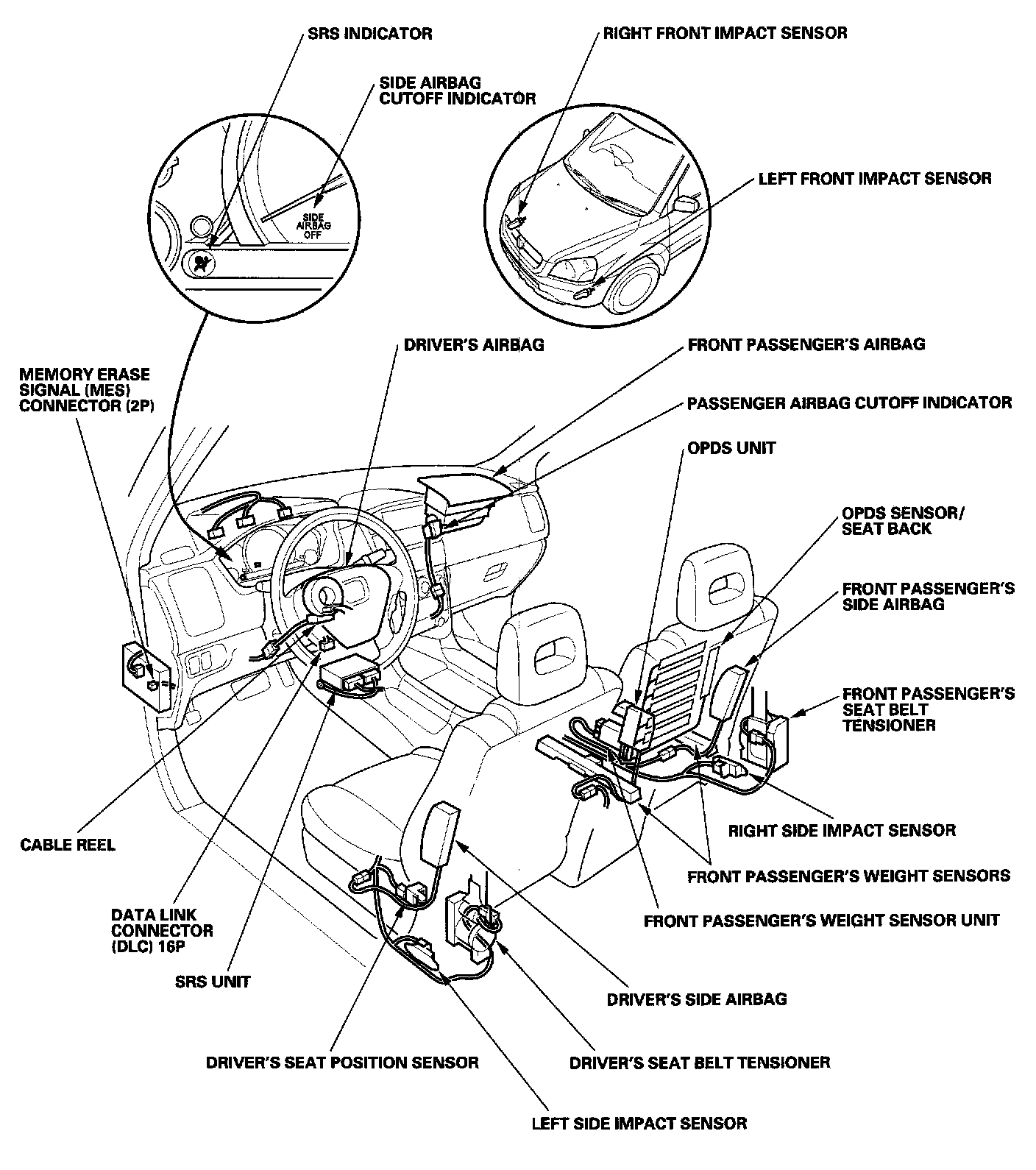

SRS - Component Location Index:
