Water Pump

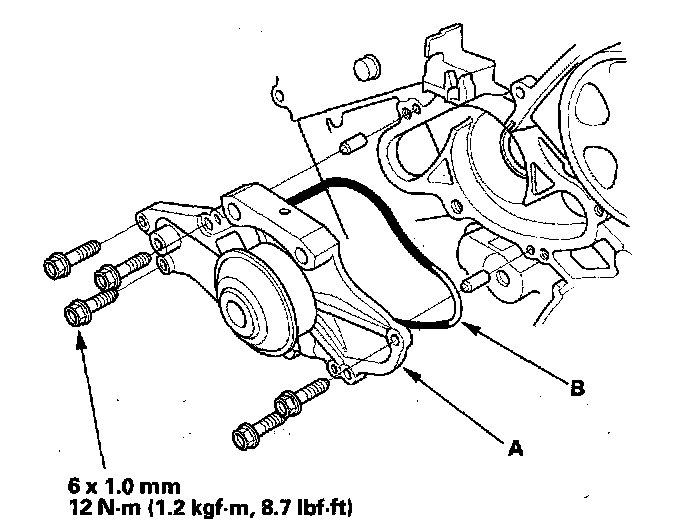

Water pump
Install the water pump (A) with a new O-ring (B) in the reverse order of removal.
