Alarm Module: Locations

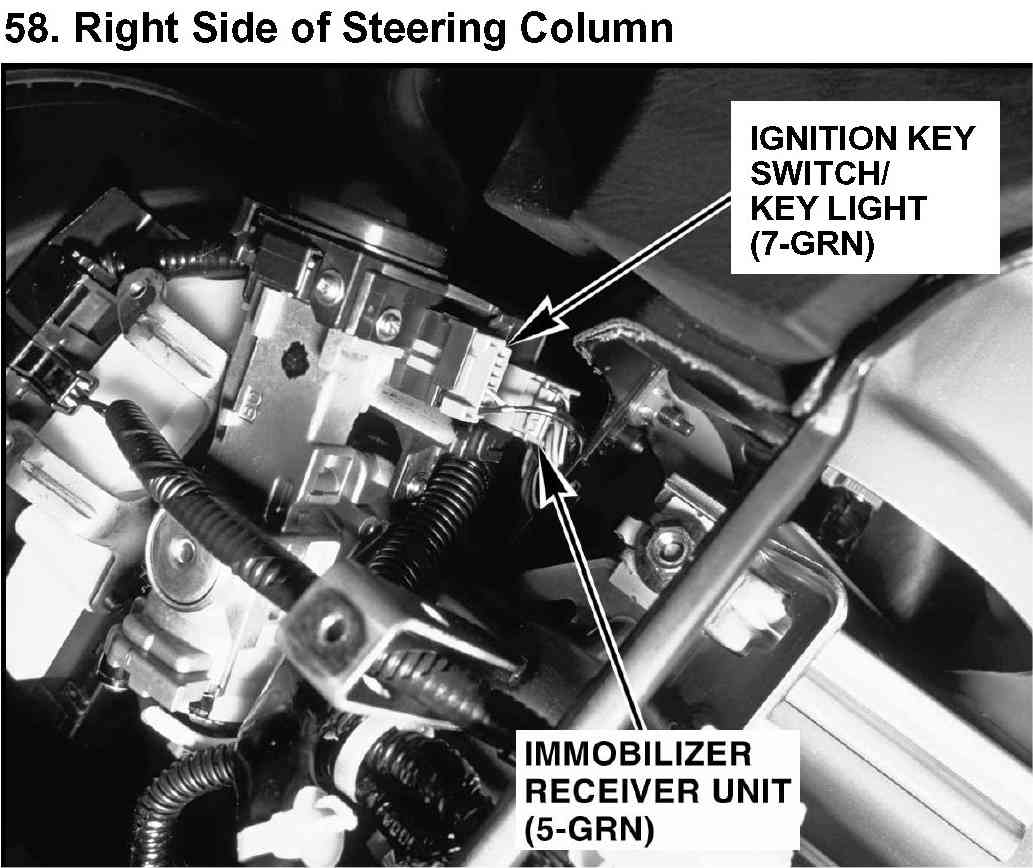

58. Right Side of Steering Column:

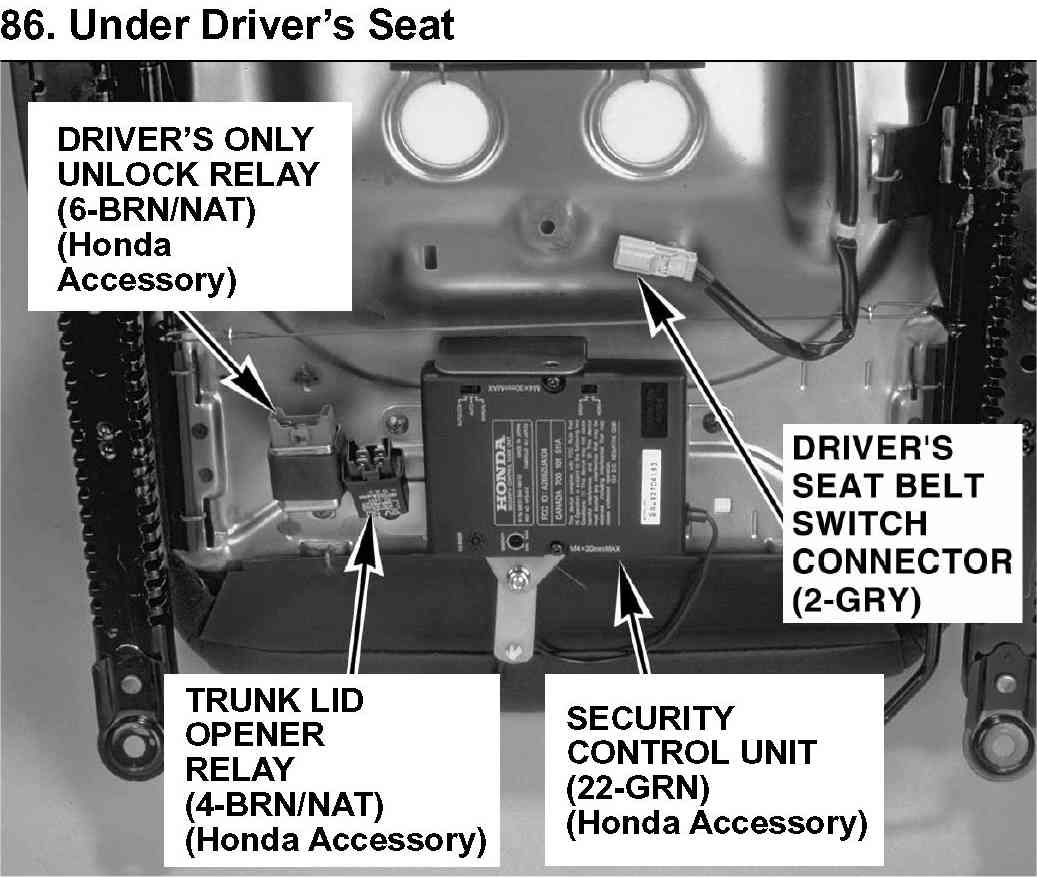

86. Under Driver's Seat:



Immobilizer System - Component Location Index:
