Wheel Speed Sensor

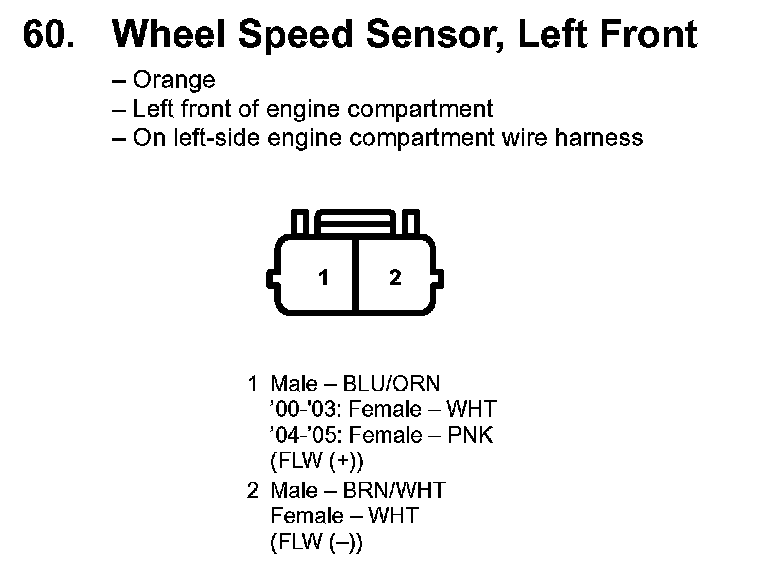

60. Wheel Speed Sensor, Left Front:

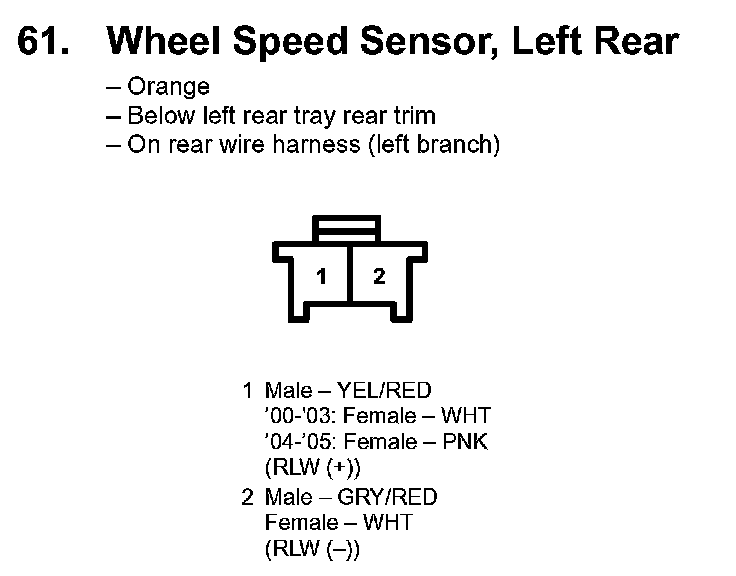

61. Wheel Speed Sensor, Left Rear:

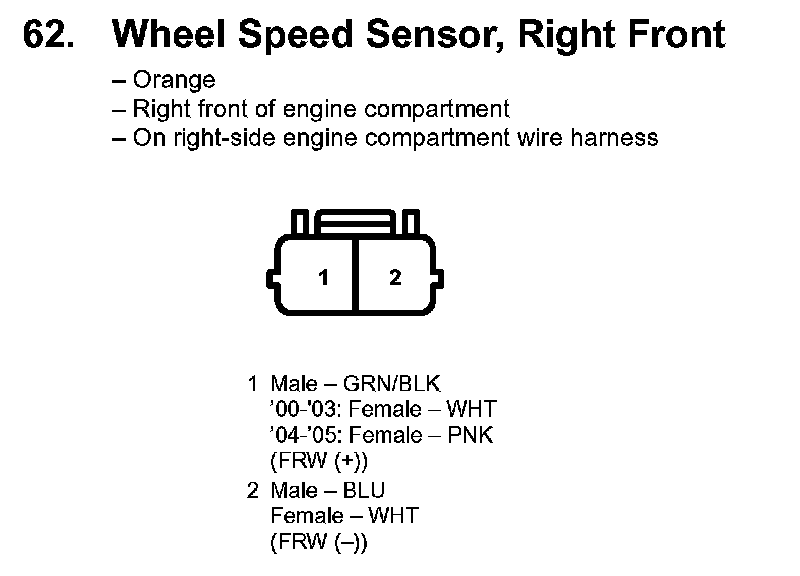

62. Wheel Speed Sensor, Right Front:

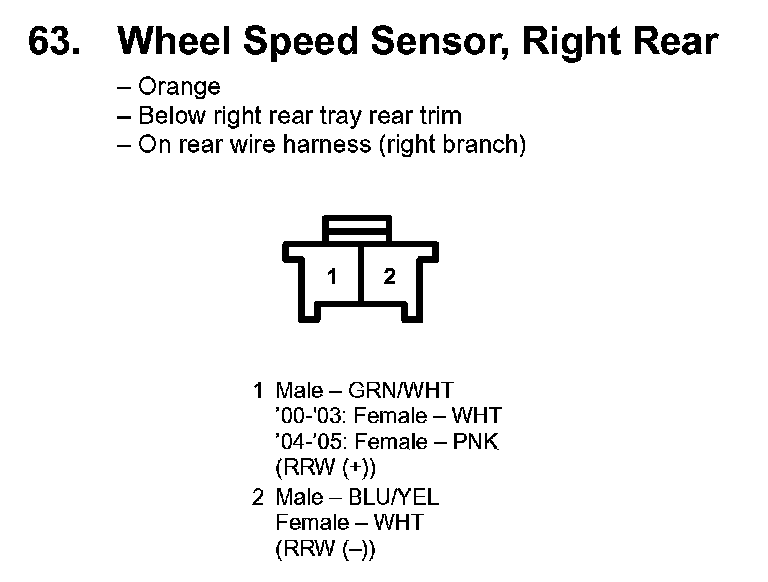

63. Wheel Speed Sensor, Right Rear:
