Intake Air System

Intake Air System

Refer to the system diagram to see a functional layout of the system.

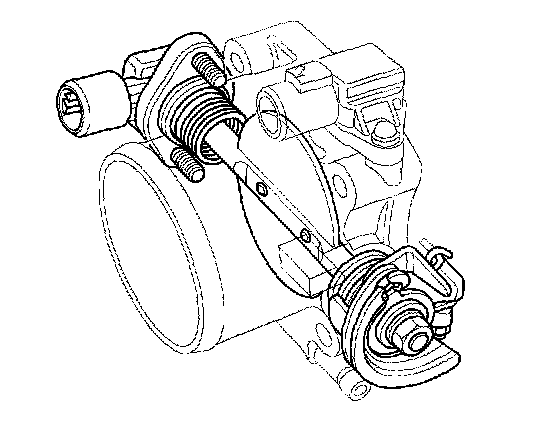

Throttle Body

The throttle body is a single-barrel side draft type. The lower portion of the throttle valve is heated by engine coolant from the cylinder head.

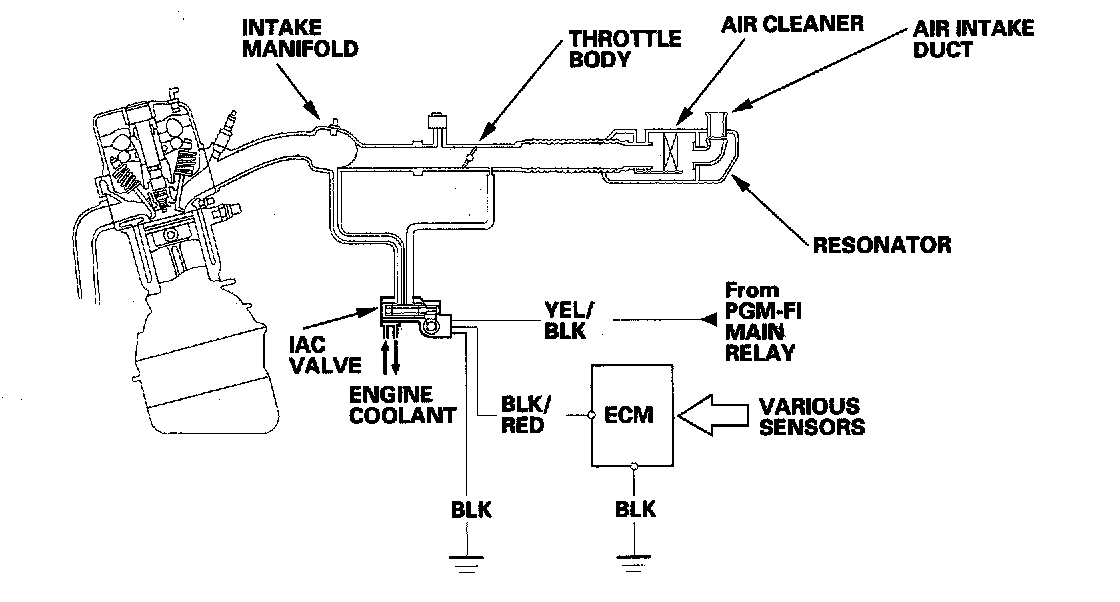

Intake Air System Diagram

This system supplies air for engine needs. A resonator in the air intake duct provides additional silencing as air is drawn into the system.
