Engine Control Module: Locations

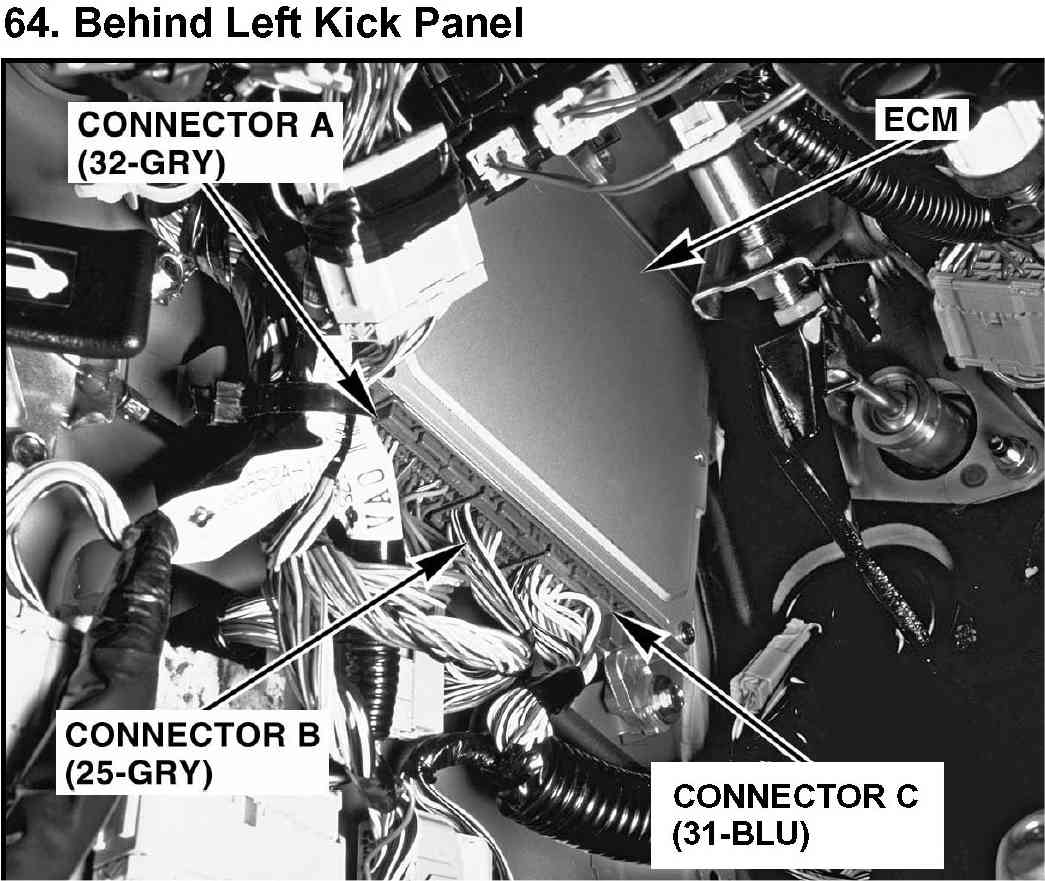

64. Behind Left Kick Panel:



Starting System - Component Location Index:



Relay And Control Unit Locations - Dash Board:

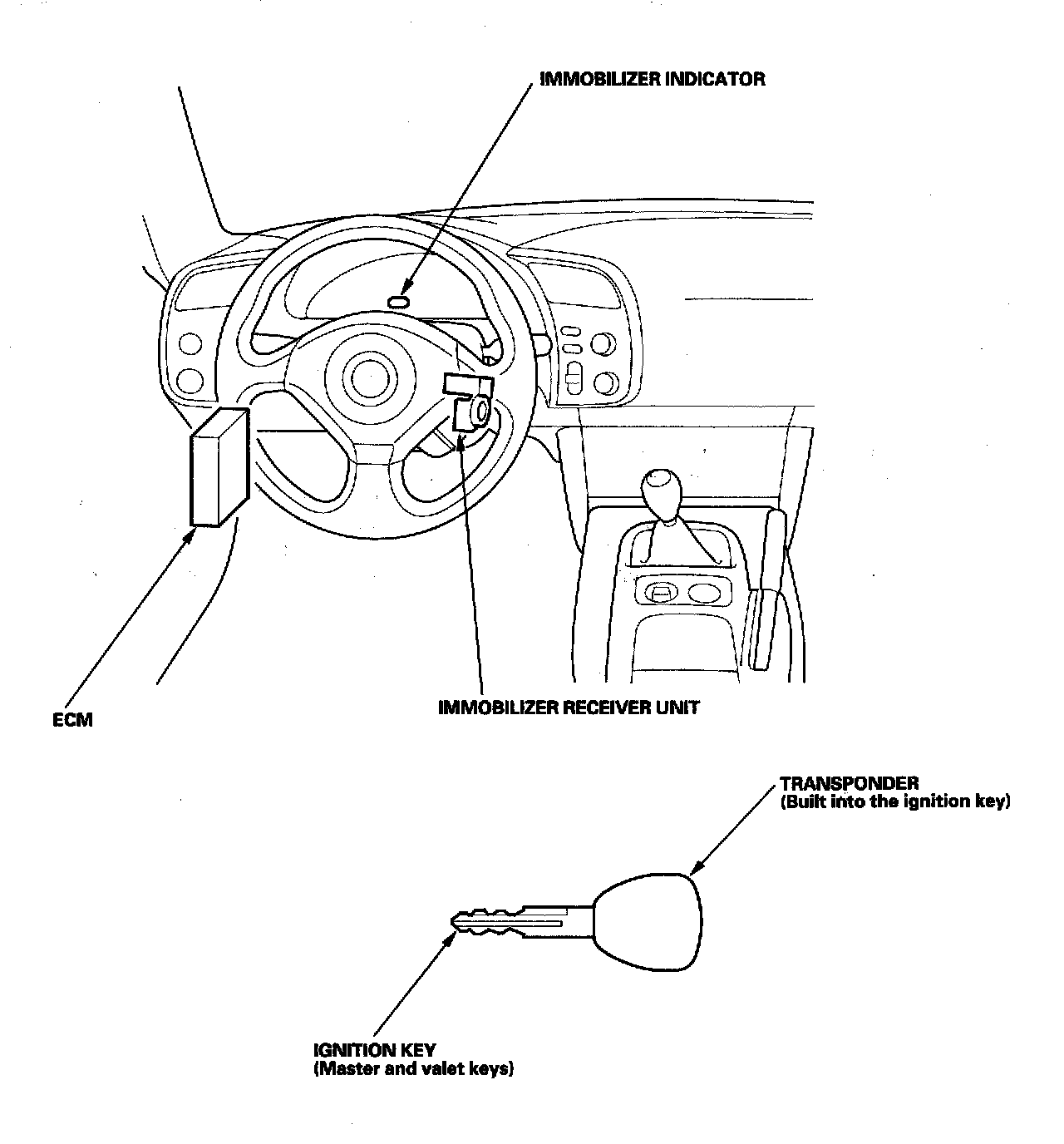

Immobilizer System - Component Location Index:



PGM-FI System - Component Location Index:
