Control Units

CONTROL UNITS LOCATION

Component Location
ABS Modulator/Control Unit Below master cylinder. See Figure .
Convertible Top Control Unit Under right side of dash. See Figure .
Cruise Control Unit Under left side of dash. See Figure .
ECM Behind left kick panel. See Figure .
ELD Unit In main under-hood fuse/relay box. See Figure .
EPS Control Unit Right of battery. See Figure .
Immobilizer Receiver Unit Under left side of dash. See Figure .

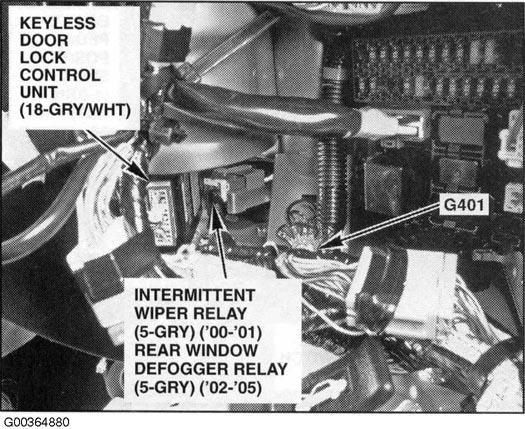

Keyless Door Lock Control Unit Under left side of dash. See Figure .
Security Control Unit (Honda Accessory) Under driver's seat. See Figure .
SRS Unit Behind center of dash, below radio. See Figure .
