Navigation Module: Locations

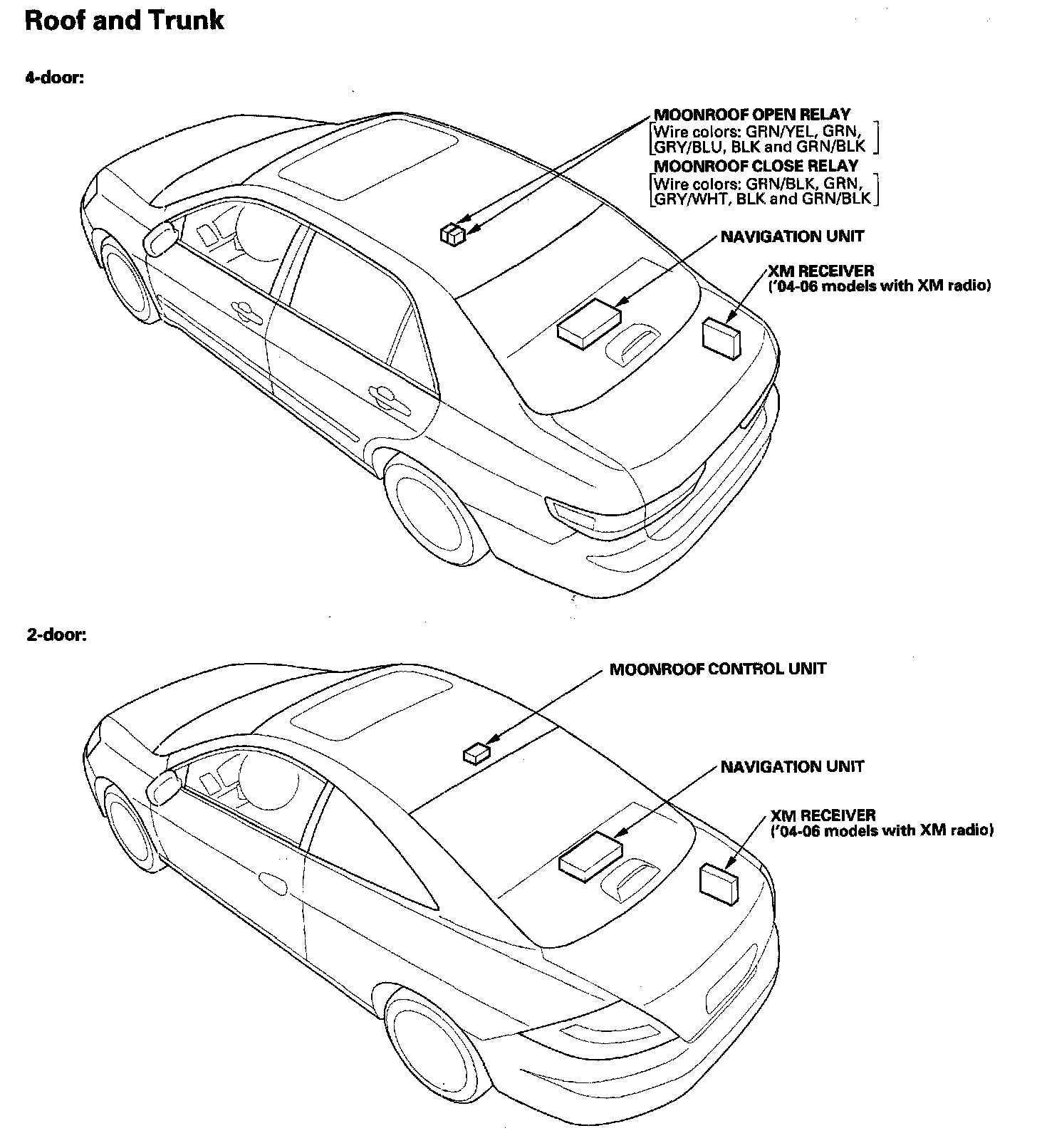

Relay And Control Unit Locations - Roof And Trunk:

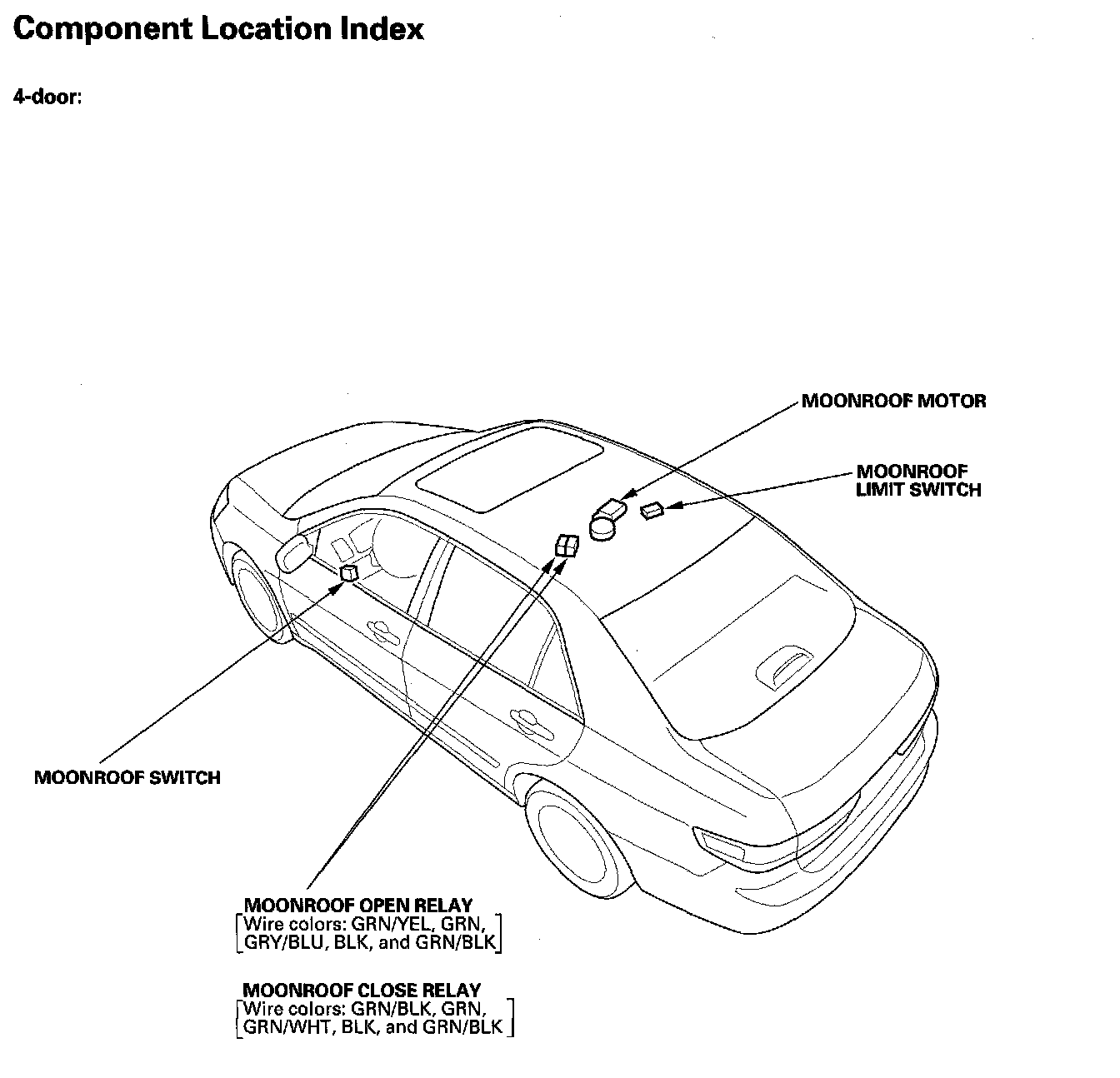

Moonroof - Component Location Index:

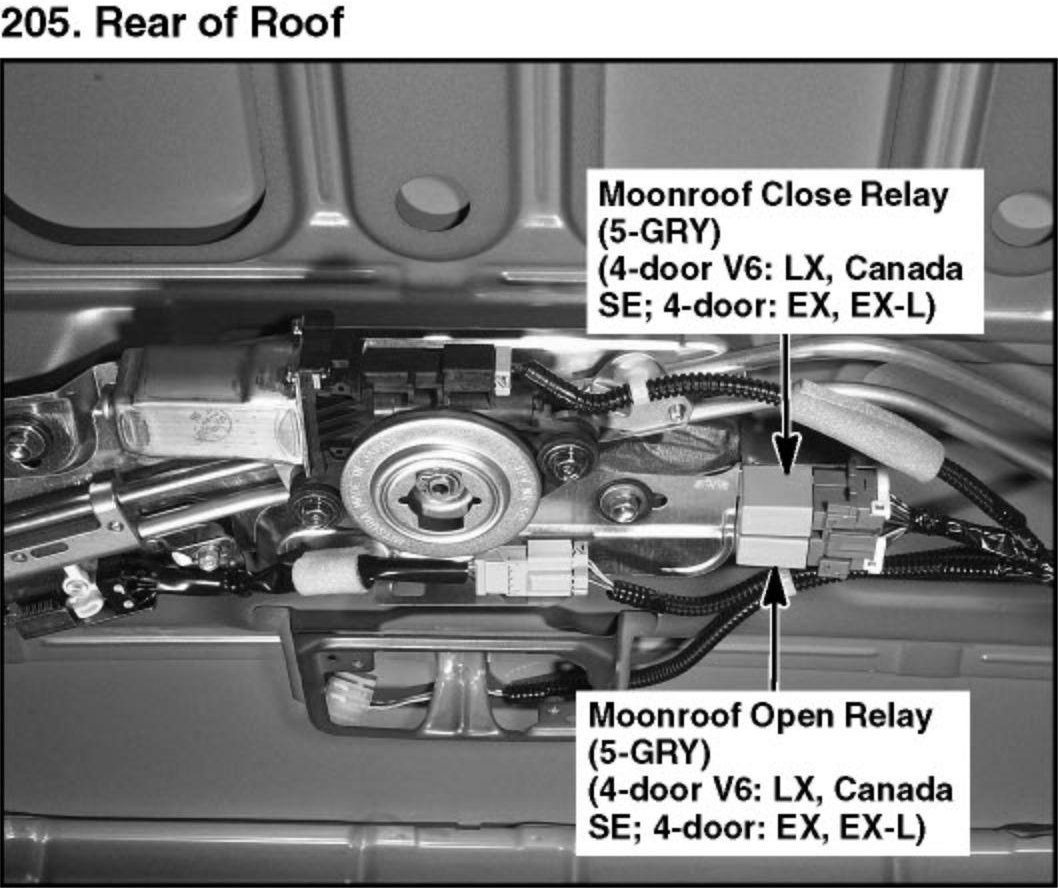

205. Rear of Roof:
