View 126-150: 130

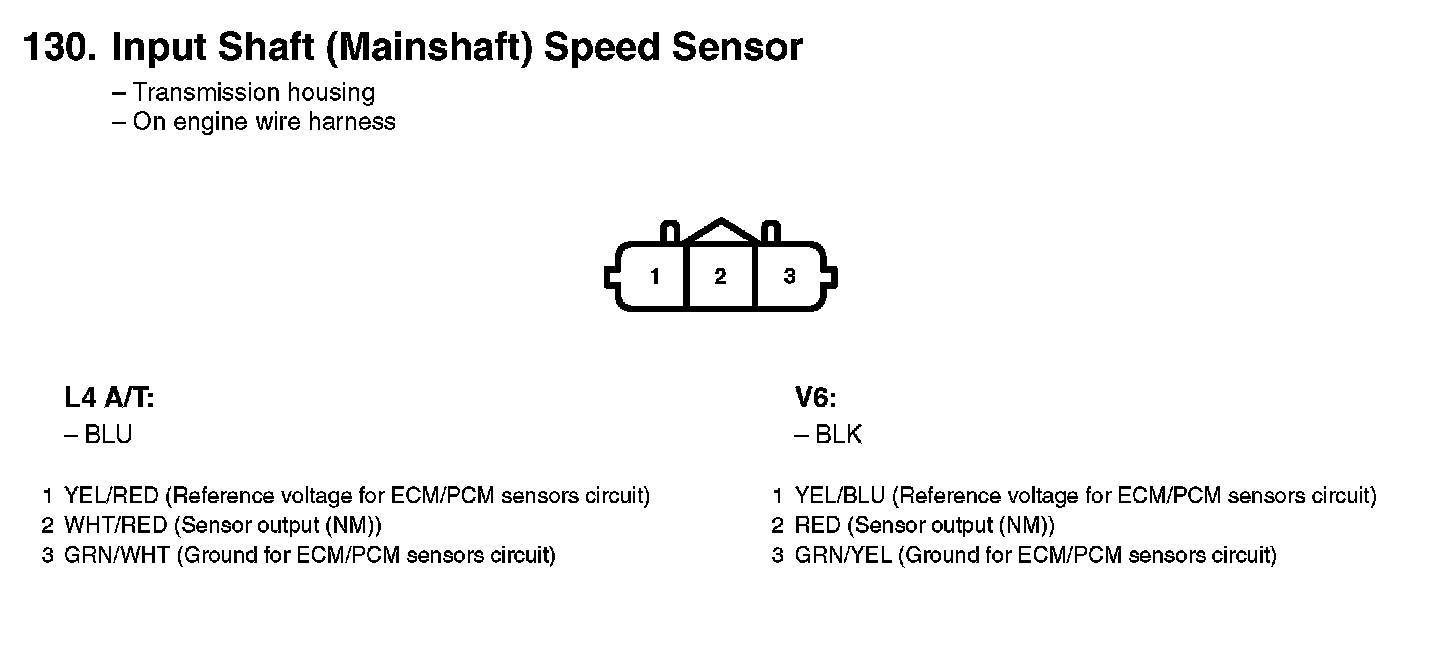

130. Input Shaft (Mainshaft) Speed Sensor:

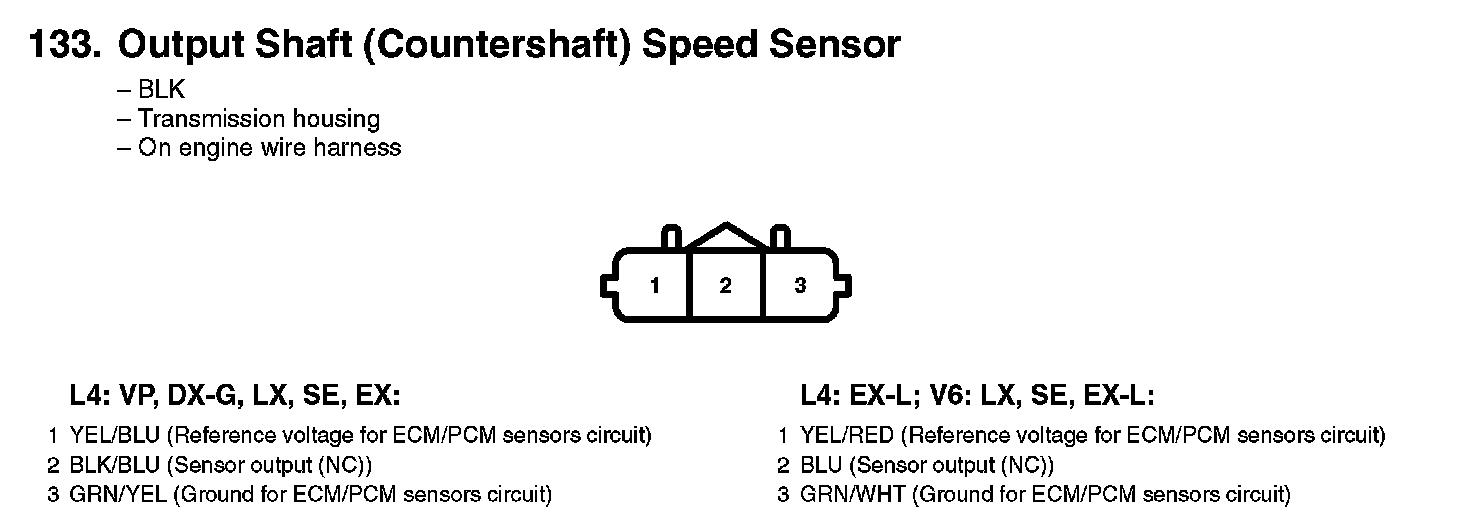

133. Output Shaft (Countershaft) Speed Sensor:
