Impact Sensor

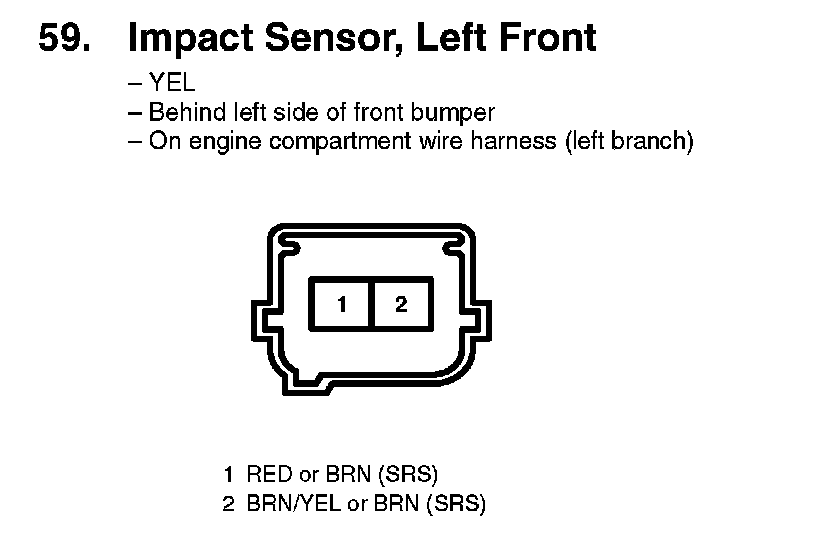

59. Impact Sensor, Left Front:

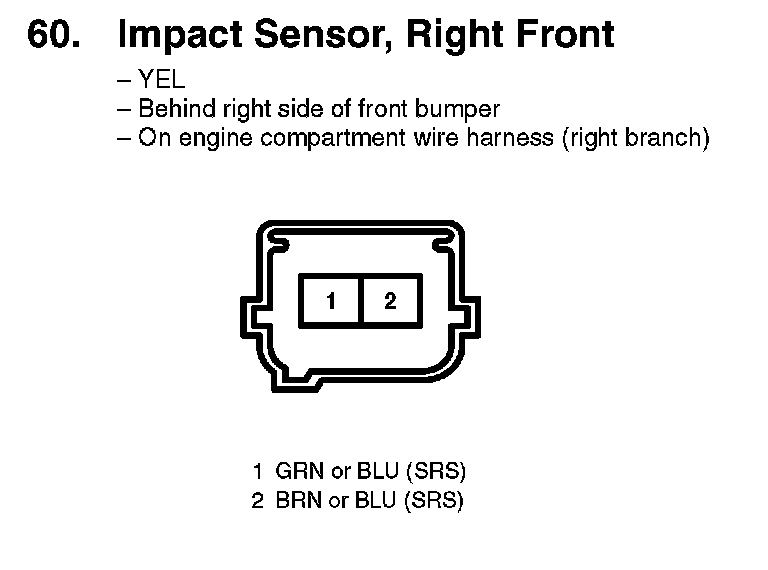

60. Impact Sensor, Right Front:

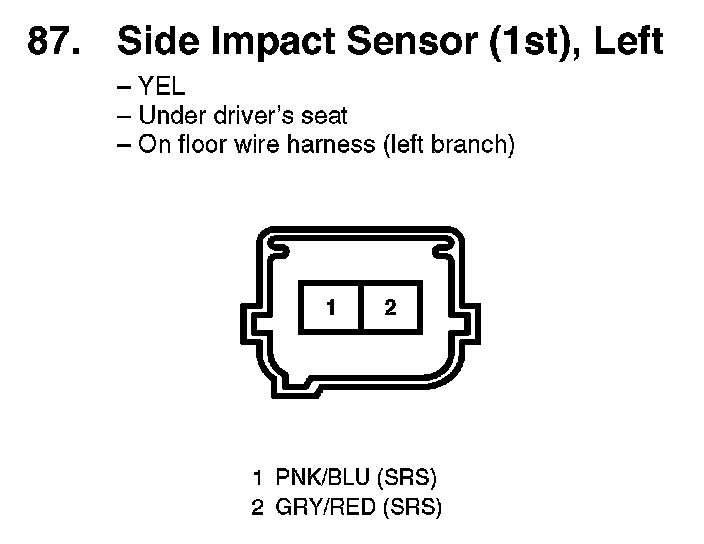

87. Side Impact Sensor (1st), Left:

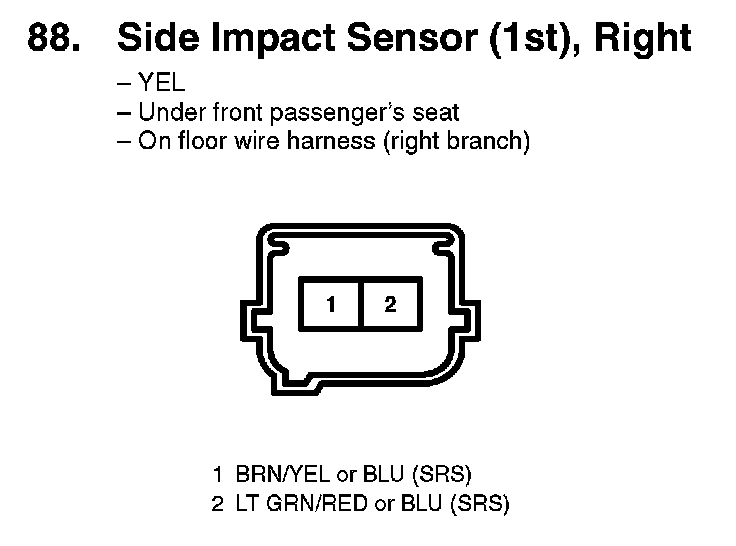

88. Side Impact Sensor (1st), Right:

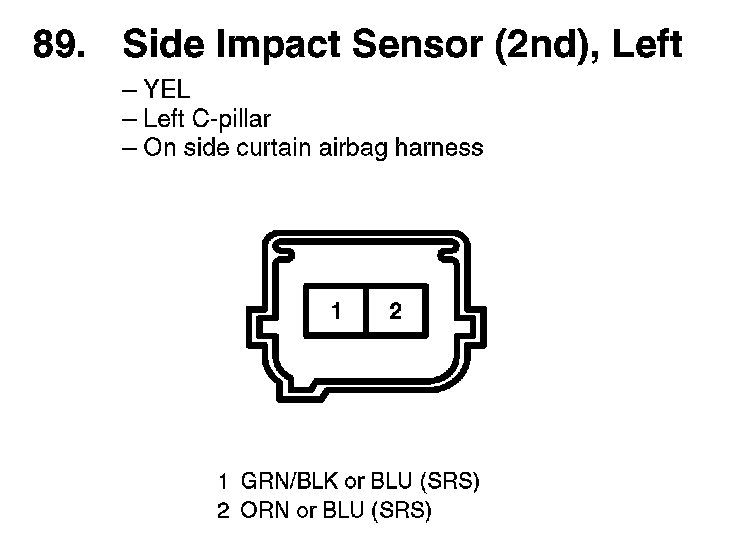

89. Side Impact Sensor (2nd), Left:



90. Side Impact Sensor (2nd), Right:
