Solar Sensor: Locations

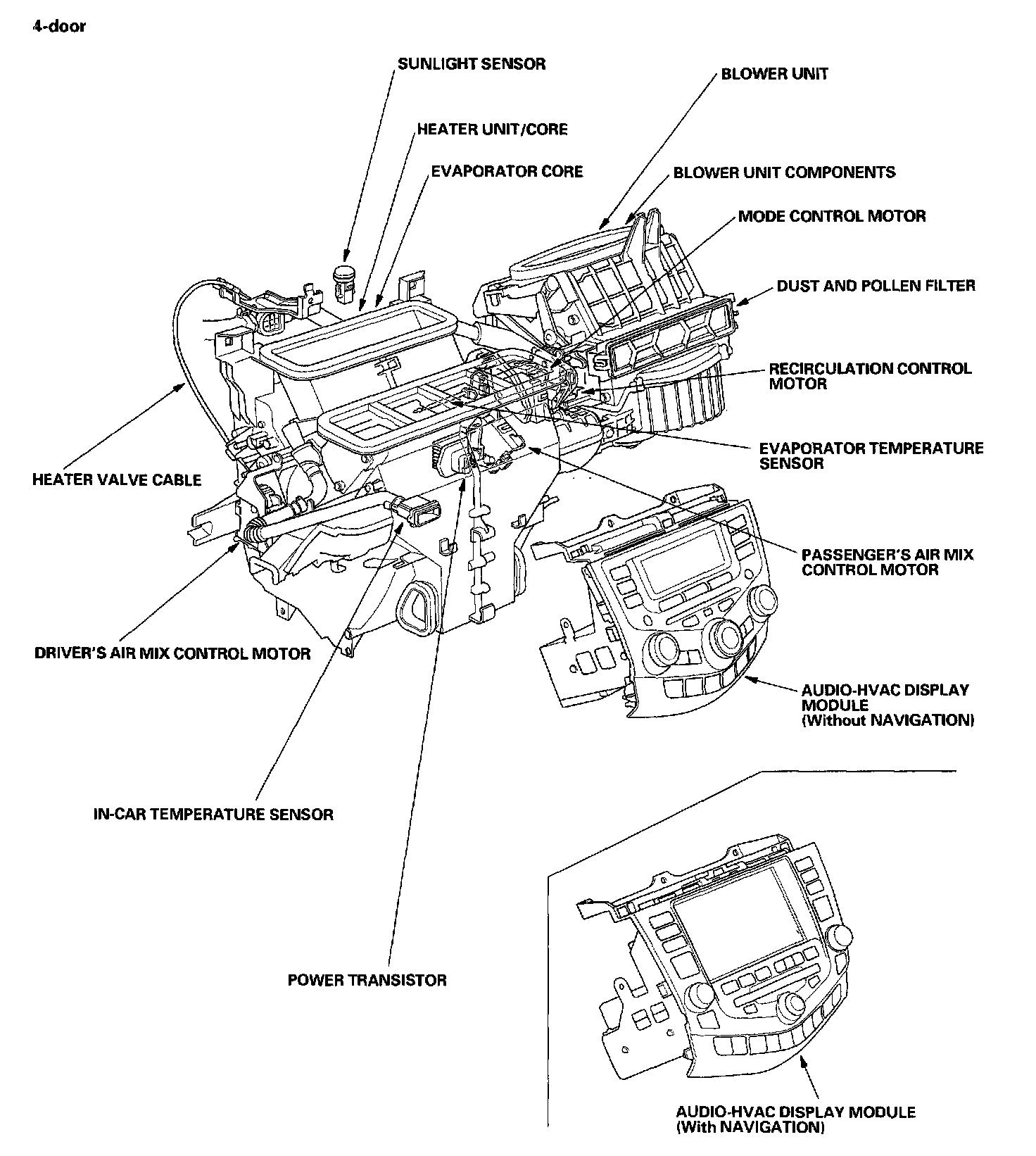

Climate Control Component Location Index (4-door):

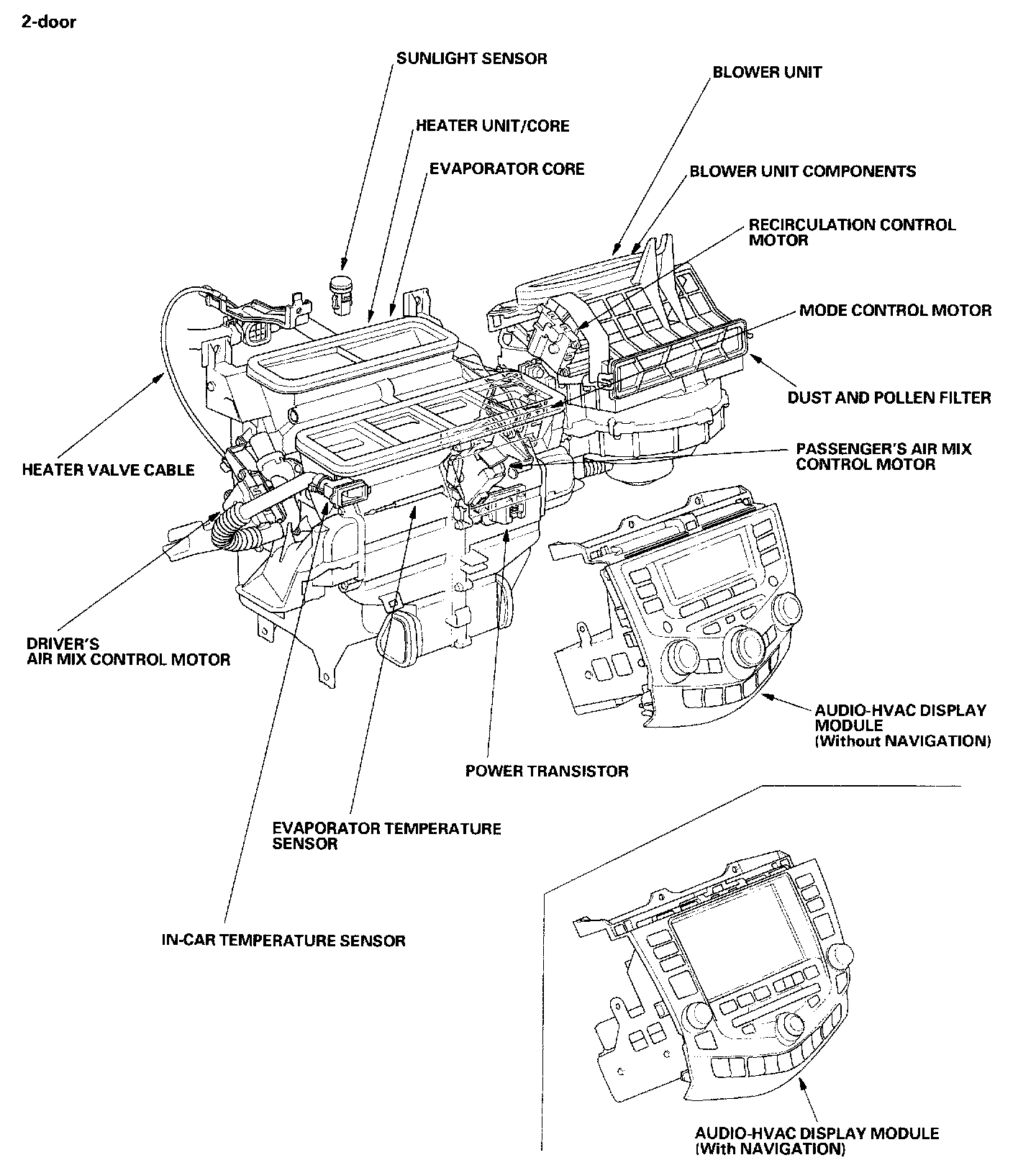

Climate Control Component Location Index (2-door):

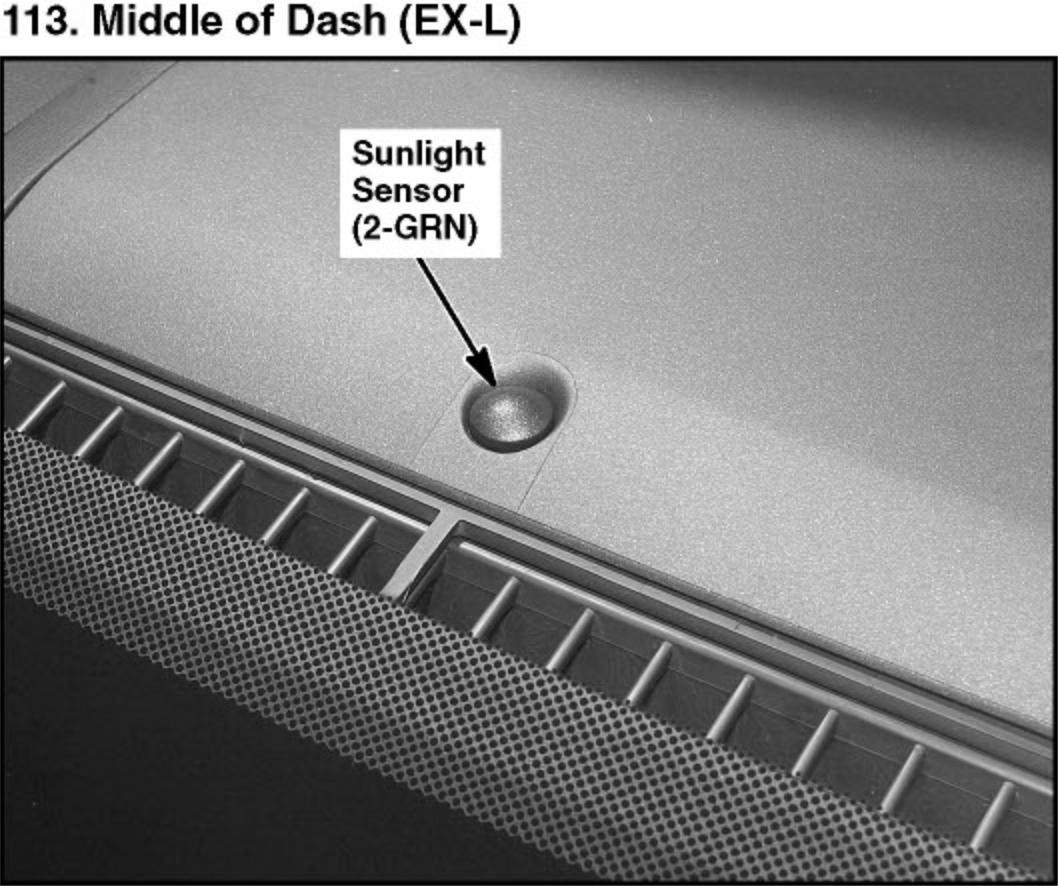

113. Middle of Dash (EX-L):
