Information Bus: Locations

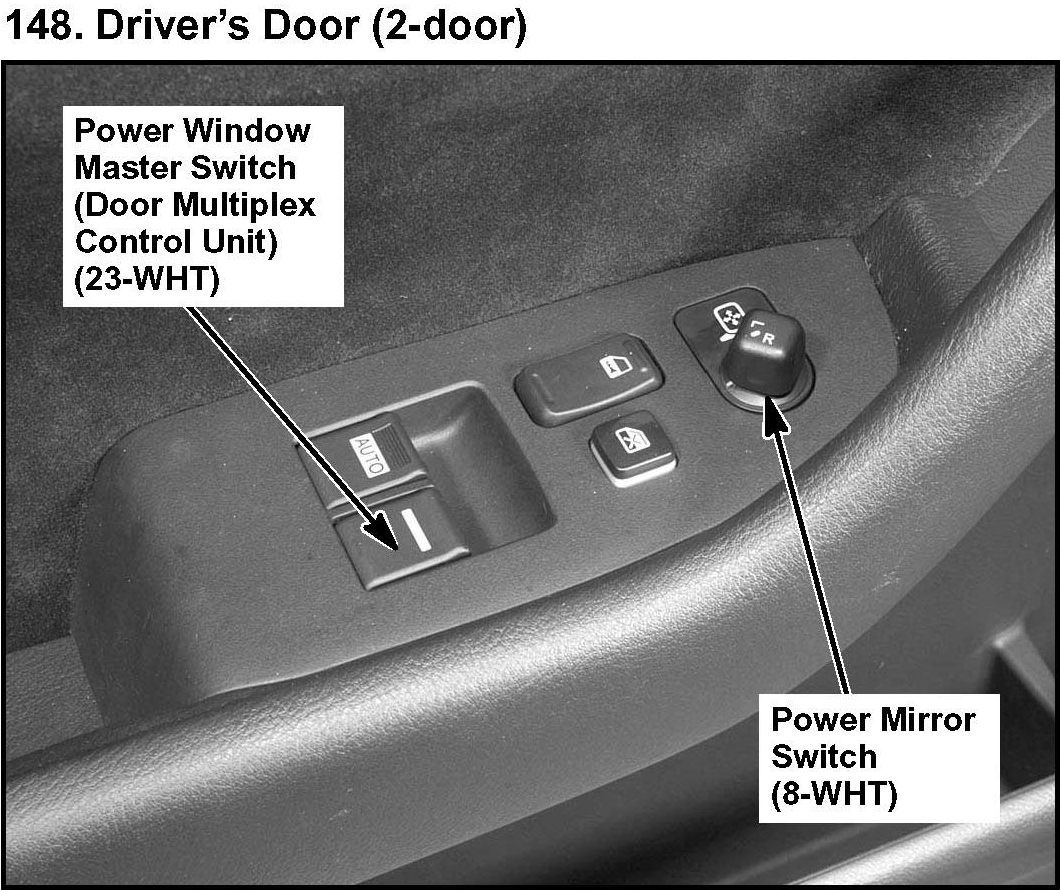

148. Driver's Door (2-door):

Relay And Control Unit Locations - Engine Compartment:

Relay And Control Unit Locations - Dashboard:

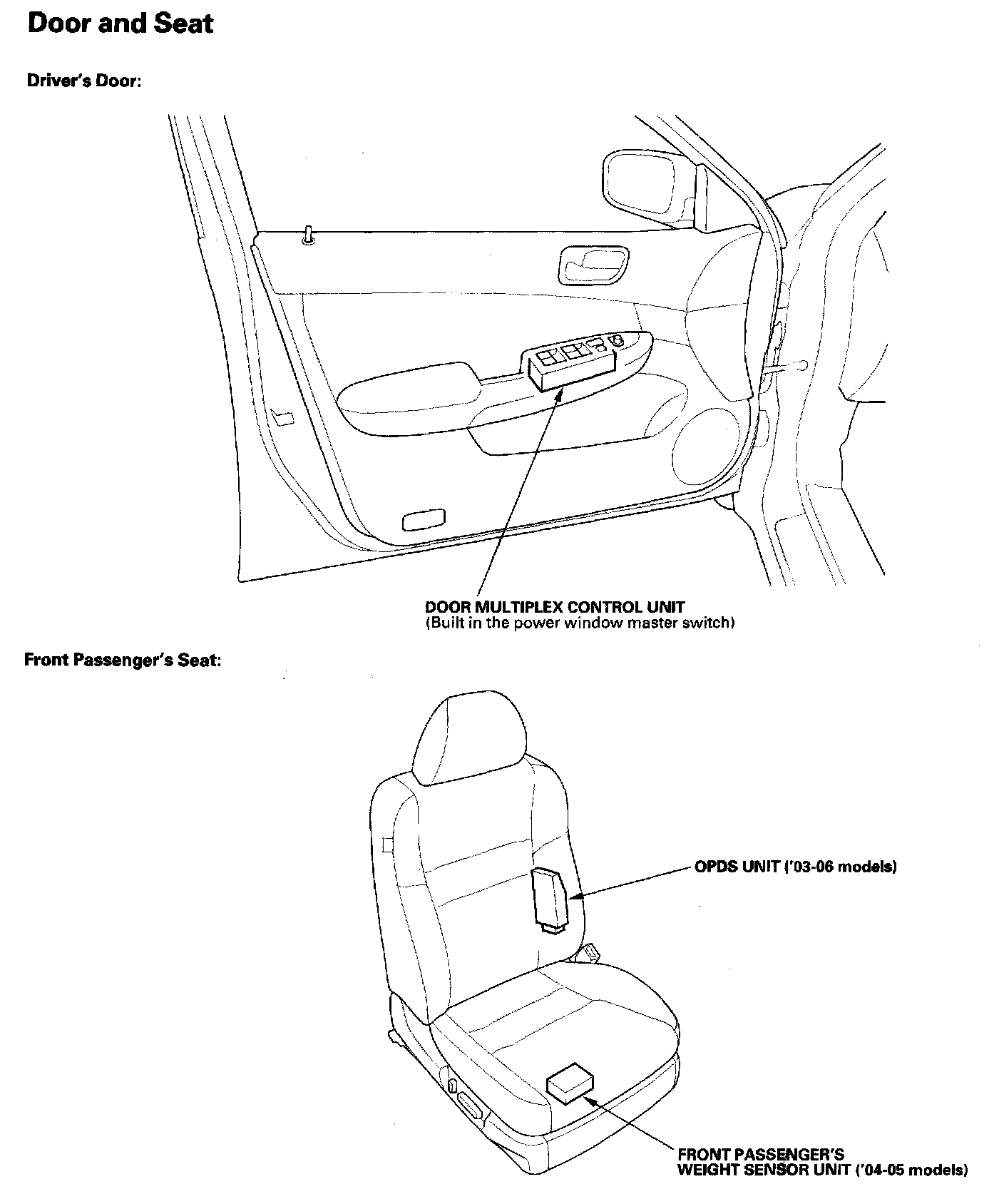

Relay And Control Unit Locations - Door And Seat:

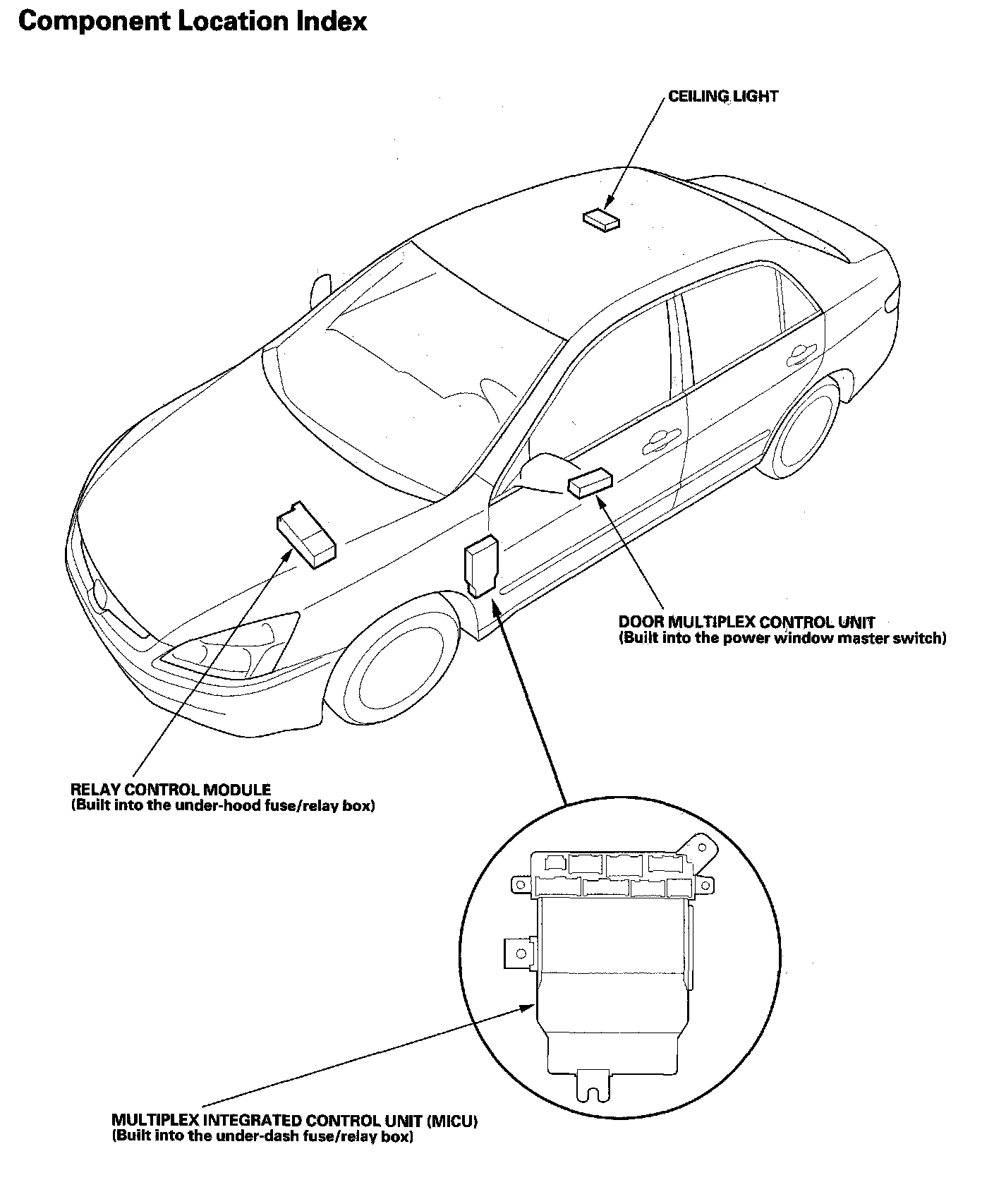

Multiplex Integrated Control System (MICS) - Component Location Index:

Multiplex Integrated Control System (MICS) - Component Location Index:

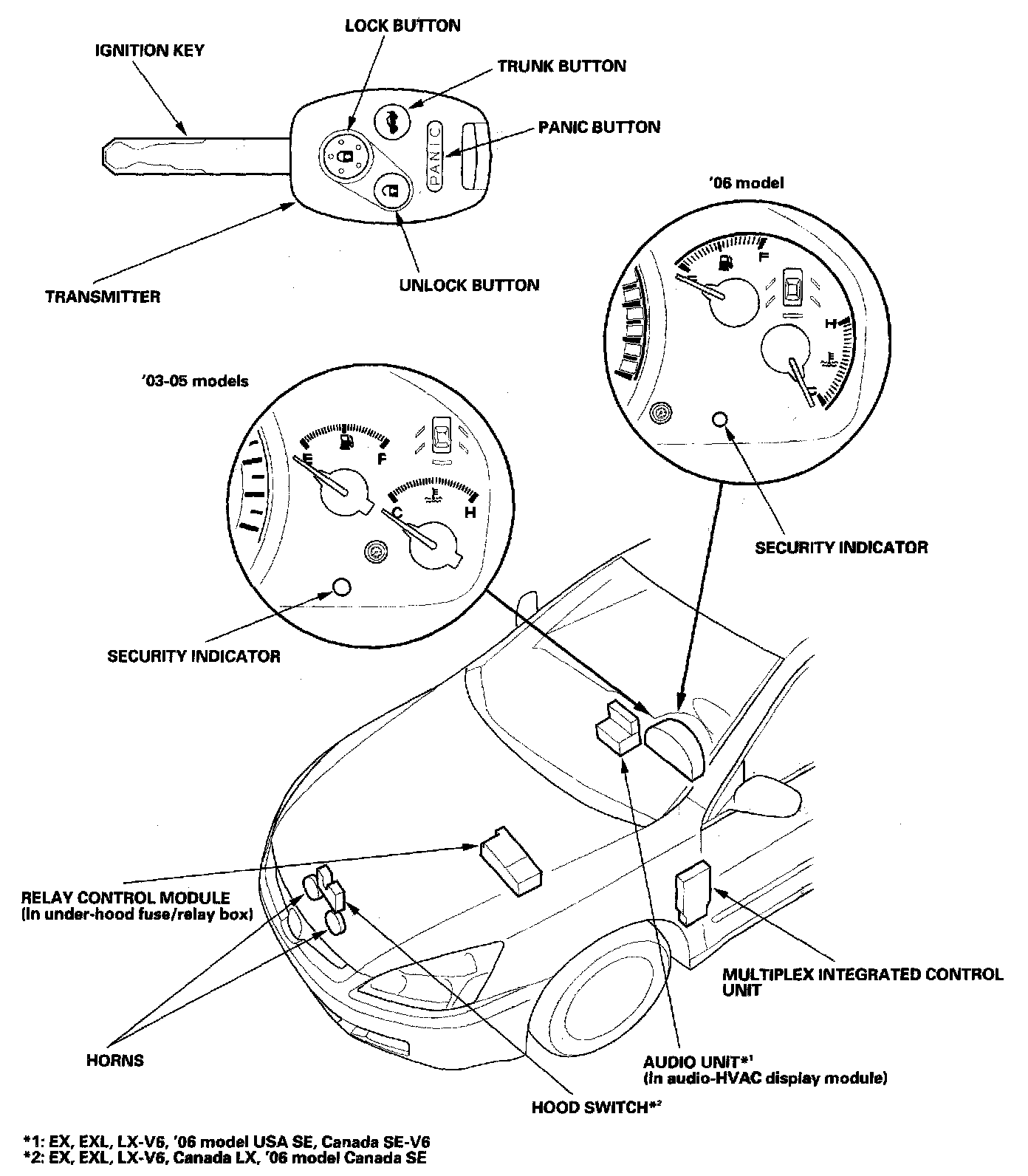

Keyless/power Door Locks/security System - Component Location Index:

Entry Lights Control System - Component Location Index:
