Scan Tool Testing and Procedures

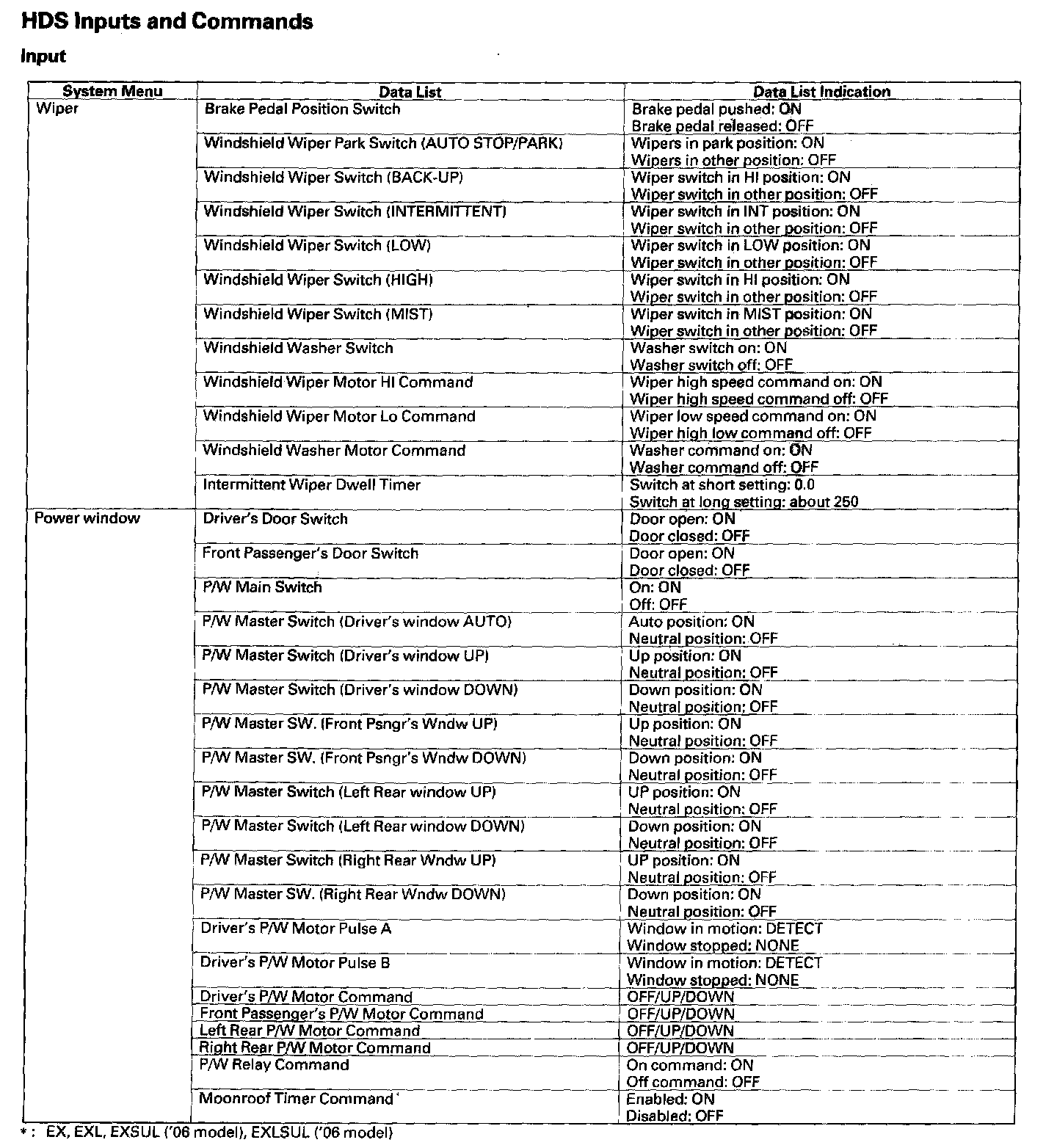

HDS Inputs And Commands - Input Part 1:

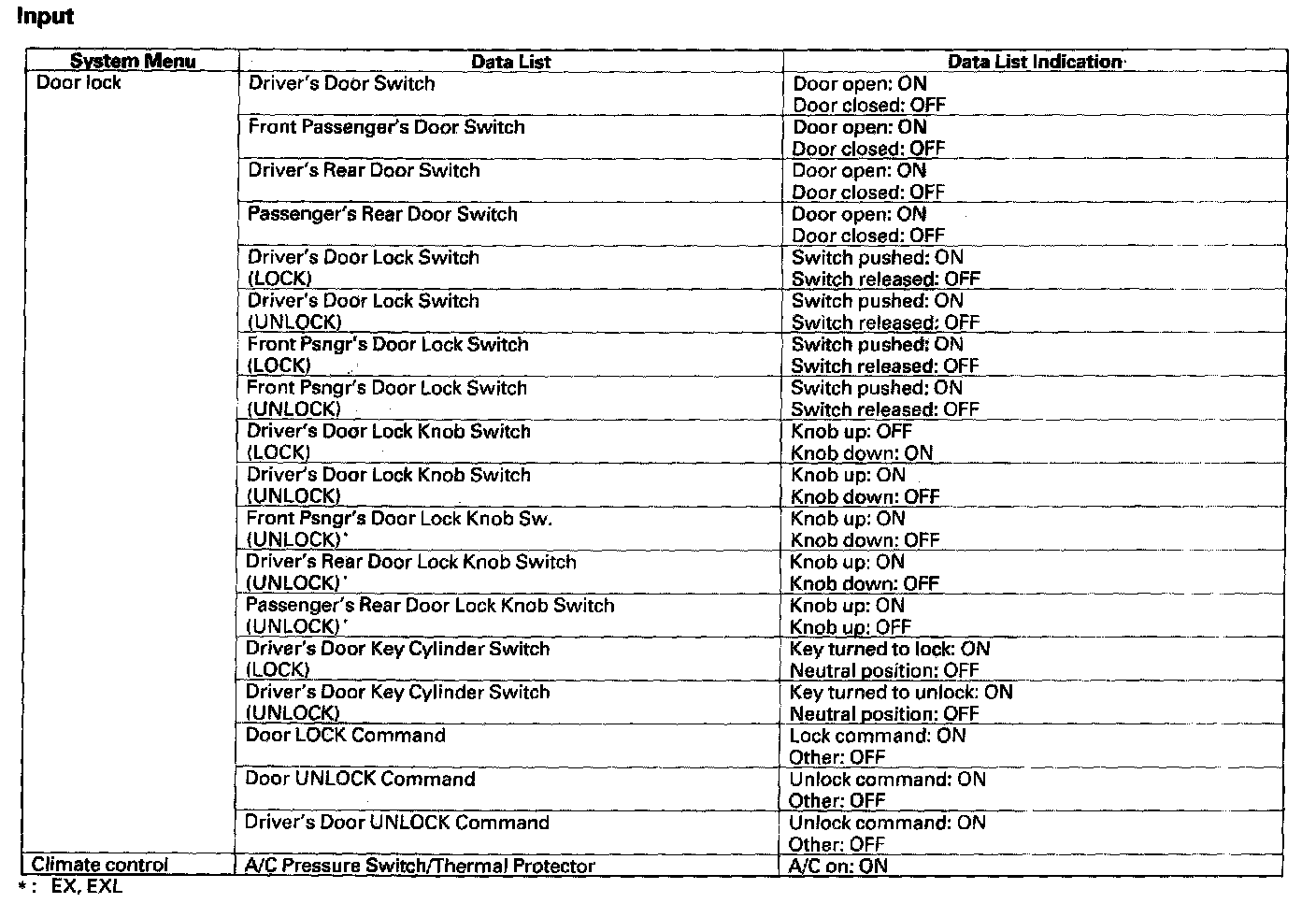

HDS Inputs And Commands - Input Part 2:

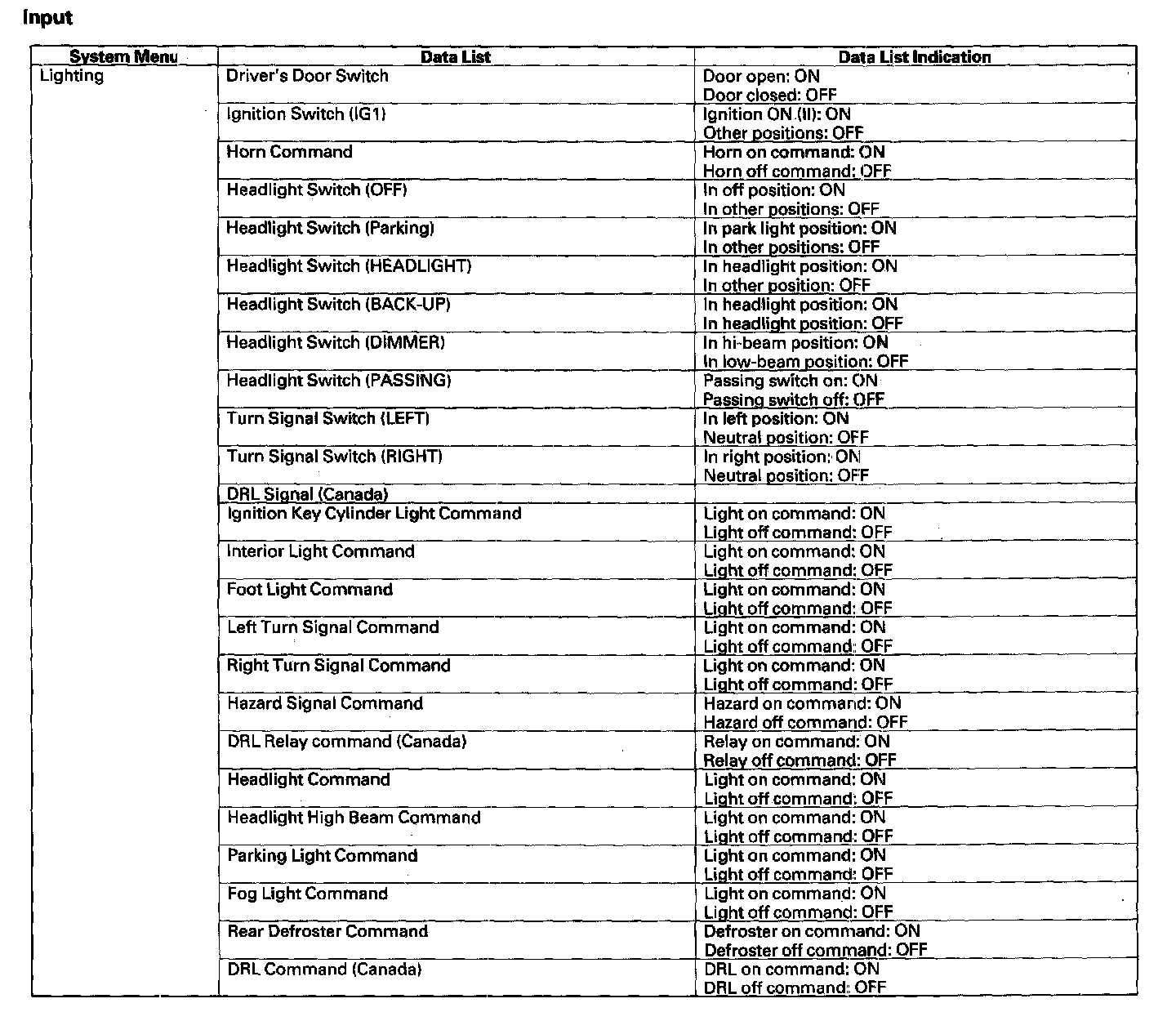

HDS Inputs And Commands - Input Part 3:

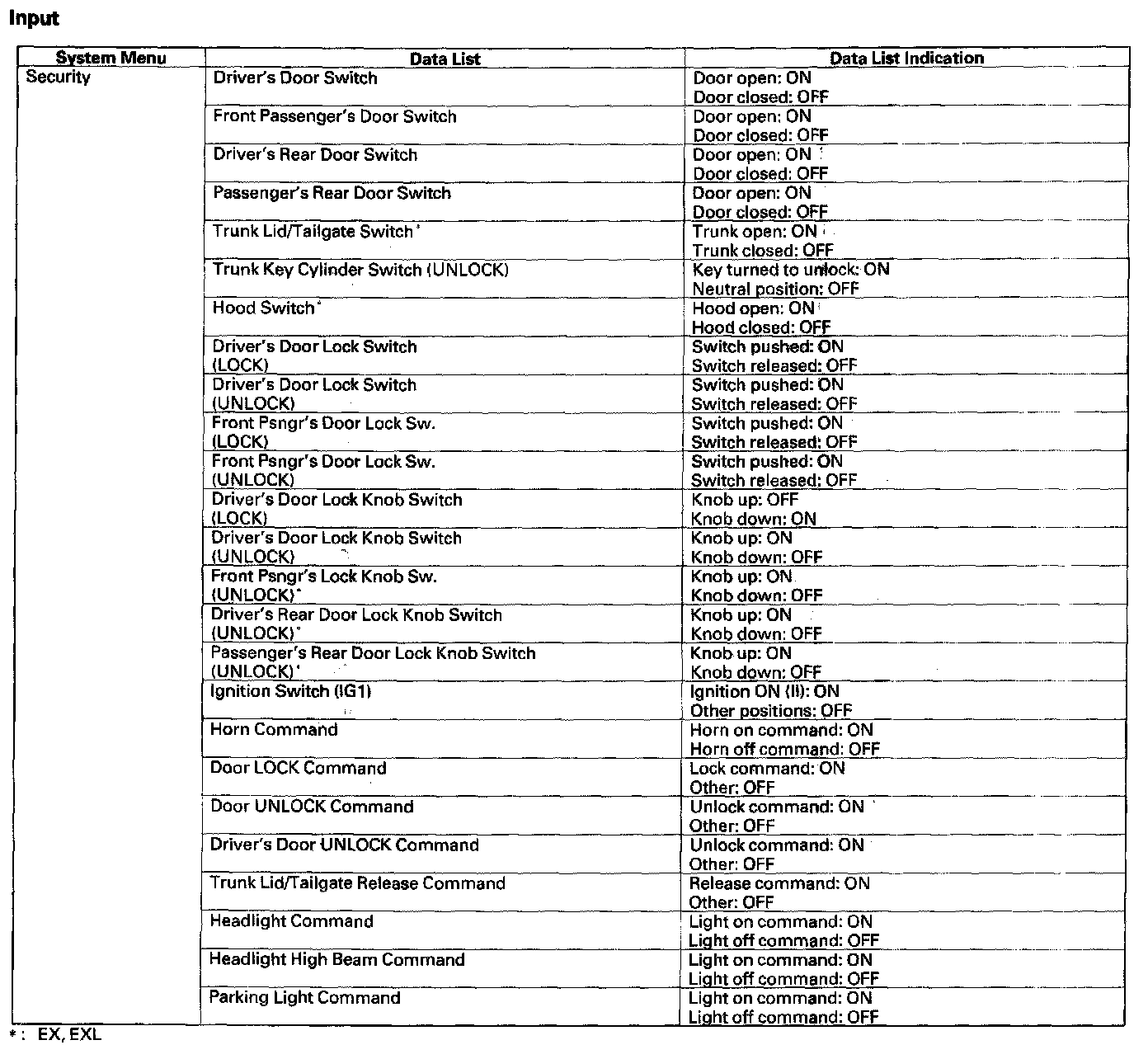

HDS Inputs And Commands - Input Part 4:

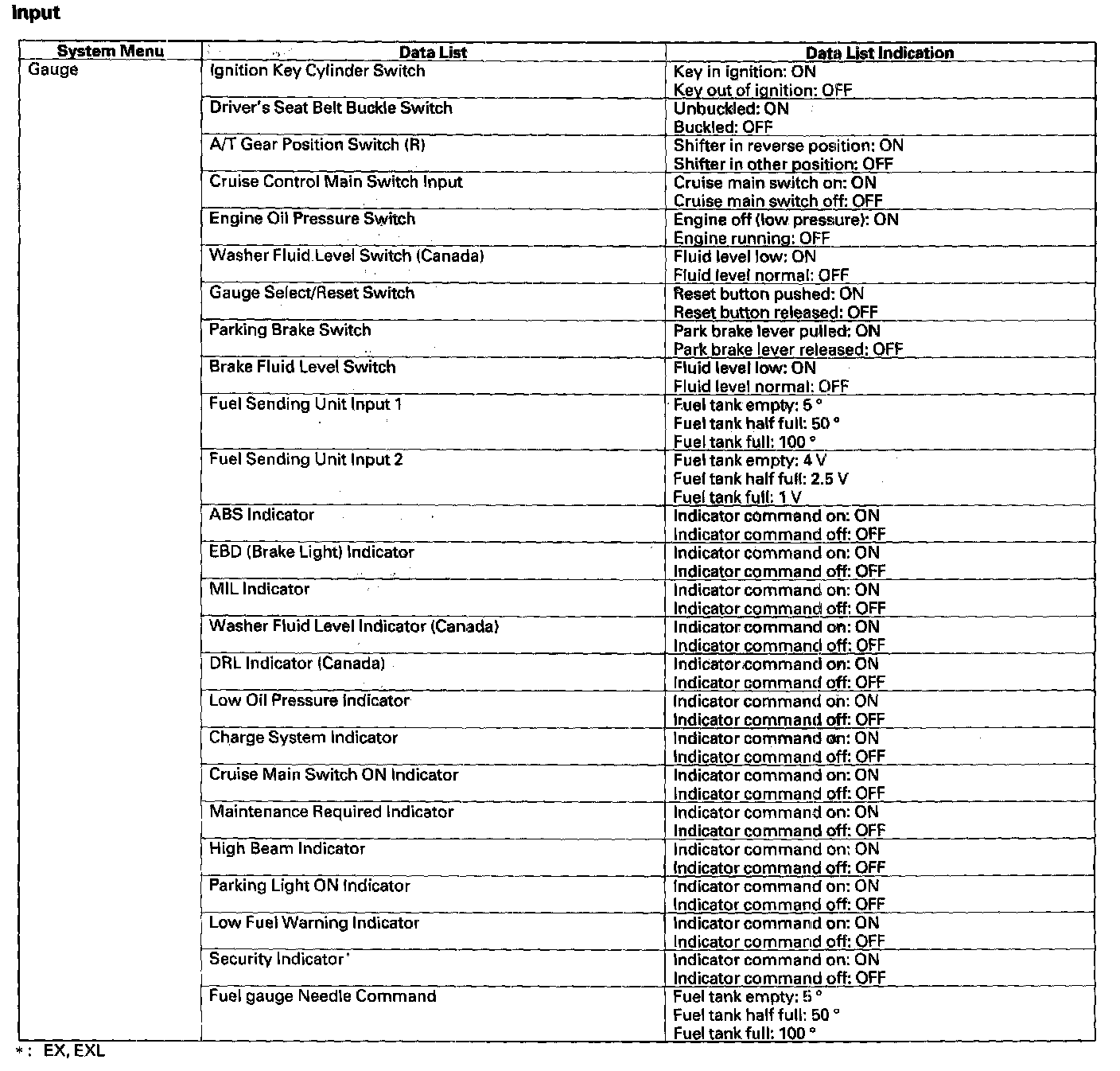

HDS Inputs And Commands - Input Part 5:

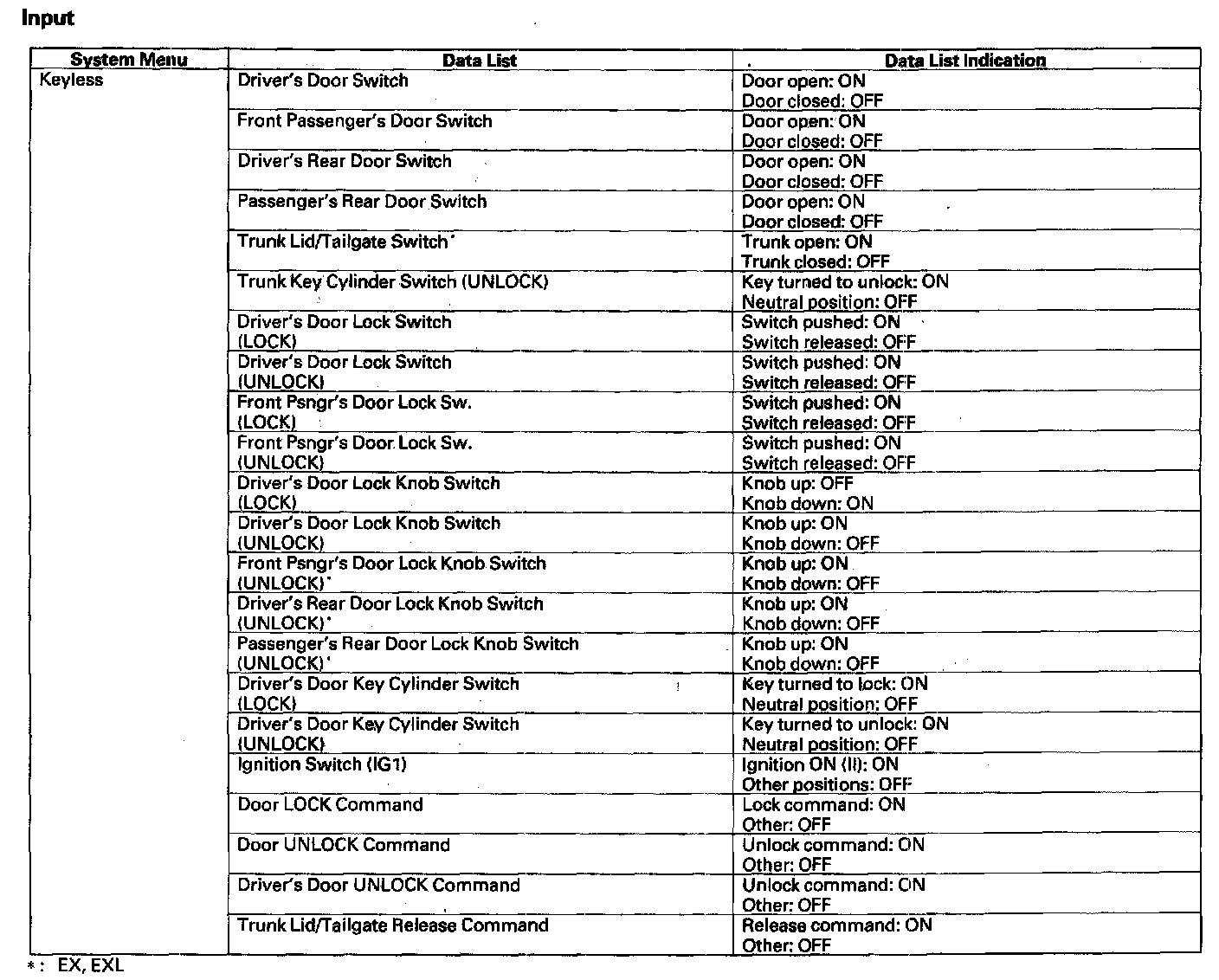

HDS Inputs And Commands - Input Part 6:

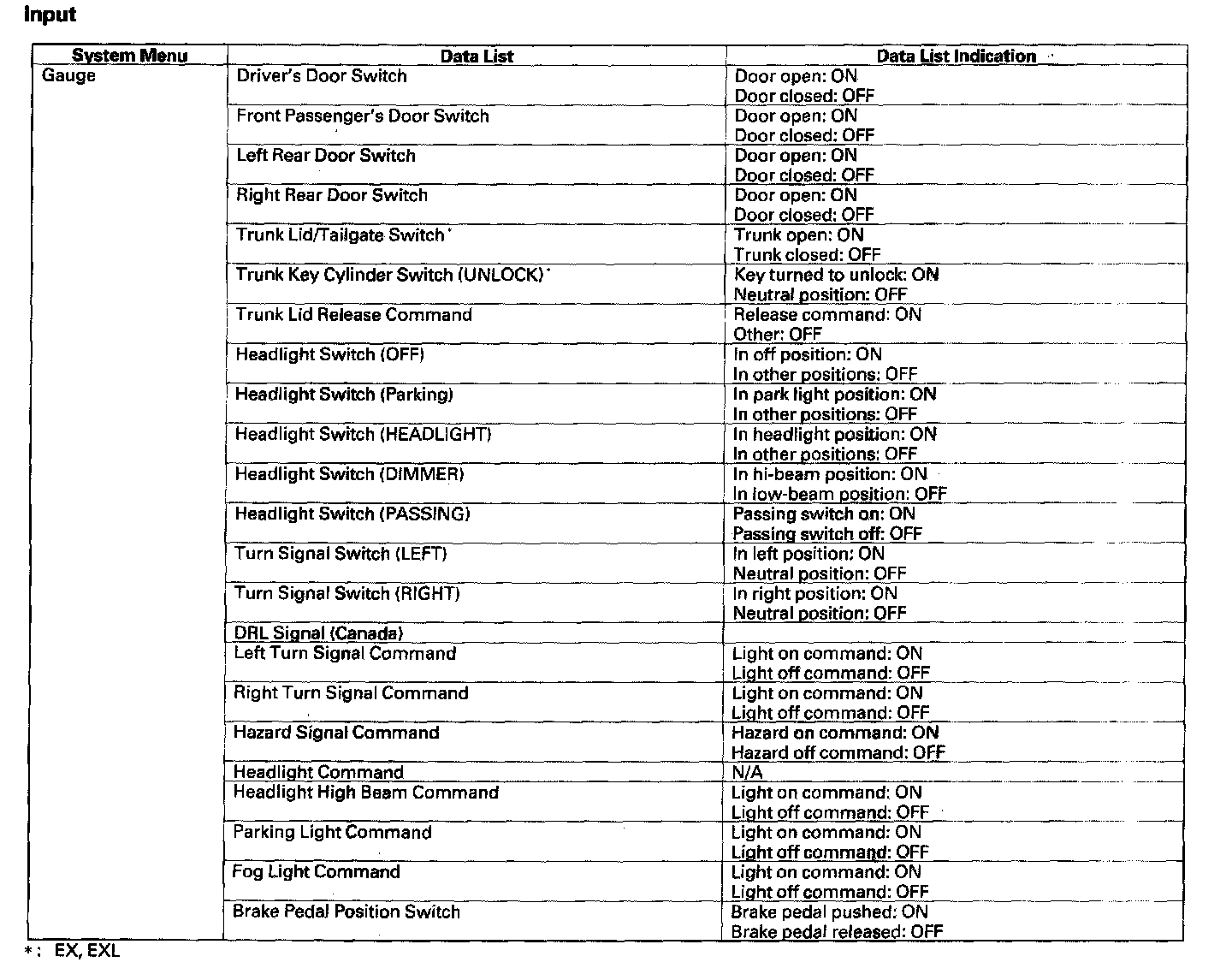

HDS Inputs And Commands - Input Part 7:

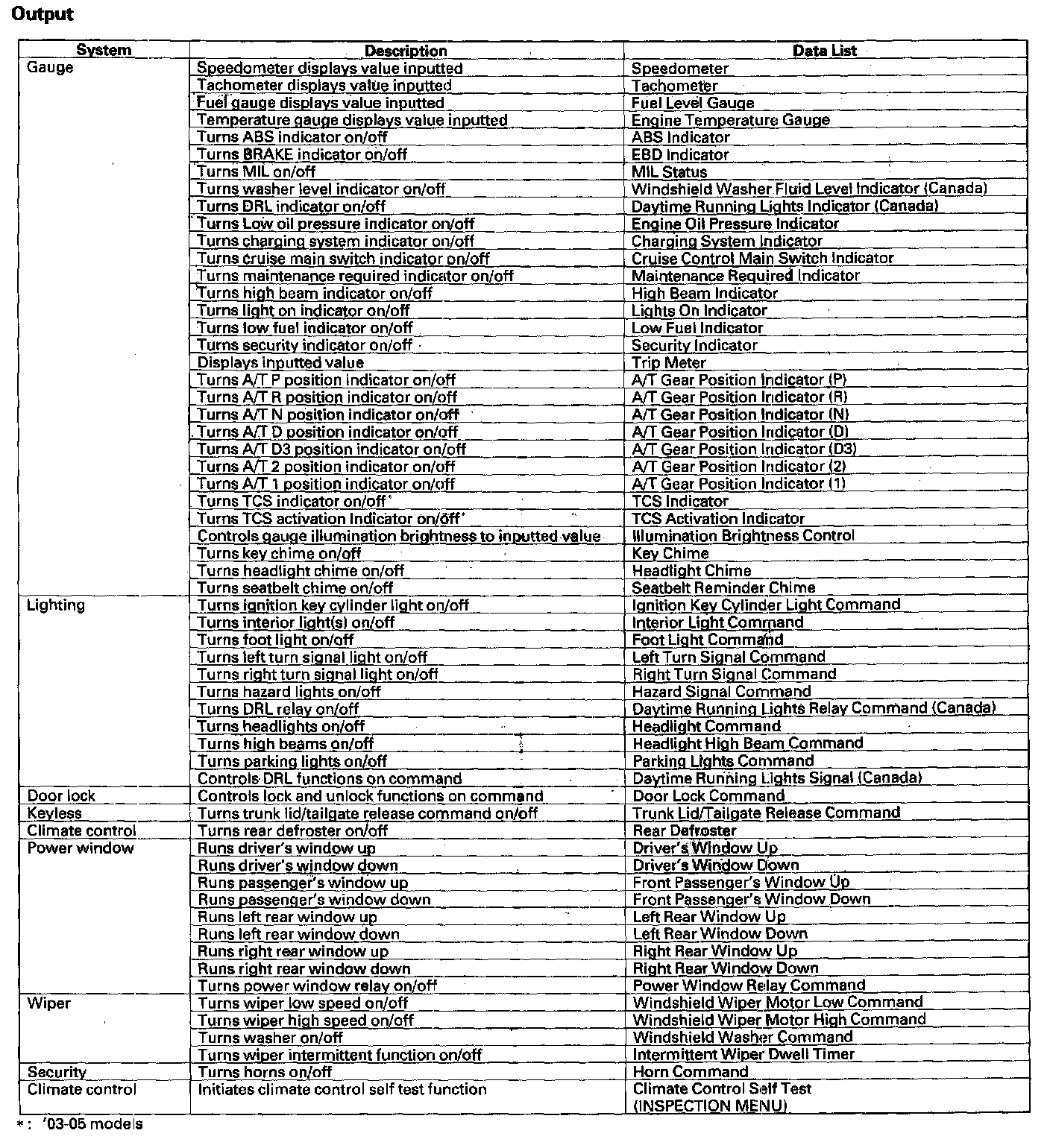

HDS Inputs And Commands - Output:
