Coolant Temperature Sensor/Switch (For Computer): Locations

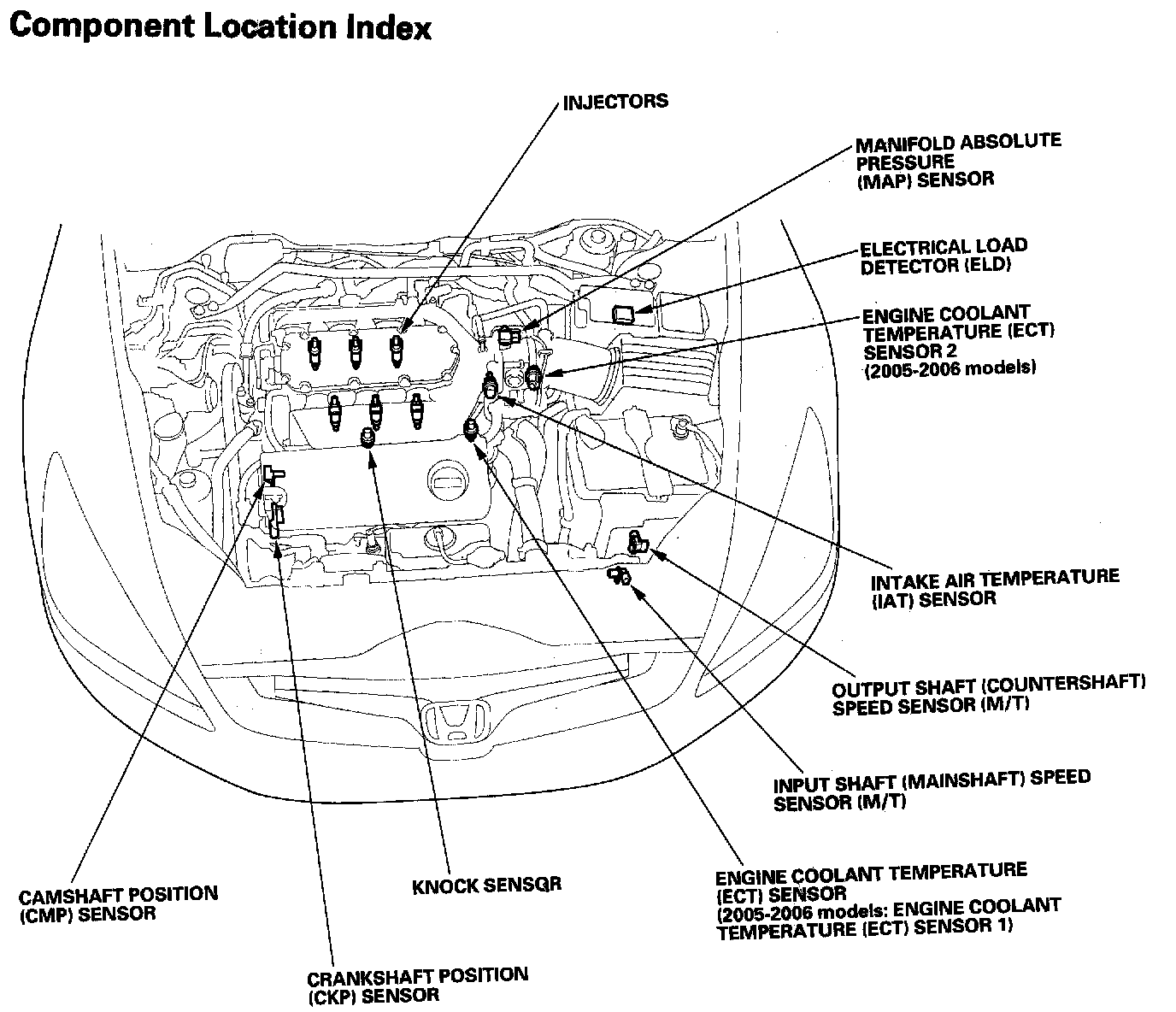

PGM-FI System - Component Location Index:

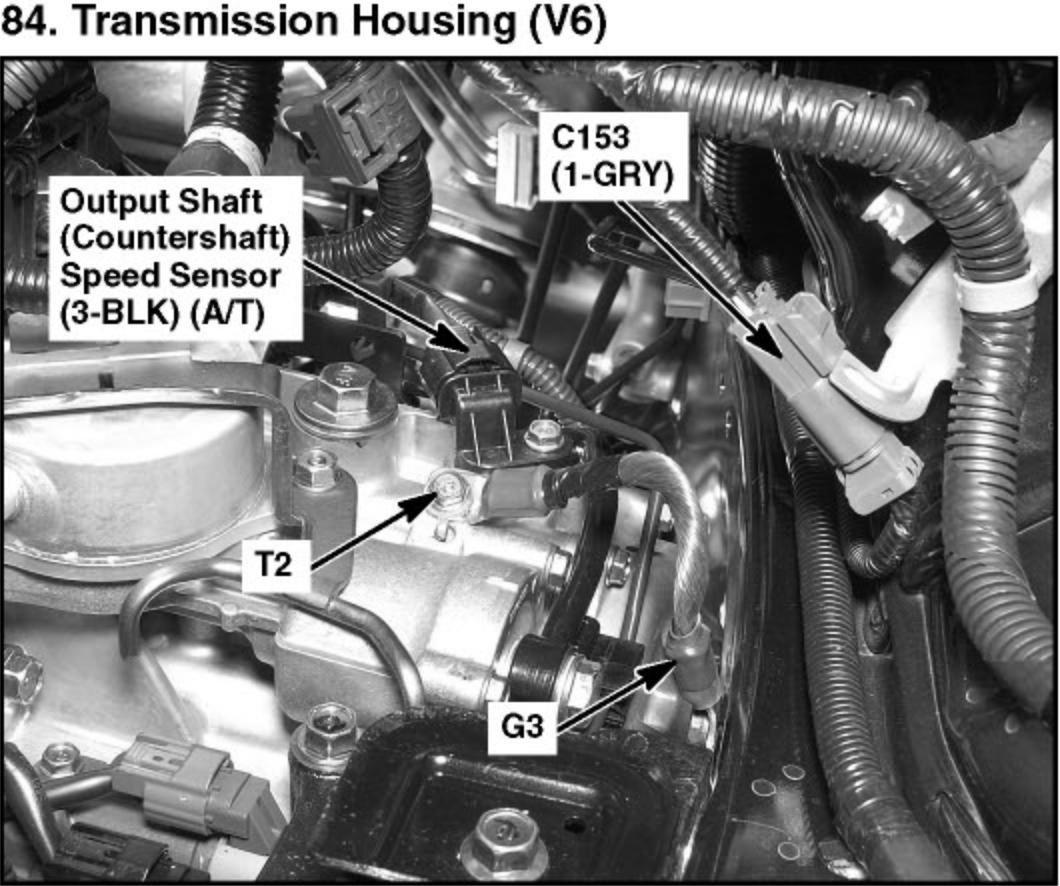

84. Transmission Housing (V6):

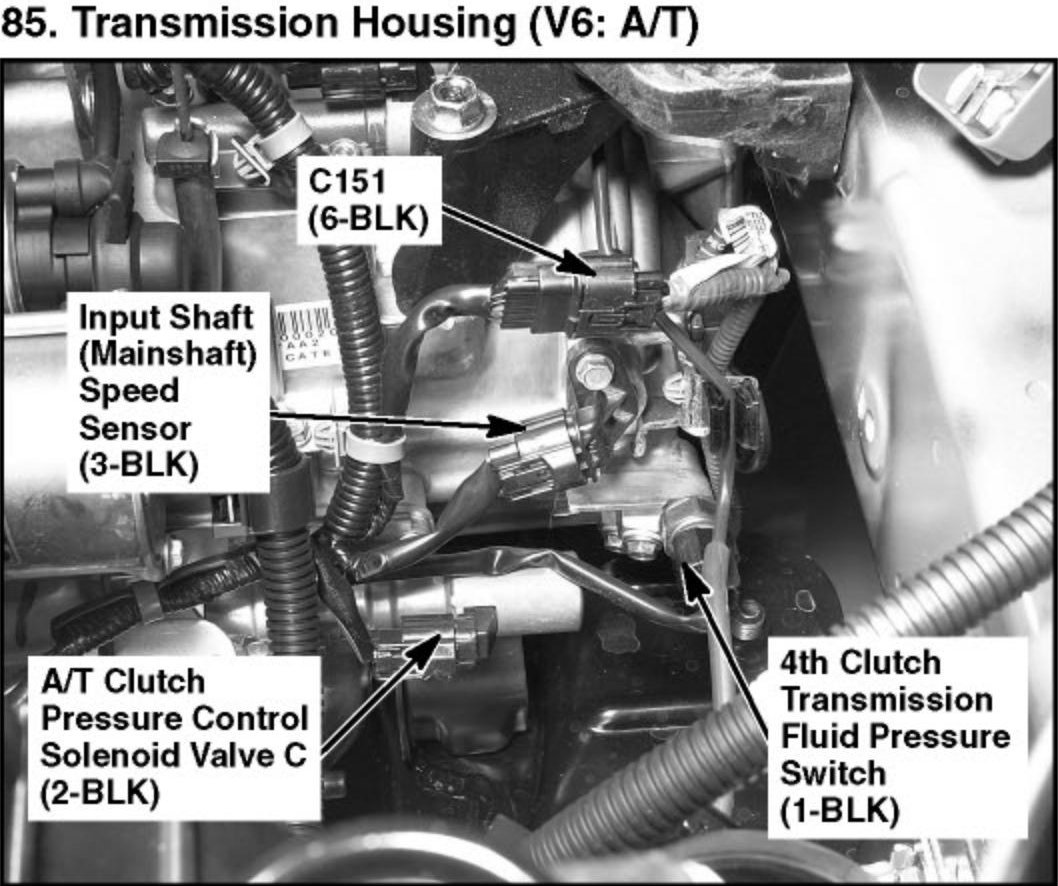

85. Transmission Housing (V6: A/T):

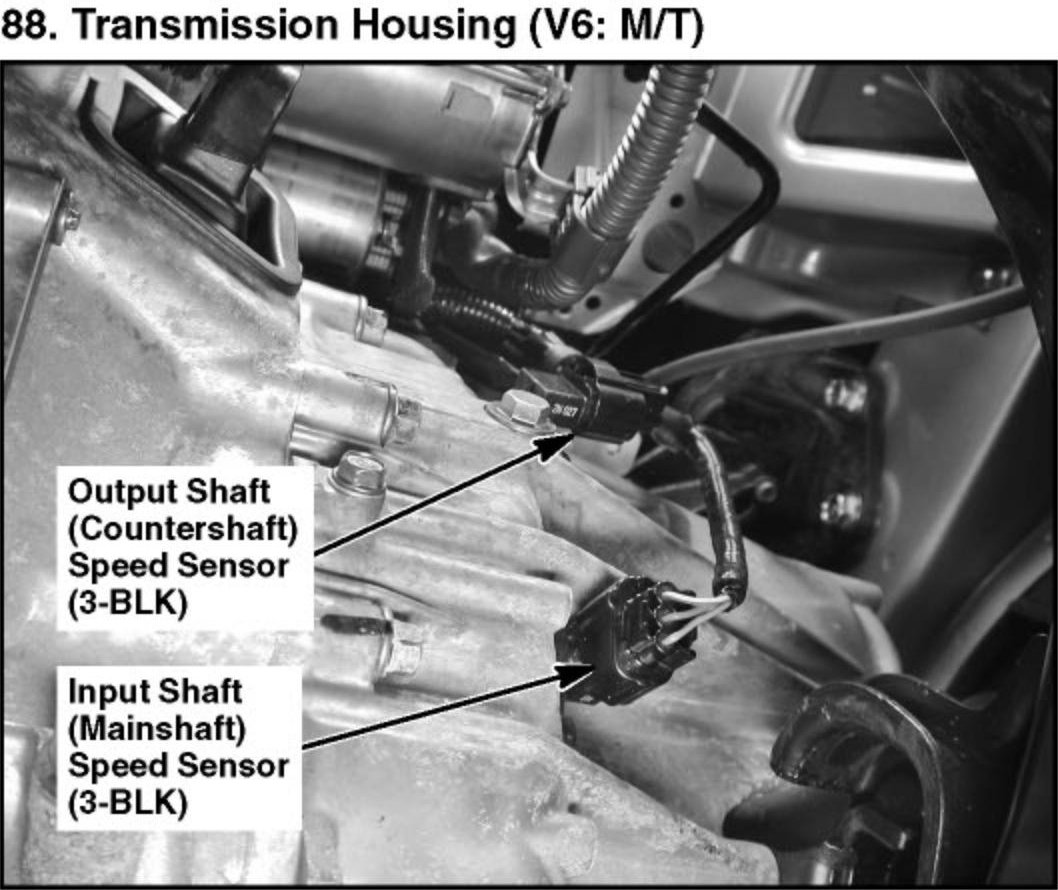

88. Transmission Housing (V6: M/T):
