Impact Sensor

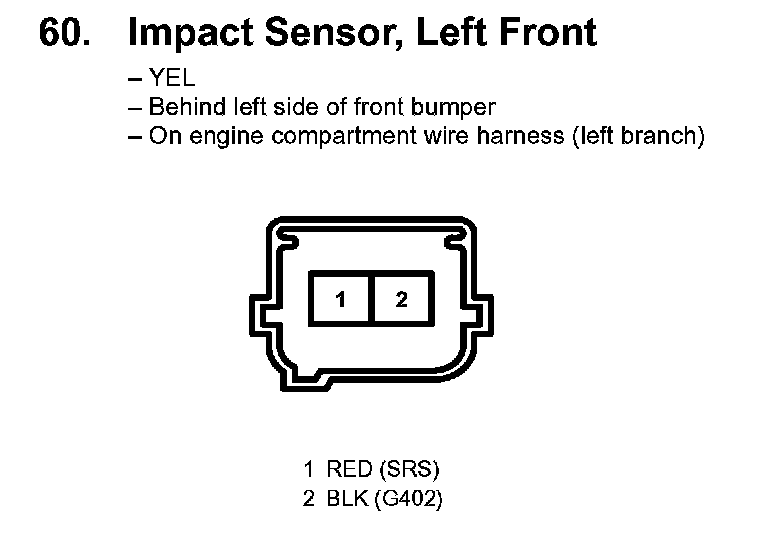

60. Impact Sensor, Left Front:

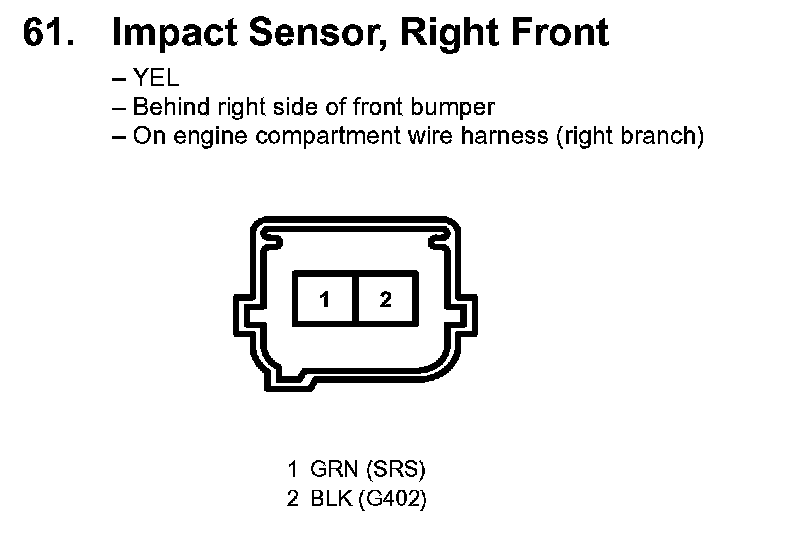

61. Impact Sensor, Right Front:

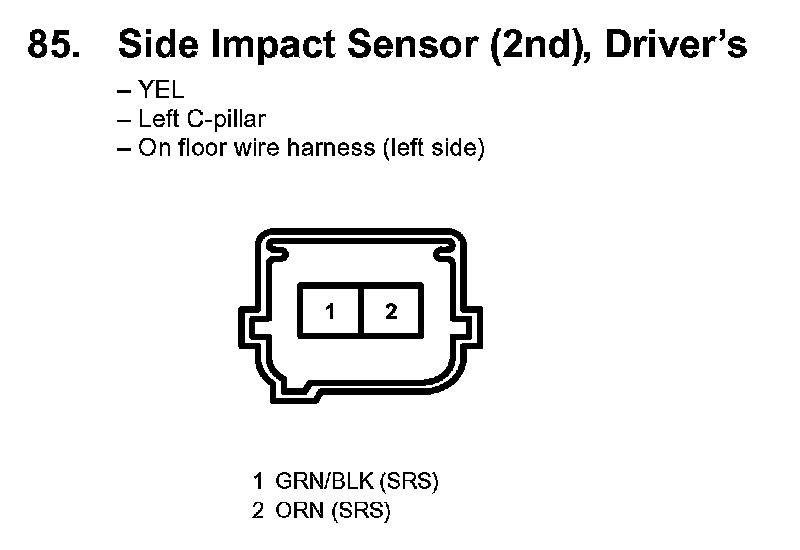

85. Side Impact Sensor (2nd), Driver's:

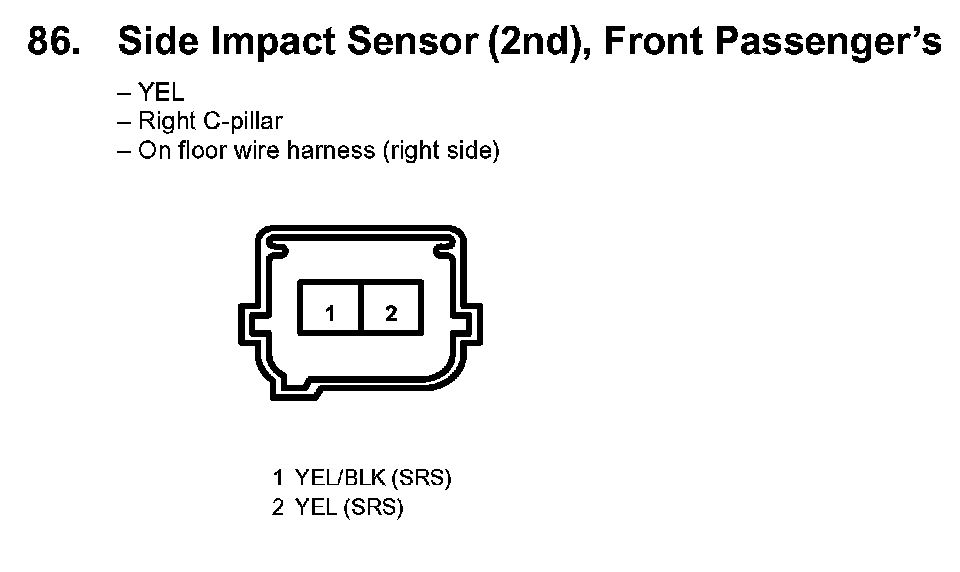

86. Side Impact Sensor (2nd), Front Passenger's:

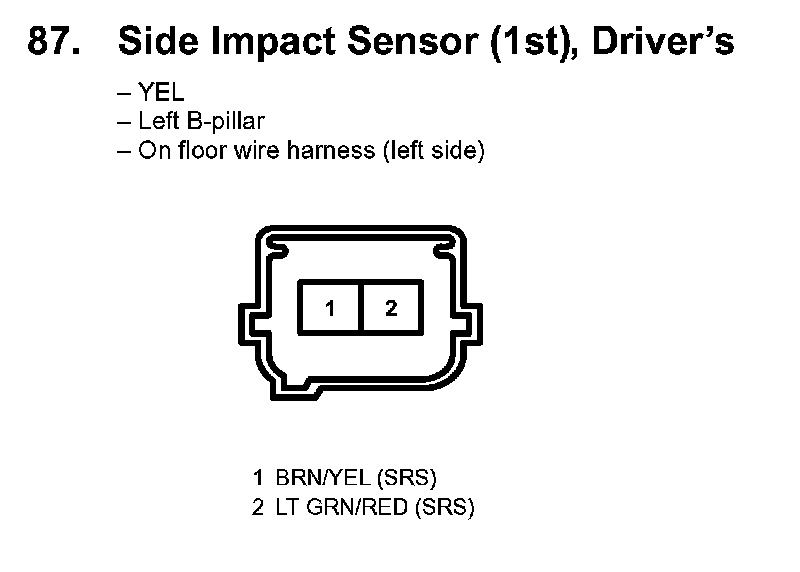

87. Side Impact Sensor (1st), Driver's:

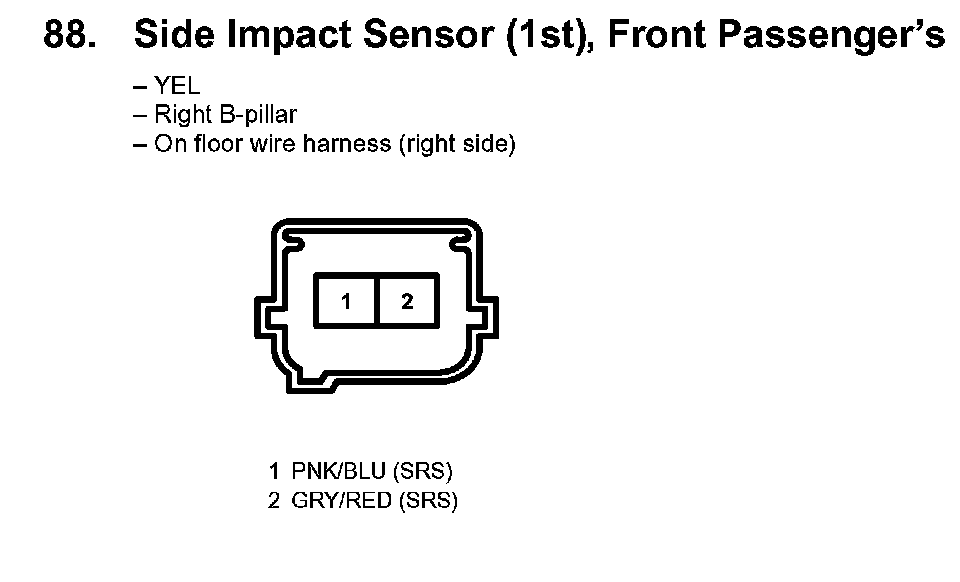

88. Side Impact Sensor (1st), Front Passenger's:
