Power Window Switch

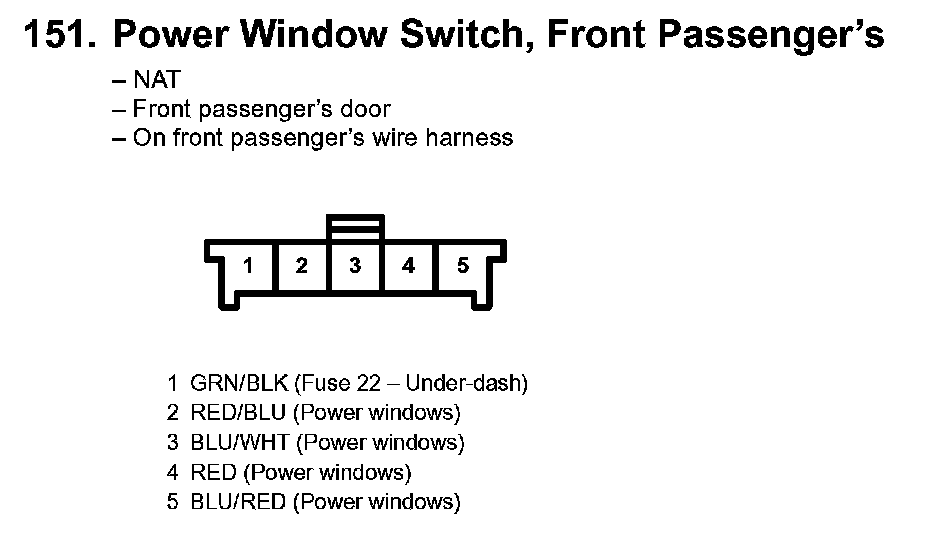

151. Power Window Switch, Front Passenger's:

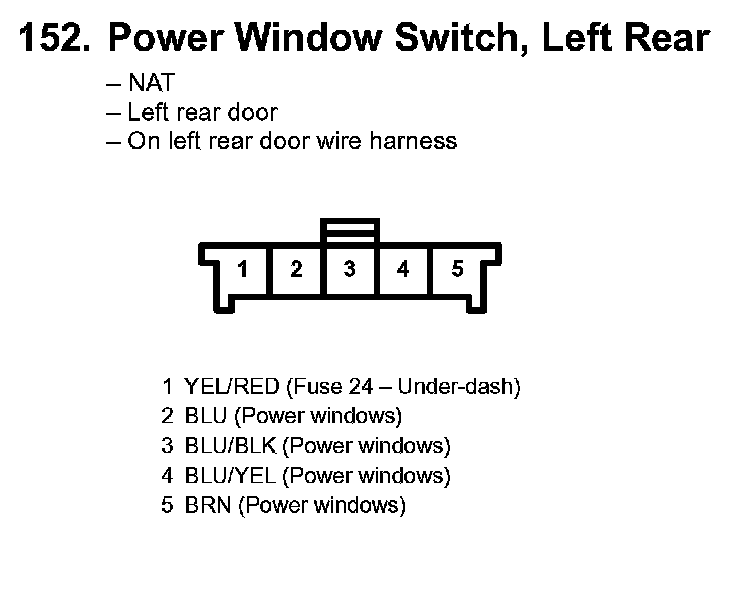

152. Power Window Switch, Left Rear:

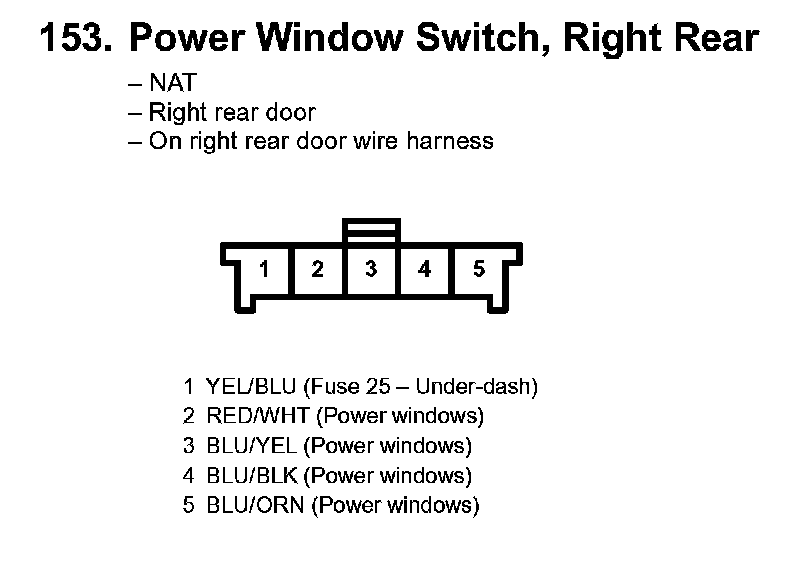

153. Power Window Switch, Right Rear:

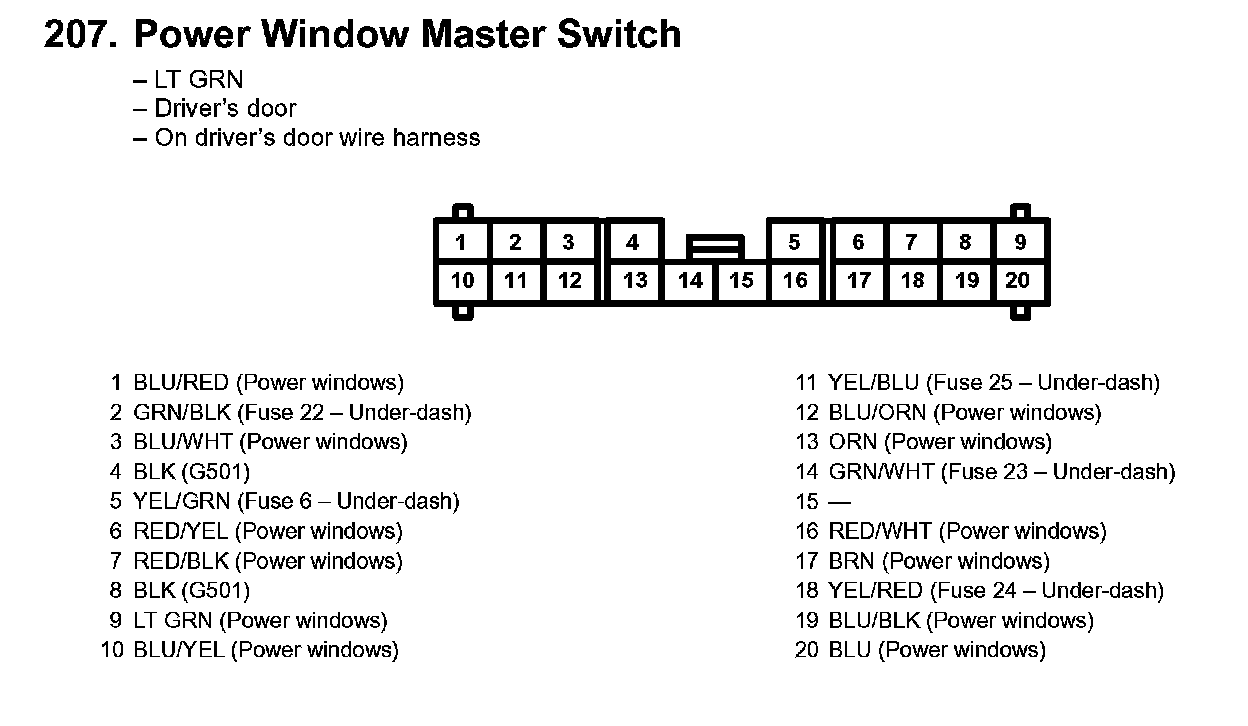

207. Power Window Master Switch:
