Heater Control Panel Removal and Installation

Heater Control Panel Removal and Installation

1. Remove the center panel.

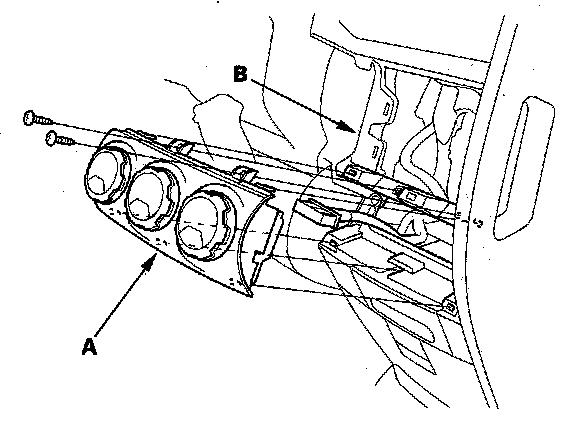

2. Remove the self-tapping screws and the heater control panel (A) from the dashboard (B).
3. Install the control panel in the reverse order of removal. After installation, operate the control panel controls to see if they work properly.
4. Run the self-diagnosis function to confirm that there are no problems in the system.
