Key Interlock Solenoid Test

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repair or service.

1. Remove the driver's dashboard lower cover and lower steering column cover.
2. Disconnect steering lock assembly connector.
3. Insert the ignition key in the key cylinder, then turn the ignition key to ACC (I).
4. Connect the battery positive terminal to steering lock assembly connector terminal No. 4, and connect the battery negative terminal to No. 3 terminal. Make sure that the ignition key cannot be turned to LOCK (0) position. Release the battery terminals, and make sure that the key can be turned to LOCK (0) position and removed from the cylinder.

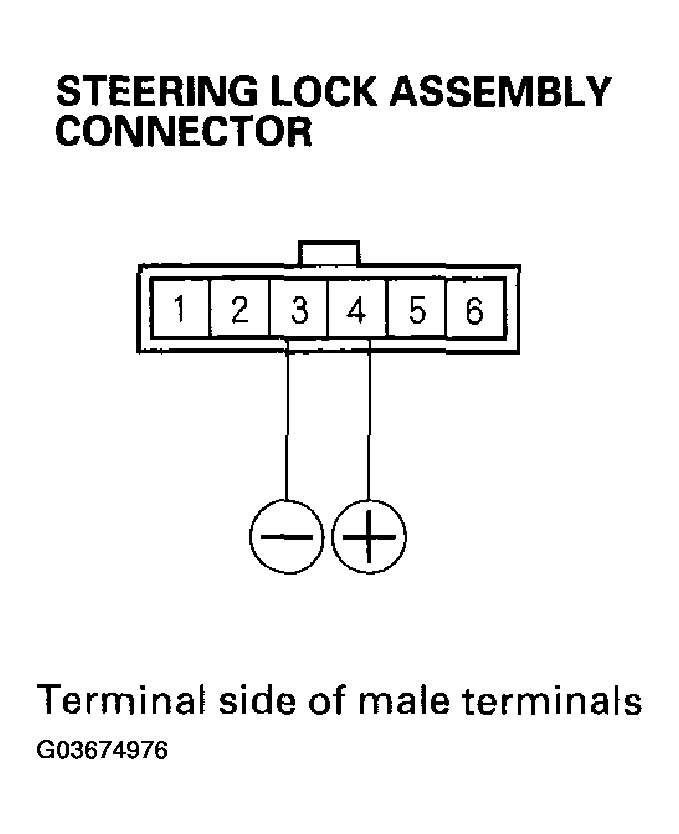

   Fig 1: Connecting Steering Lock Assembly Connector Terminal 4 To Positive And 3 To Negative Terminal

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If the key interlock solenoid works improperly, replace the ignition key cylinder/steering lock assembly (see STEERING LOCK REPLACEMENT ).
