PCM Electrical Connections

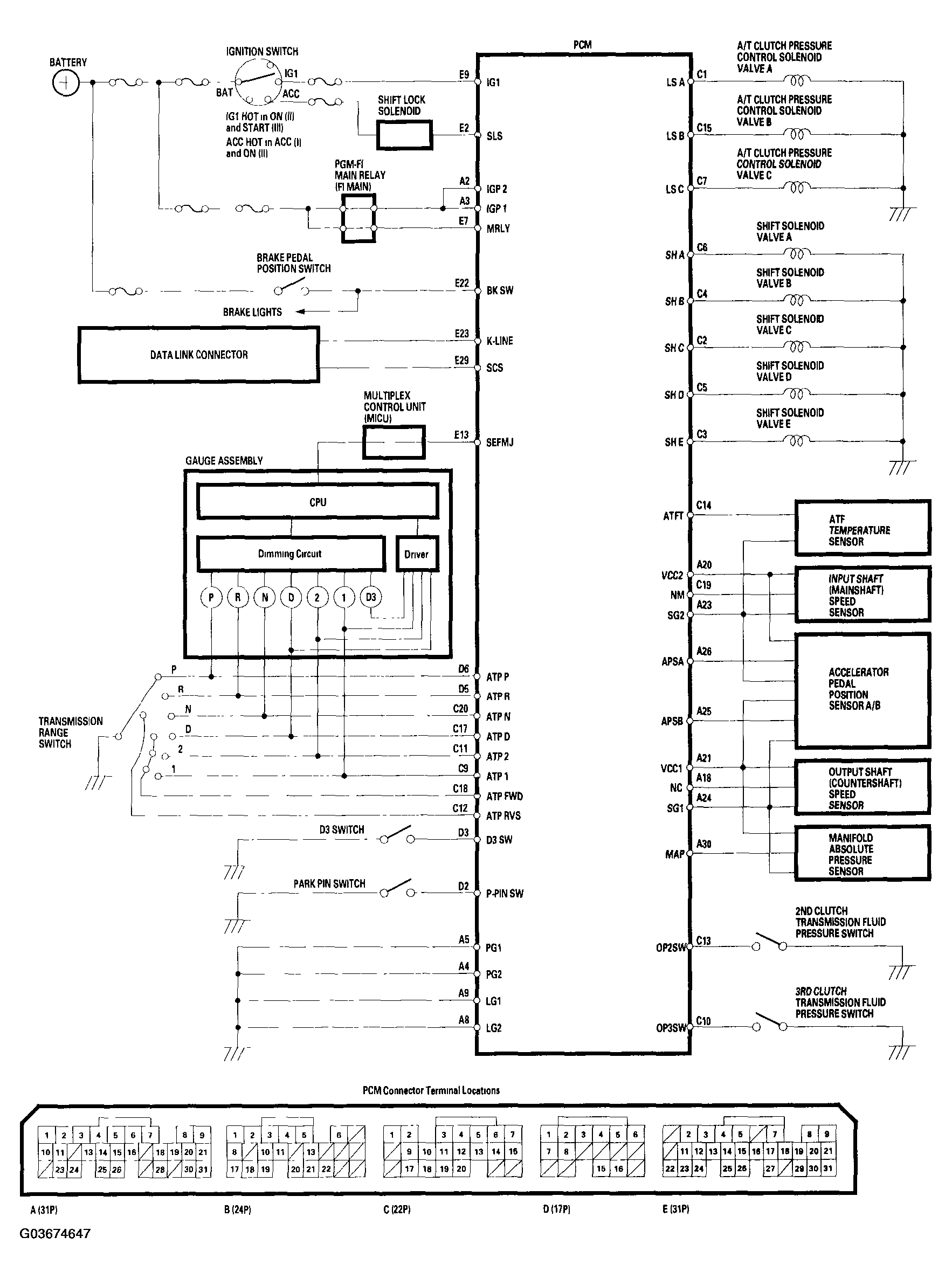

Fig 1: Automatic Transmission PCM Electrical Connections Diagram
G03674647Courtesy of AMERICAN HONDA MOTOR CO., INC.
