DTC P0685: Engine Control Module (ECM) Power Control Circuit/Internal Circuit Malfunction (K20Z3 Engine): Notes

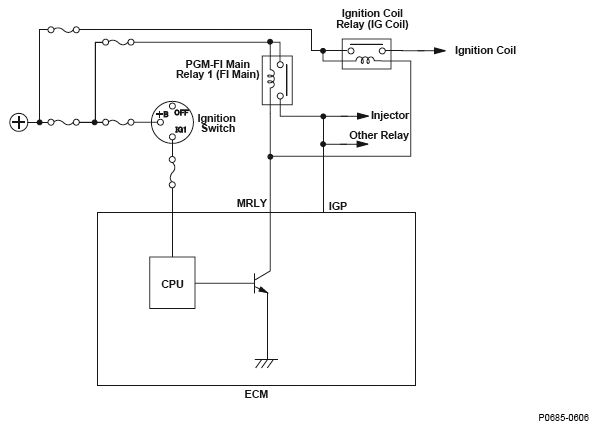

Fig 1: Engine Control Module (ECM) Power Control - Circuit Diagram
G04825655
