Injector Control Module (GX) Connector End View

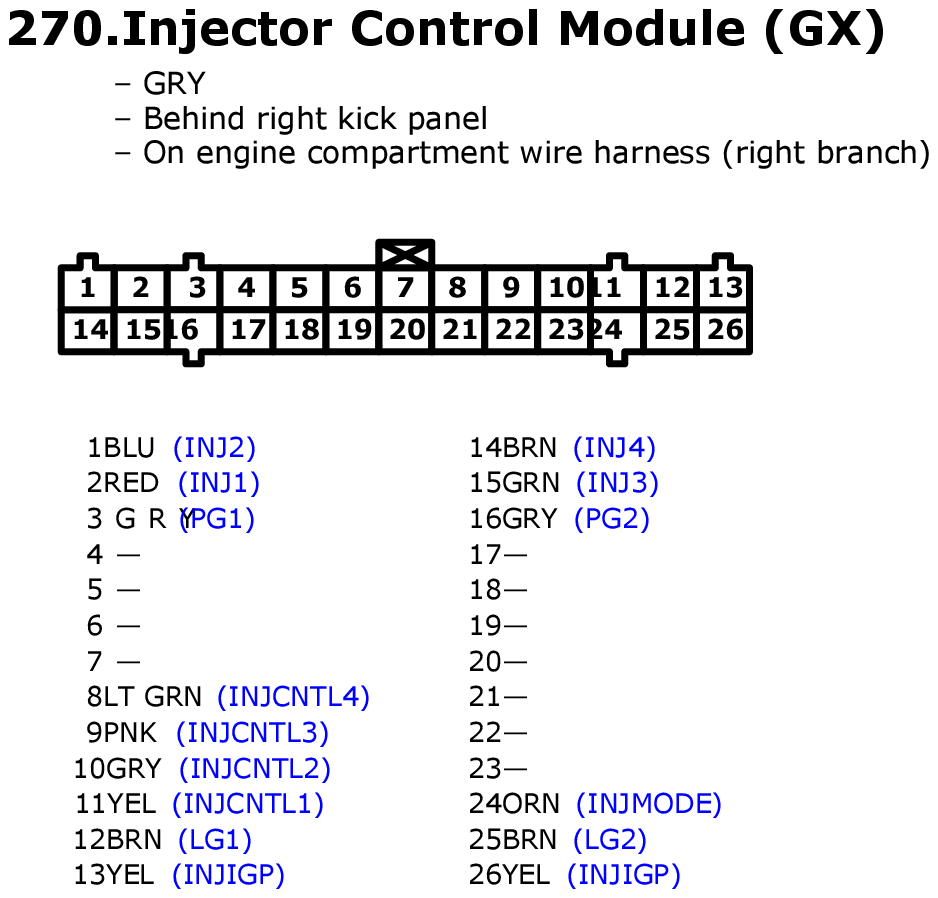

Fig 1: Injector Control Module (GX) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
