Keyless Entry Module: Service and Repair

Immobilizer-keyless Control Unit Replacement

1. Remove the driver's dashboard lower cover.
2. Remove the steering column covers.

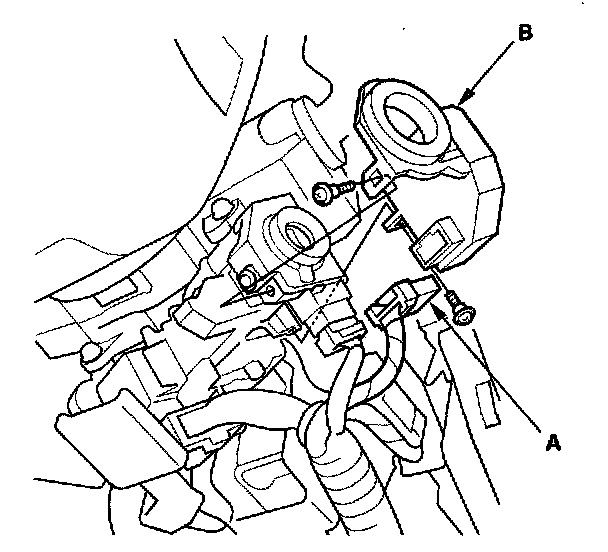

3. Disconnect the 7P connector (A) from the immobilizer-keyless control unit (B).
4. Remove the two screws and the immobilizer-keyless control unit.
5. Install the immobilizer-keyless control unit in the reverse order of removal.
6. After replacement, register the immobilizer-keyless control unit, and make sure the immobilizer system work properly.
