Intelligent Power Unit Module (IPU)/IPU Air Duct Replacement

IPU Module Air Duct Removal/Installation
1. Remove the spare tire lid and the trunk front trim panel.

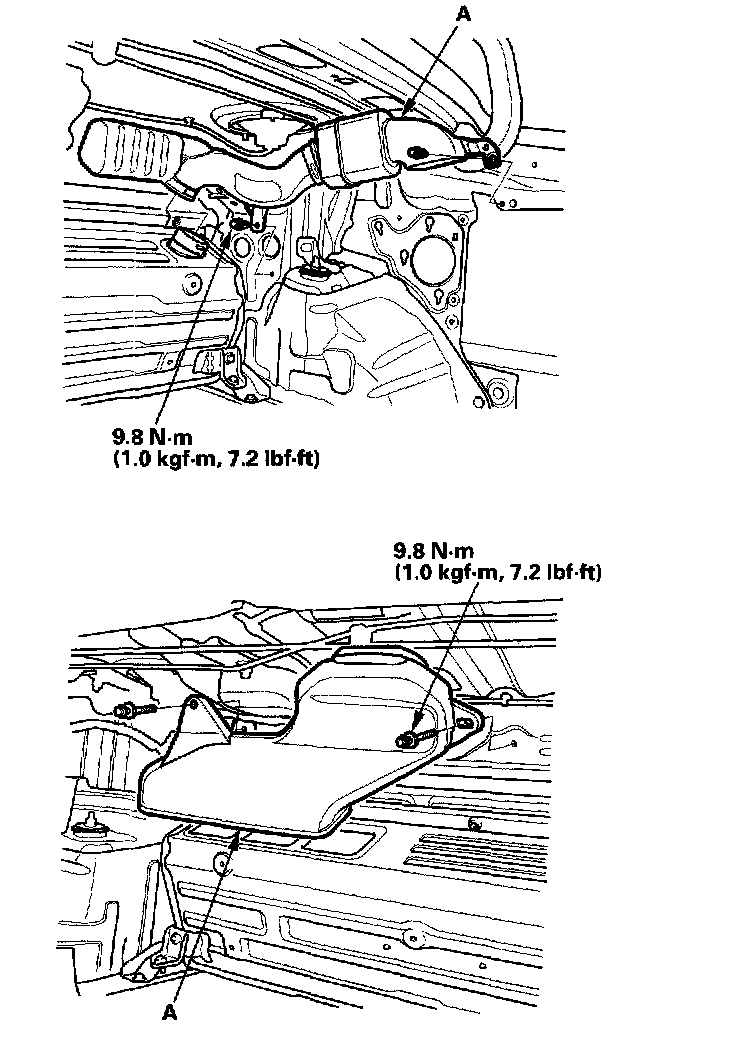

2. Remove the IPU module air ducts (A).





3. Install the parts in the reverse order of removal.
