Intelligent Power Unit Module (IPU)/IPU Module Fan Replacement

IPU Module Fan Replacement

NOTE: Put on gloves to protect your hands from electrical shock.

IMA components are located in this area. The IMA is a high-voltage system. You must be familiar with the IMA system before working on or around it. Make sure you have read the IMA service precautions before doing repairs or service.

1. Remove the PCU assembly.

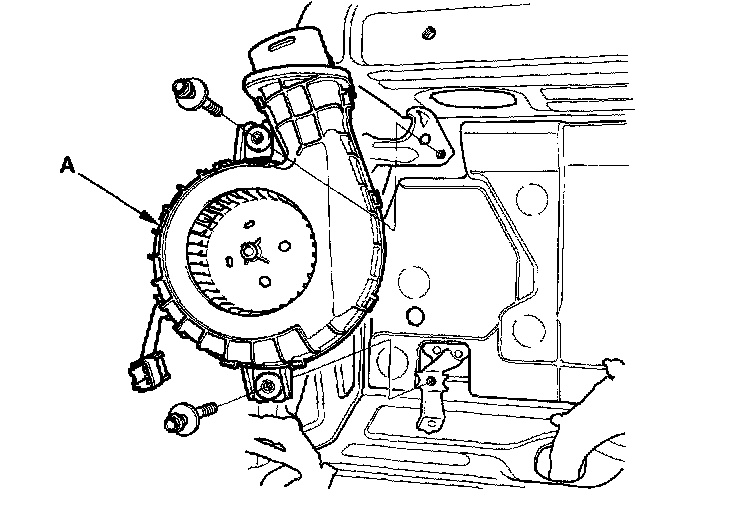

2. Remove the IPU module fan (A).





3. Install the parts in the reverse order of removal.
