Coolant Temperature Sensor/Switch (For Computer): Locations

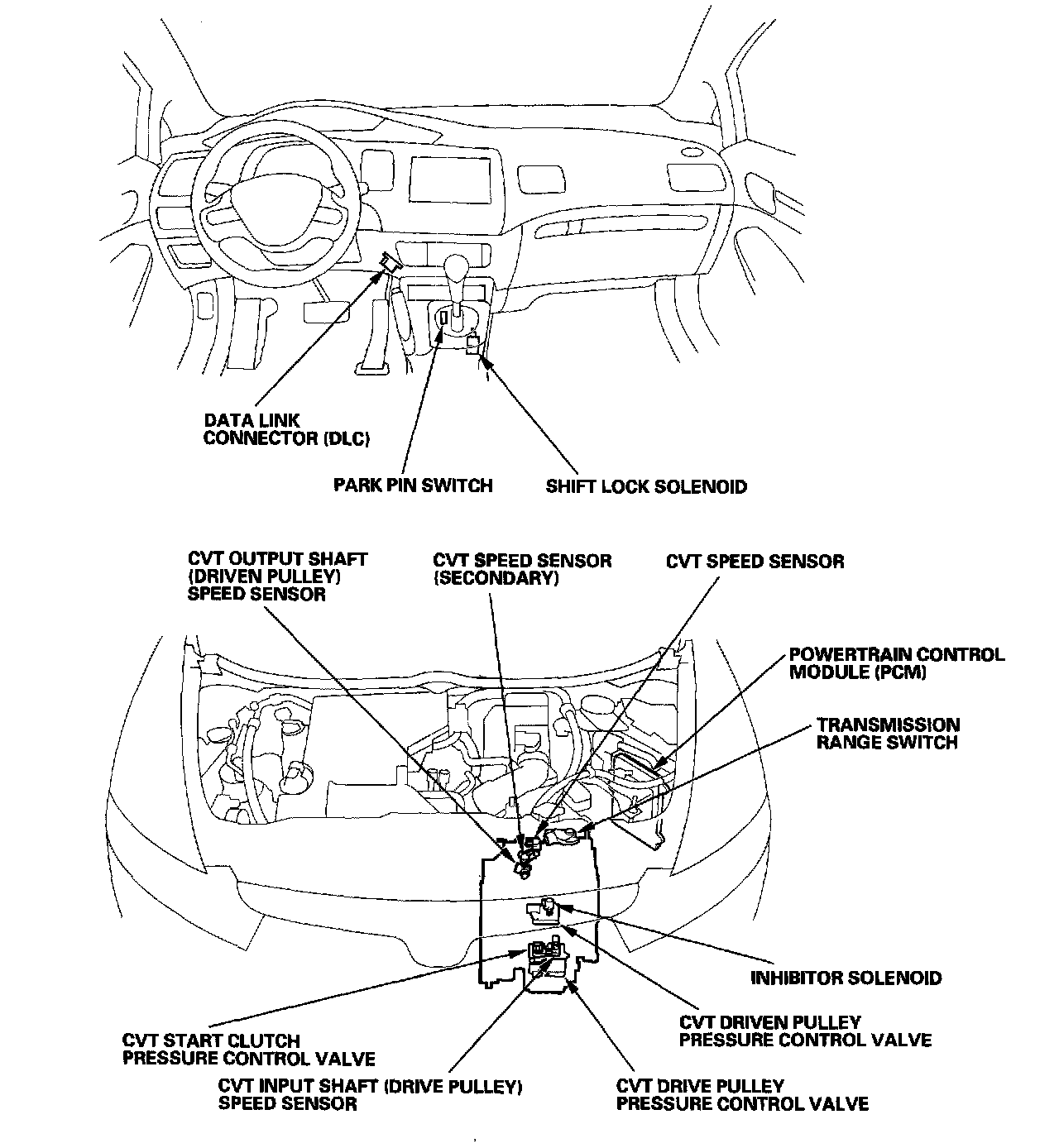

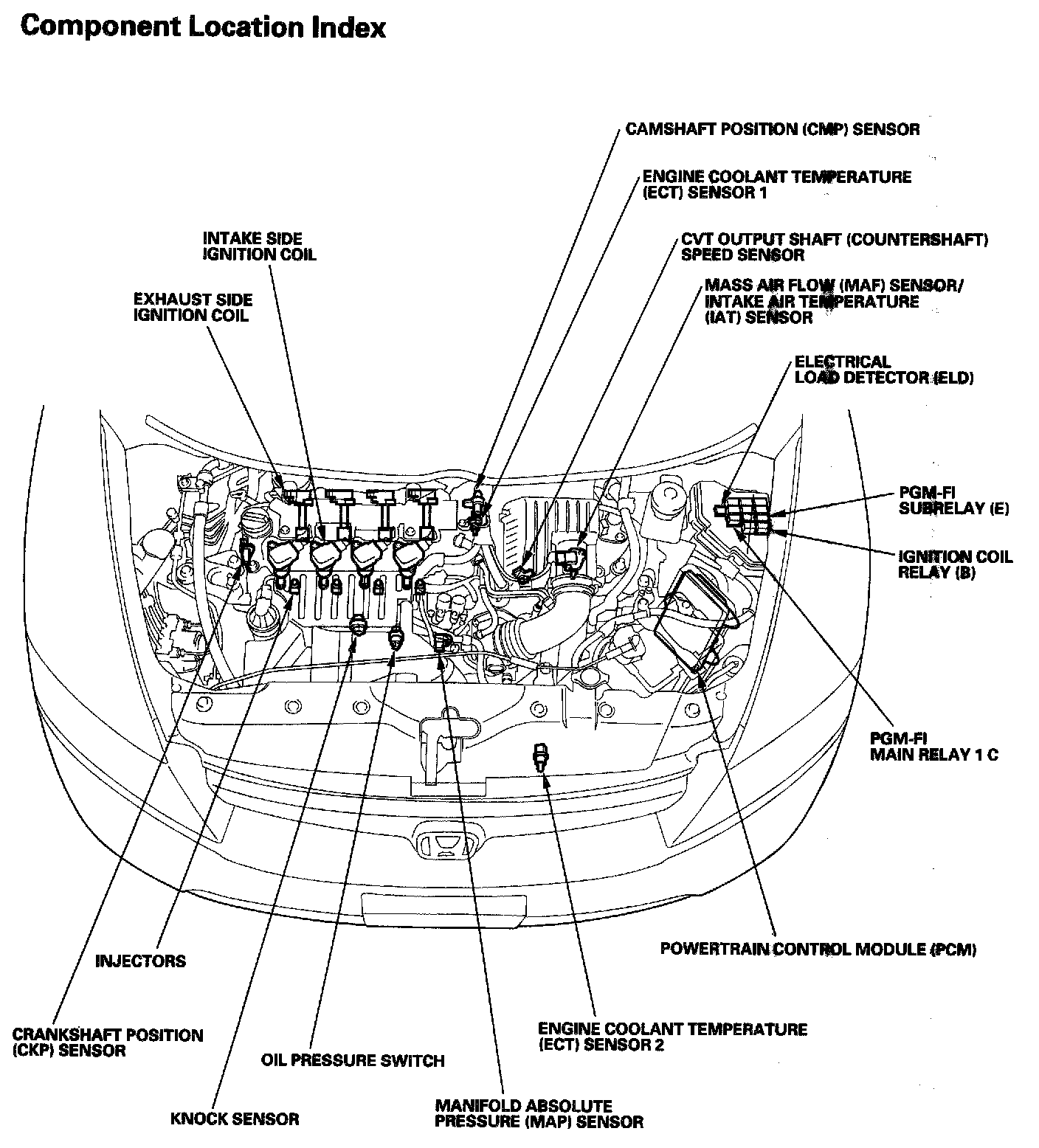

PGM-FI System - Component Location Index:

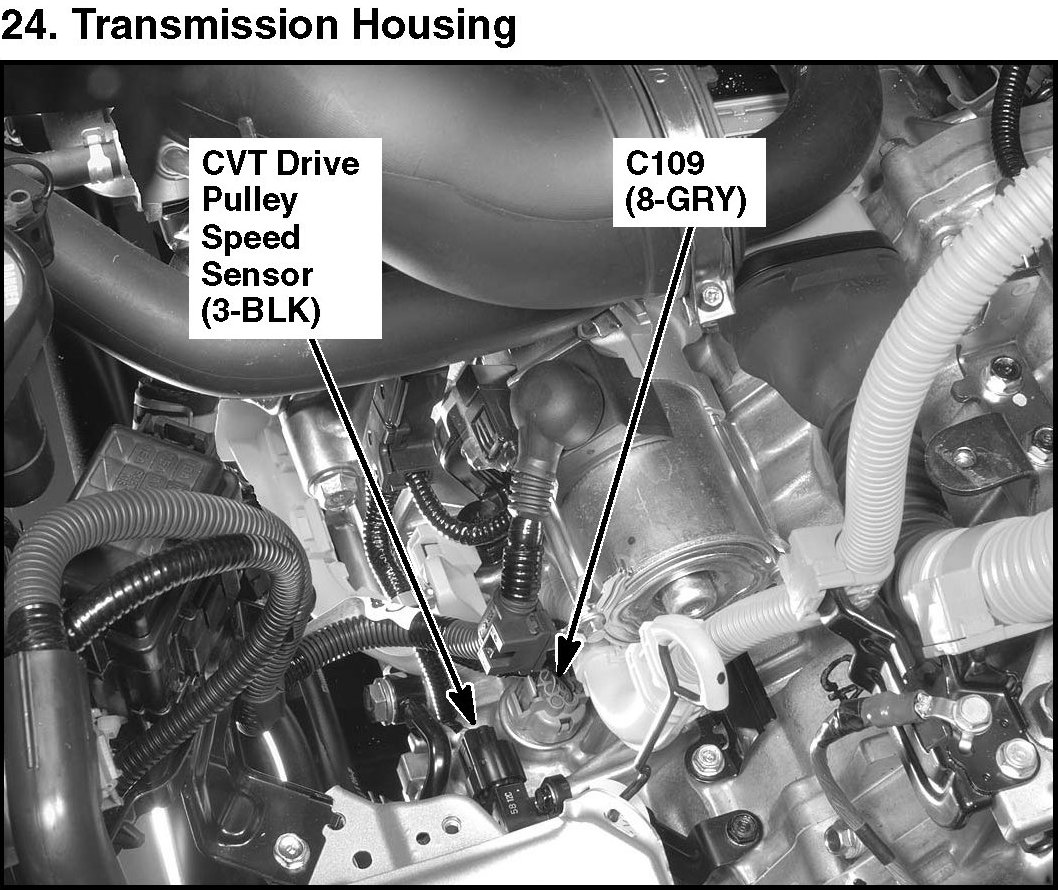

24. Transmission Housing:

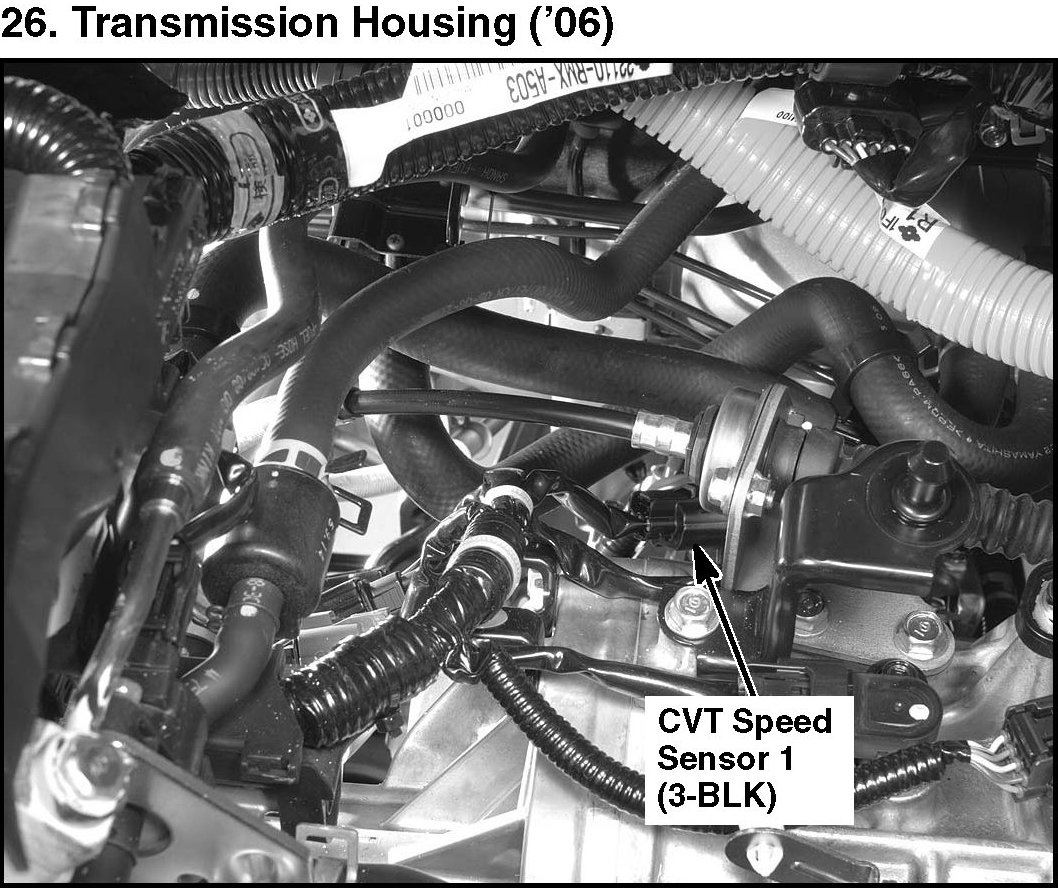

26. Transmission Housing ('06):

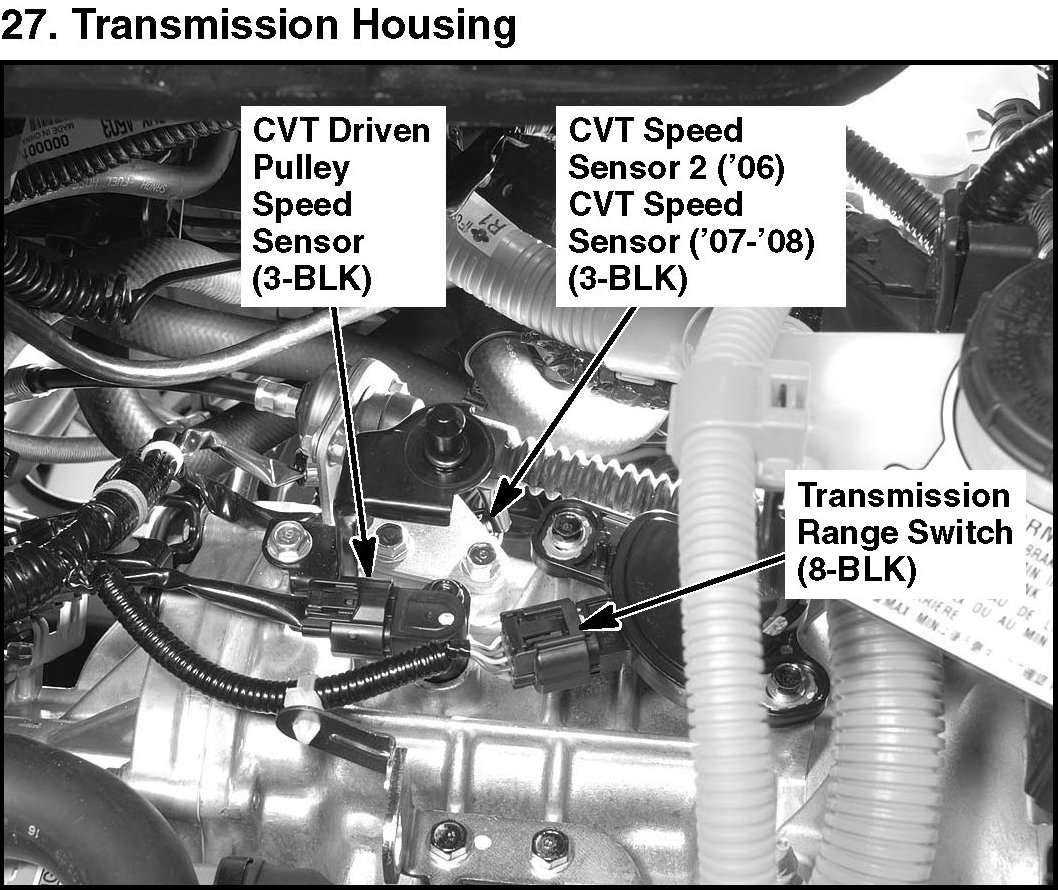

27. Transmission Housing:
