Secondary Injector Control Module: Service and Repair

Injector Control Module Replacement

1. Remove the passenger's dashboard under cover.
2. Remove the right kick panel.

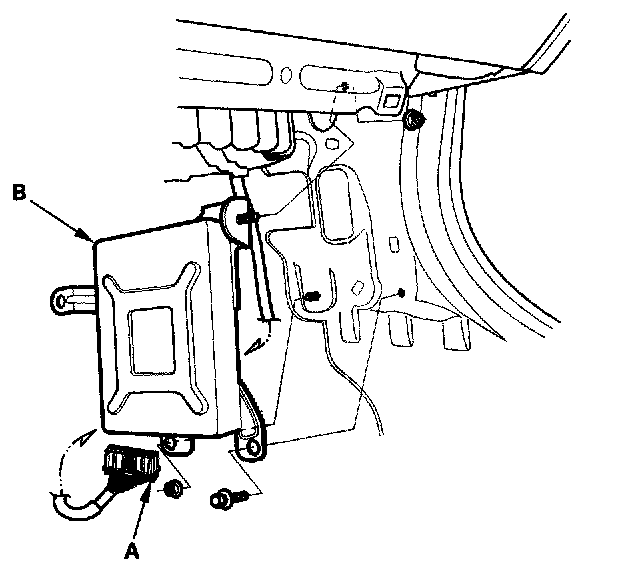

3. Disconnect the injector control module connector (A).
4. Remove the injector control module (B).
5. Install the module in the reverse order of removal.
