Control Assembly: Locations

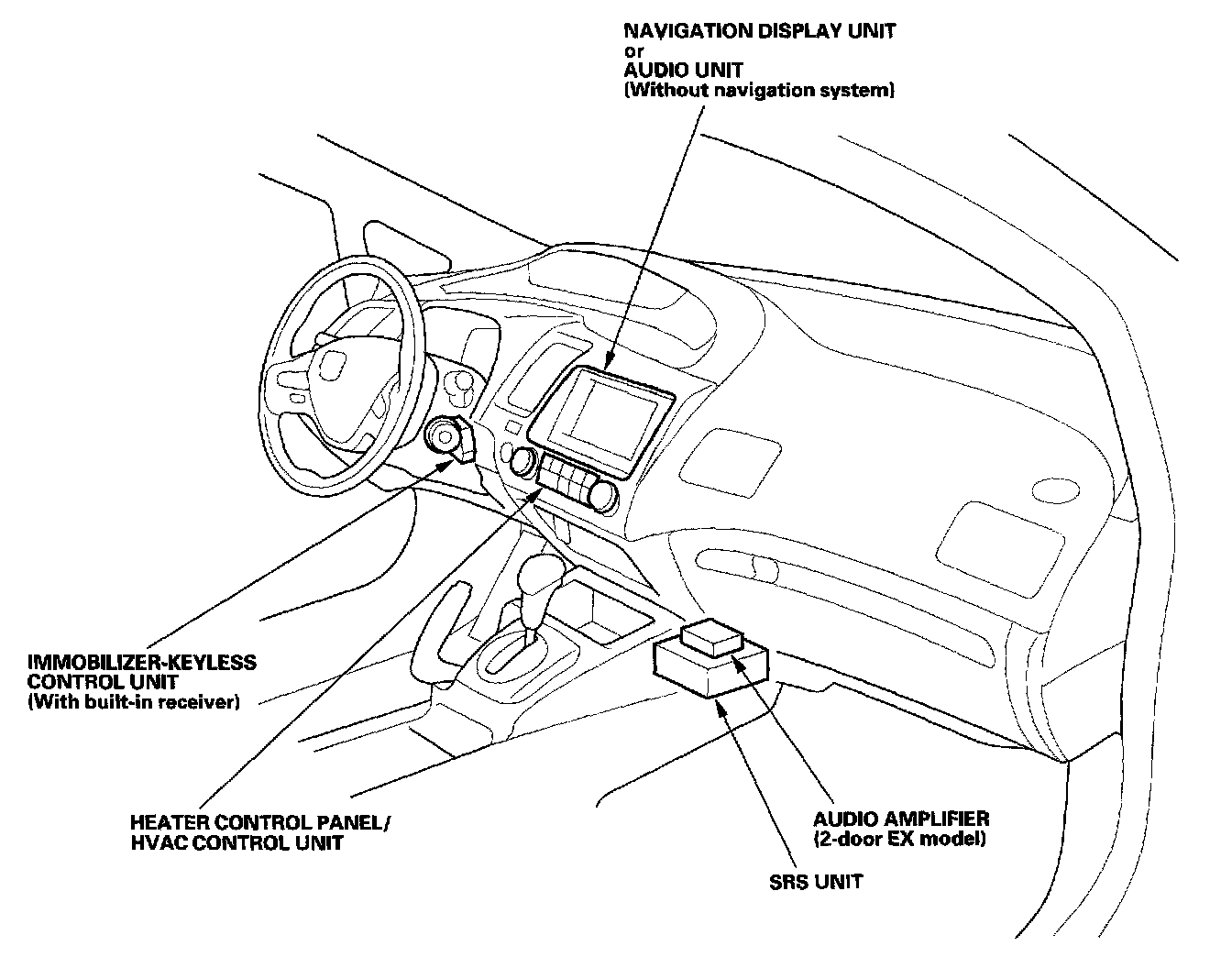

Relay And Control Unit Locations - Dashboard Part 2:

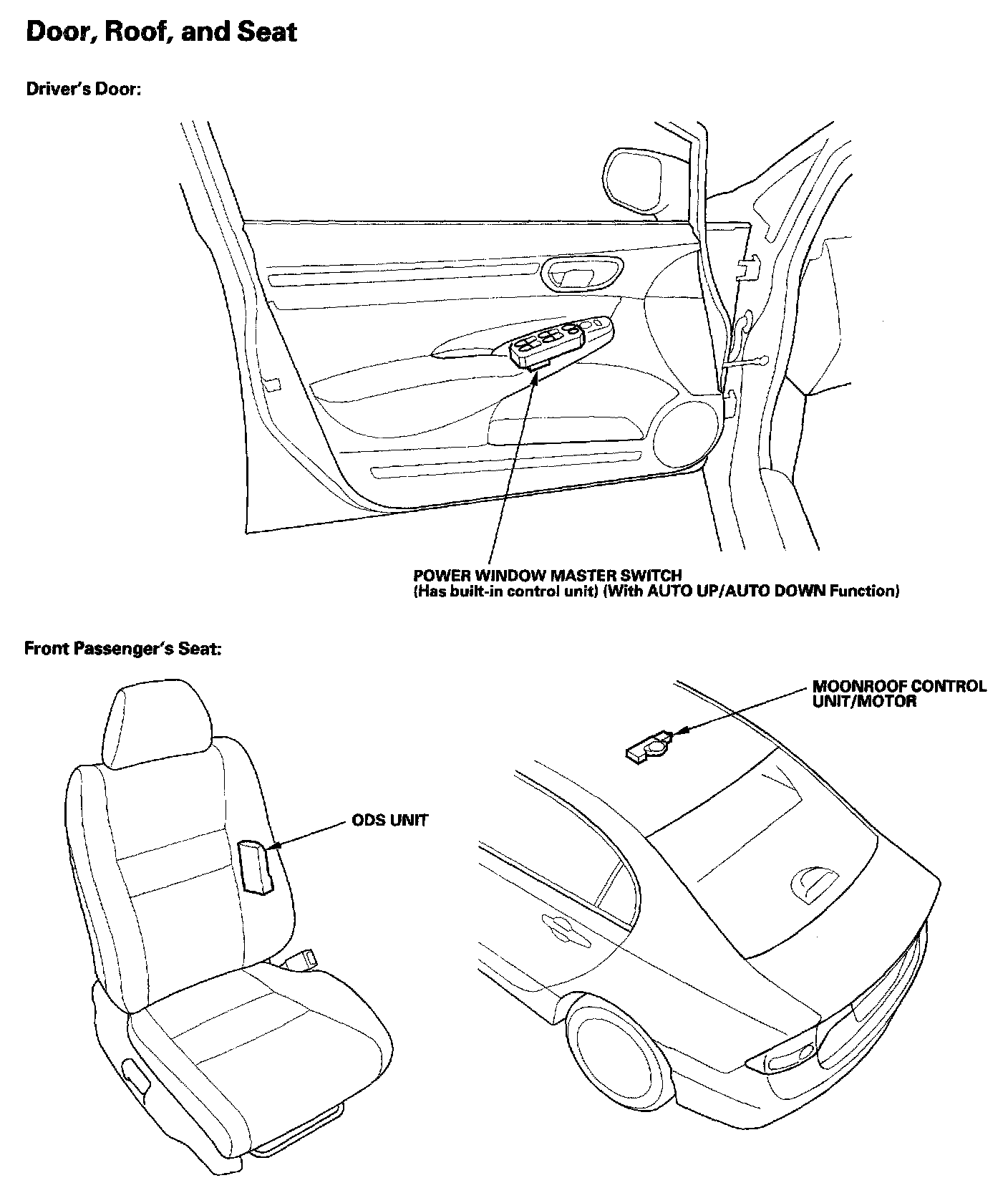

Relay And Control Unit Locations - Door, Roof, And Seat:

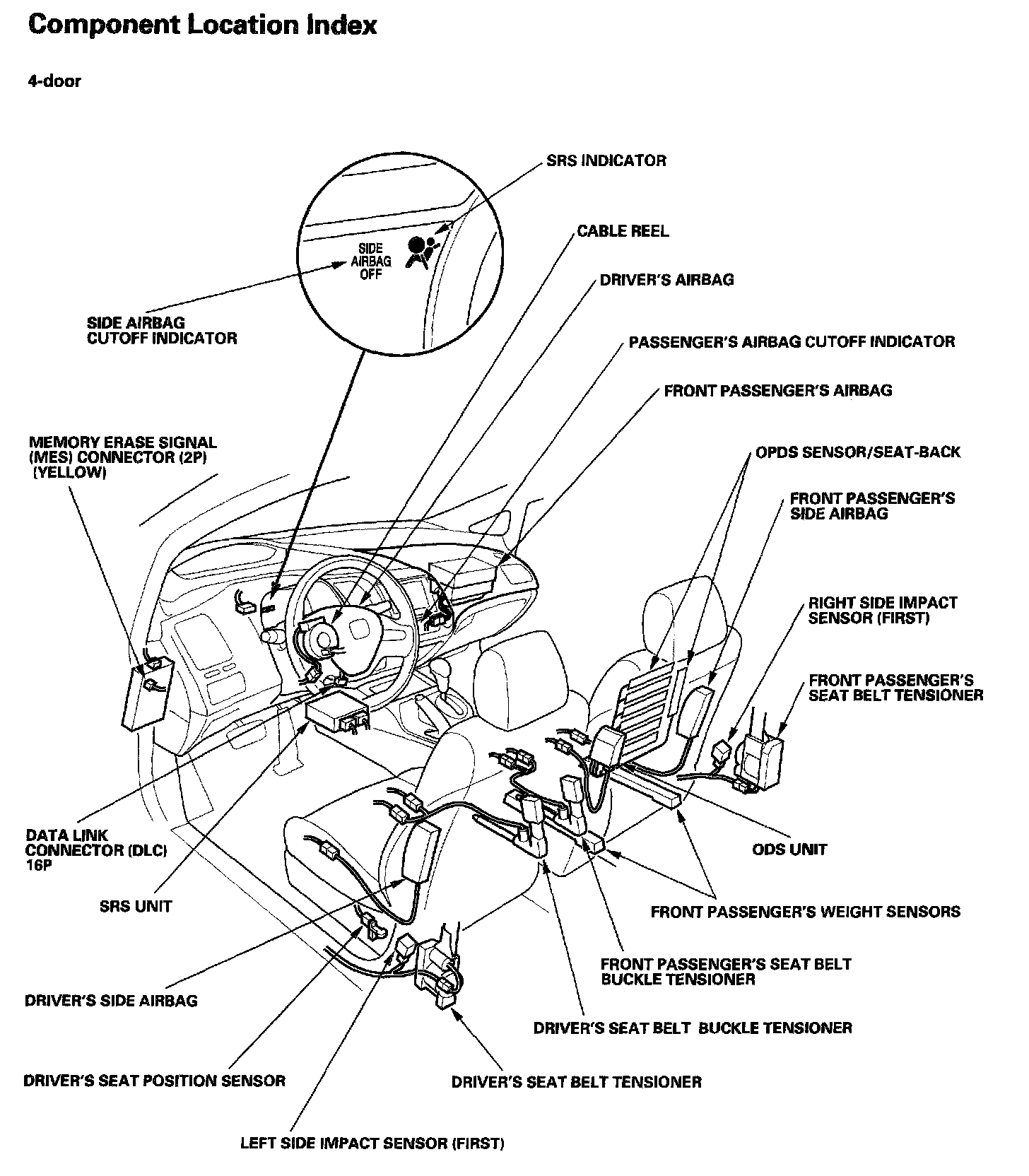

SRS - Component Location Index:

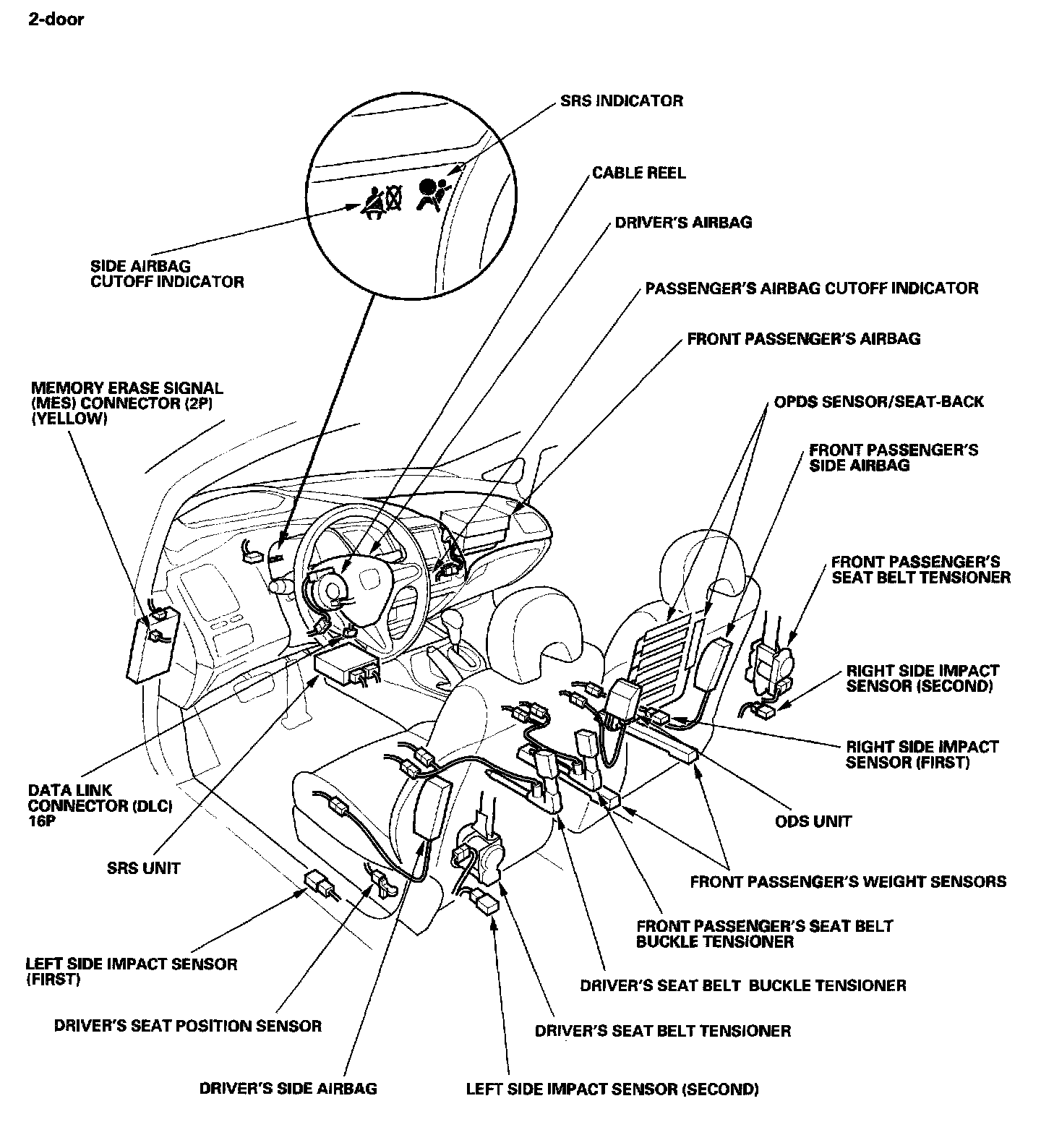

SRS - Component Location Index:

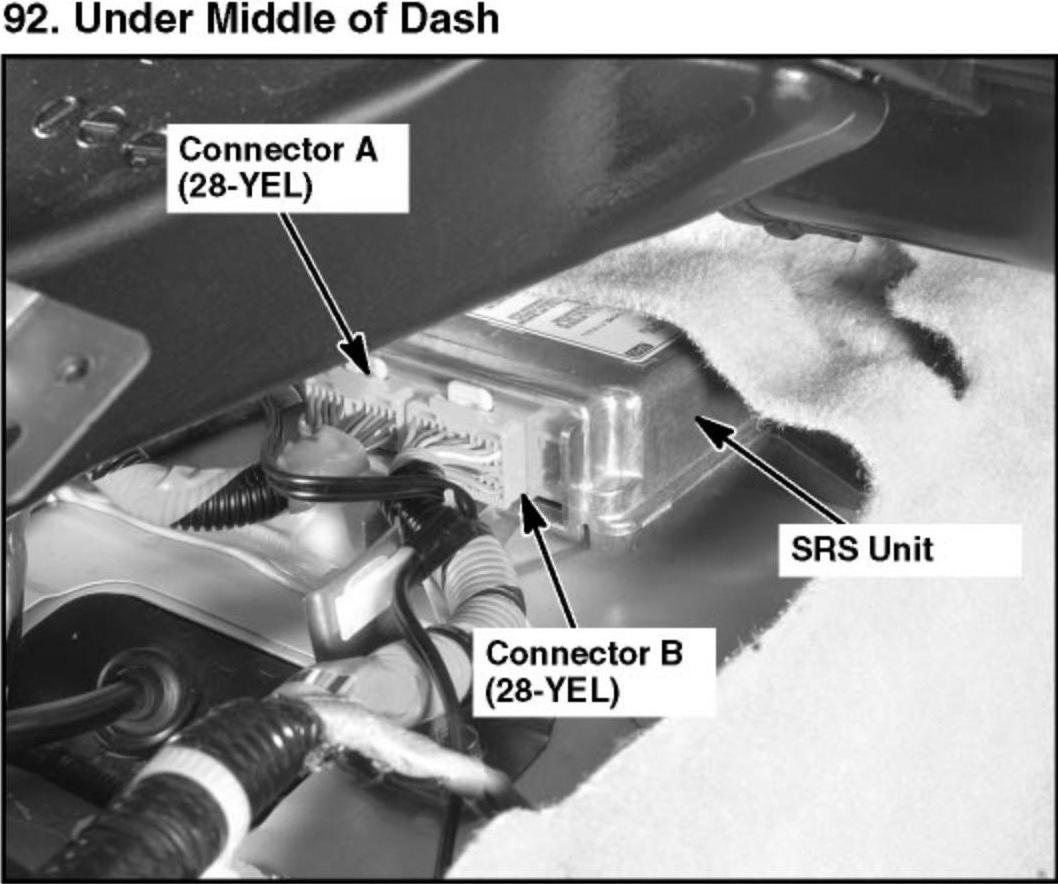

92. Under Middle of Dash:

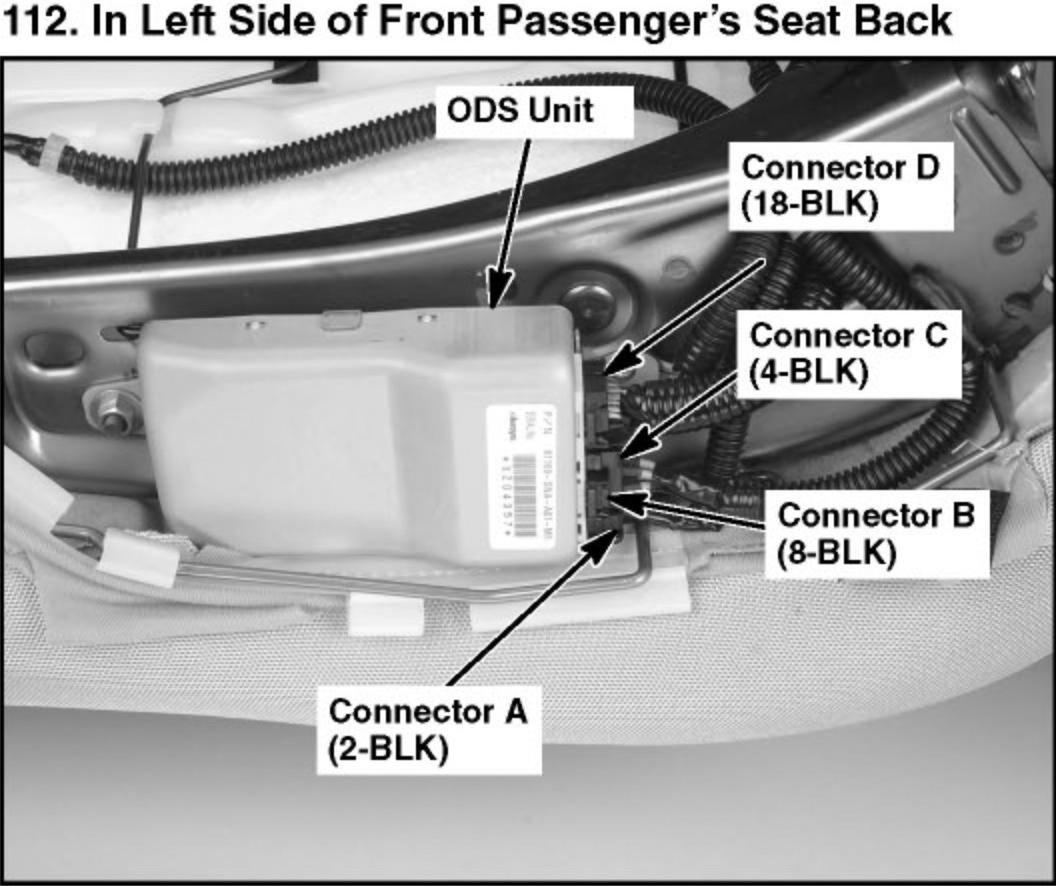

112. In Left Side of Front Passenger's Seat Back:
