CMP Pulse Plate Removal and Installation

CMP Pulse Plate Removal and Installation
Removal
1. Remove the air cleaner housing assembly.

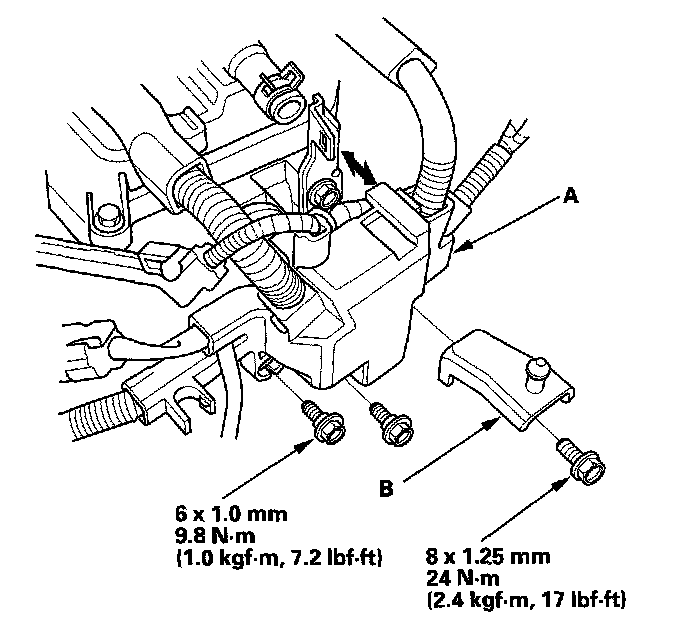

2. Remove the air cleaner housing bracket (A), then remove the harness holder (B) from the cylinder head.
3. Remove the rocker arm assembly.





4. Remove the camshaft thrust cover.





5. Hold the camshaft with an open-end wrench, then loosen the bolt.





6. Remove the camshaft position (CMP) pulse plate.

Installation





1. Install the CMP pulse plate.





2. Hold the camshaft with an open-end wrench, then tighten the bolt.





3. Install the camshaft thrust cover (A), use a new O-ring (B).
4. Install the rocker arm assembly.





5. Install the harness holder (A) on the cylinder head, then Install the air cleaner housing bracket (B).
6. Install the air cleaner housing assembly.
