Connecting Rod, Engine

Rod Bearing Cap
Tighten the connecting rod bolts to 20 Nm (2.0 kgf-m, 14 ft. lbs.).

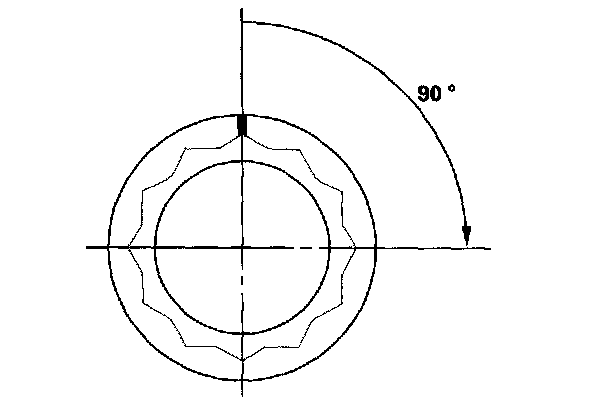

Tighten the connecting rod bolts an additional 90°.

NOTE: Remove the connecting rod bolt if you tightened it beyond the specified angle, and go back to step 9 of the procedure. Do not loosen it back to the specified angle.

Connecting Rod
Pin-to-rod clearance
Standard or New 0.005 - 0.015 mm (0.0002 - 0.0006 inch)
Service Limit 0.02 mm (0.0008 inch)
Small-end bore diameter 19.969 - 19.975 mm (0.7862 - 0.7864 inch)
Large-end bore diameter 48.0 mm (1.89 inch)
End play installed on crankshaft
Standard or New 0.15 - 0.35 mm (0.006 - 0.014 inch)
Service Limit 0.45 mm (0.018 inch)
